Risks of damage to the components!
Only operate the components in their allowed mounting modes.
Allowed mounting mode of the components:
Only the mounting mode G1 is allowed for EFC 3600. Please refer to the figure
below.
a Mounting surface
g Direction of gravitational force
G1 Normal mounting mode. The natural
convection supports the forced cooling
air current. This avoids the generation of
pockets of heat in the component.
G2 180° to normal mounting mode
G3 Turned by 90° from vertical to horizontal
mounting mode
G4 Bottom mounting; mounting surface on
bottom of control cabinet
G5 Top mounting; mounting surface at top
of control cabinet

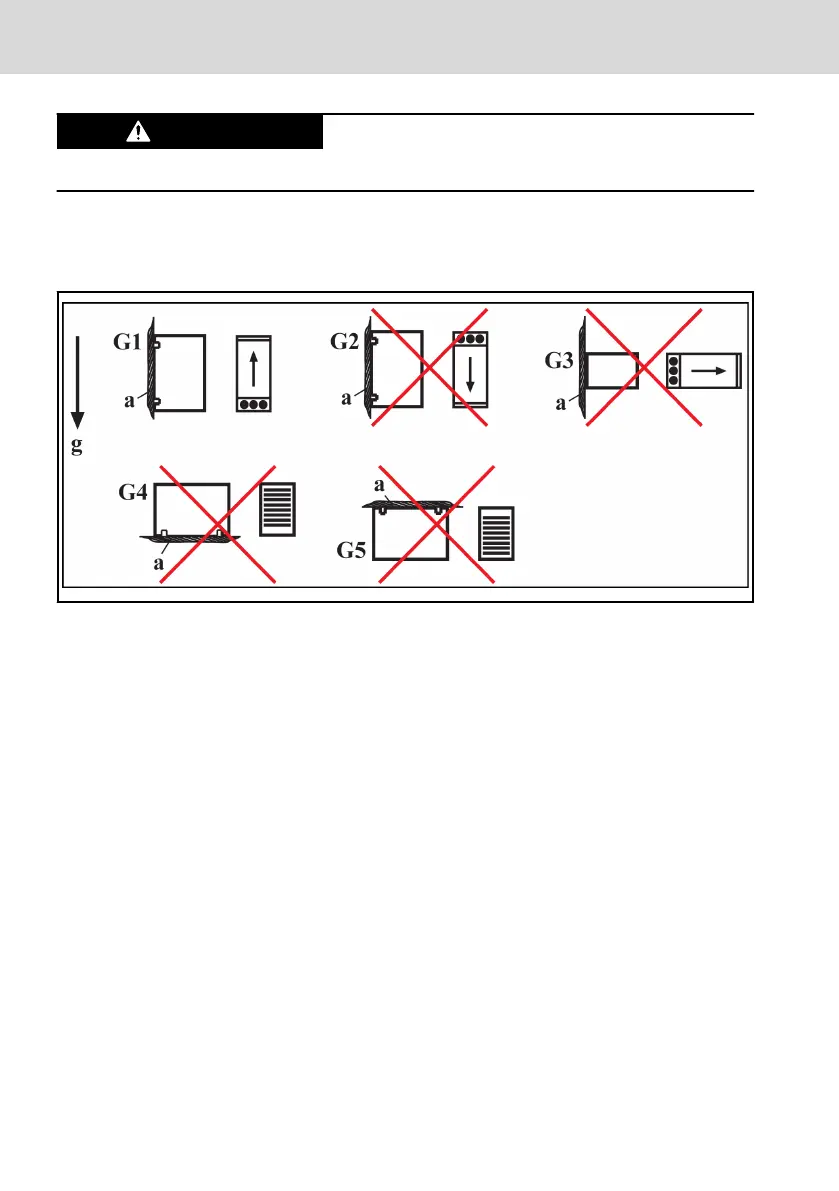

Fig. 5-4: Frequency converter mounting mode
