Recommended opening dimensions at control cabinet

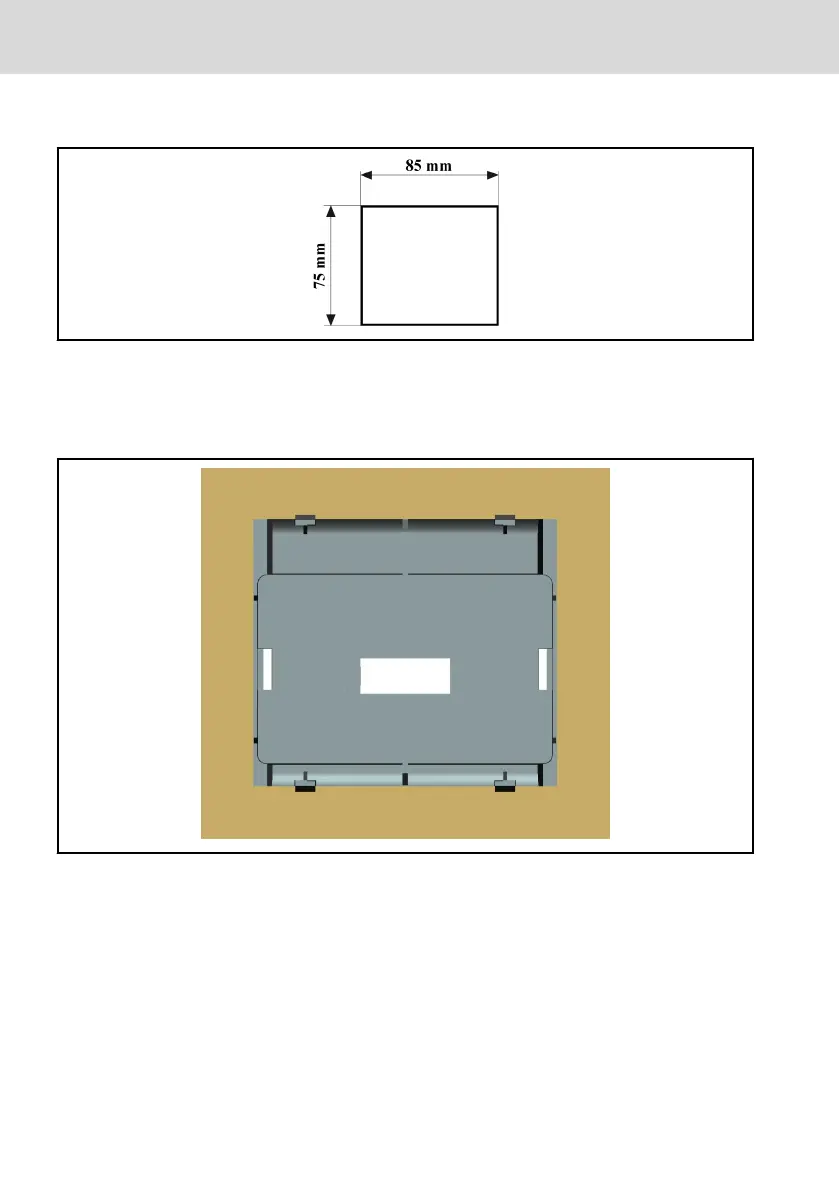

Fig. 12-14: Recommended opening dimensions at control cabinet
Mounting the plate and the operating panel
Step 1: Push the mounting plate into the opening in the direction perpendicular
to the control cabinet, the back view is as below.
Fig. 12-15: Push the mounting plate into the opening
Step 2: Fix the mounting plate with a metal bar and 2 M4x8 screws, the back
view is as below.
