1.1 C3
2
nd
environment, QP, I>100 A (class
A, group 2, I>100 A)
1.2 C3
2
nd
environment, AV, I>100 A (class A,
group 2, I>100 A)
2.1 C3
2
nd
environment, QP, I≤100 A (class
A, group 2, I≤100 A)
2.2 C3
2
nd
environment, AV, I≤100 A (class A,
group 2, I≤100 A)
3.1 C2
1
st
environment, QP (1
st
environment,
even if source of interference in 2
nd
environment) (class A, group 1)
3.2 C2
1
st
environment, AV (1
st
environment,
even if source of interference in 2
nd
environment) (class A, group 1)
4.1 C1
1
st
environment, QP (1
st
environment,
even if source of interference in 2
nd
environment) (class B, group 1)
4.2 C1
1
st
environment, AV (1
st
environment,
even if source of interference in 2
nd
environment) (class B, group 1)

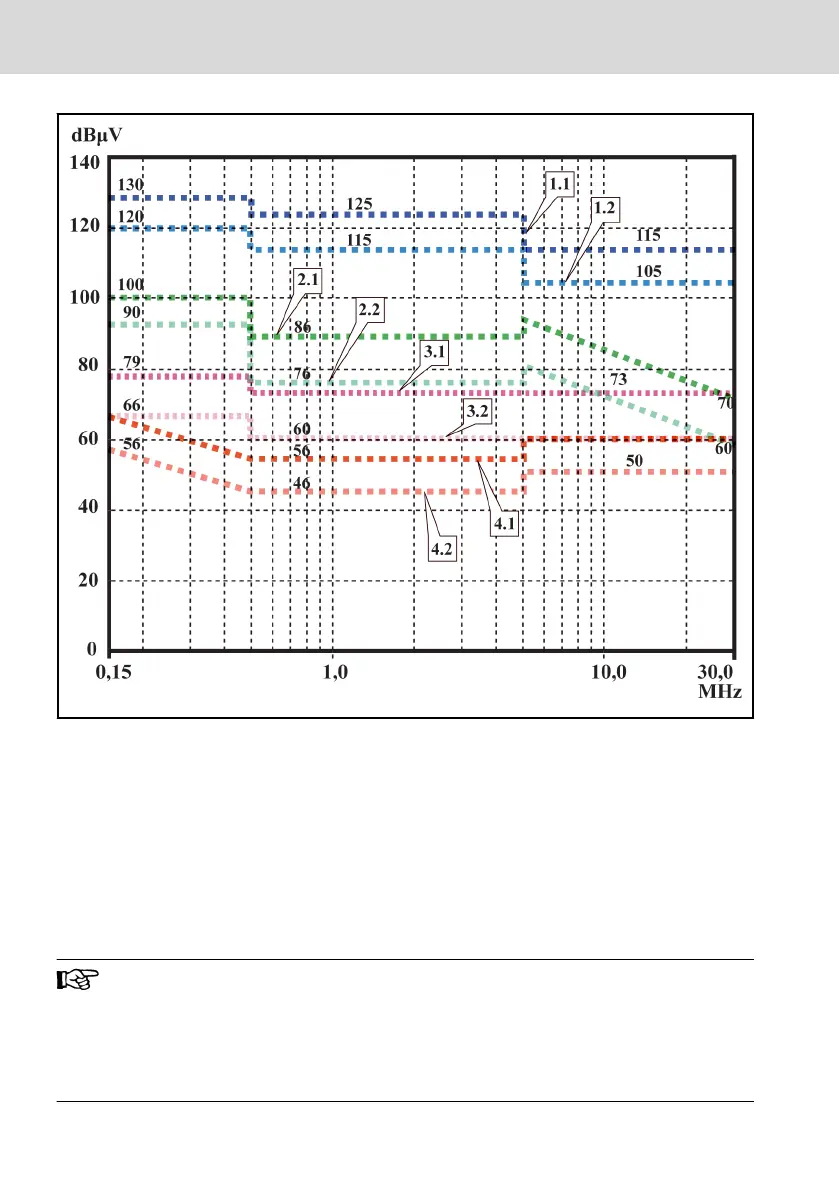

Fig. 11-2: Limit values for line-based disturbances (IEC 61800-3); limit characteristic through
frequency range
● Limit value for 1
st
environment is also relevant, if source of
interference of 2
nd
environment affects 1
st
environment.
● Designations “class” and “group” according to CISPR 11.
● QP: measuring method quasi peak measurement.
● AV: measuring method arithmetic averaging.
