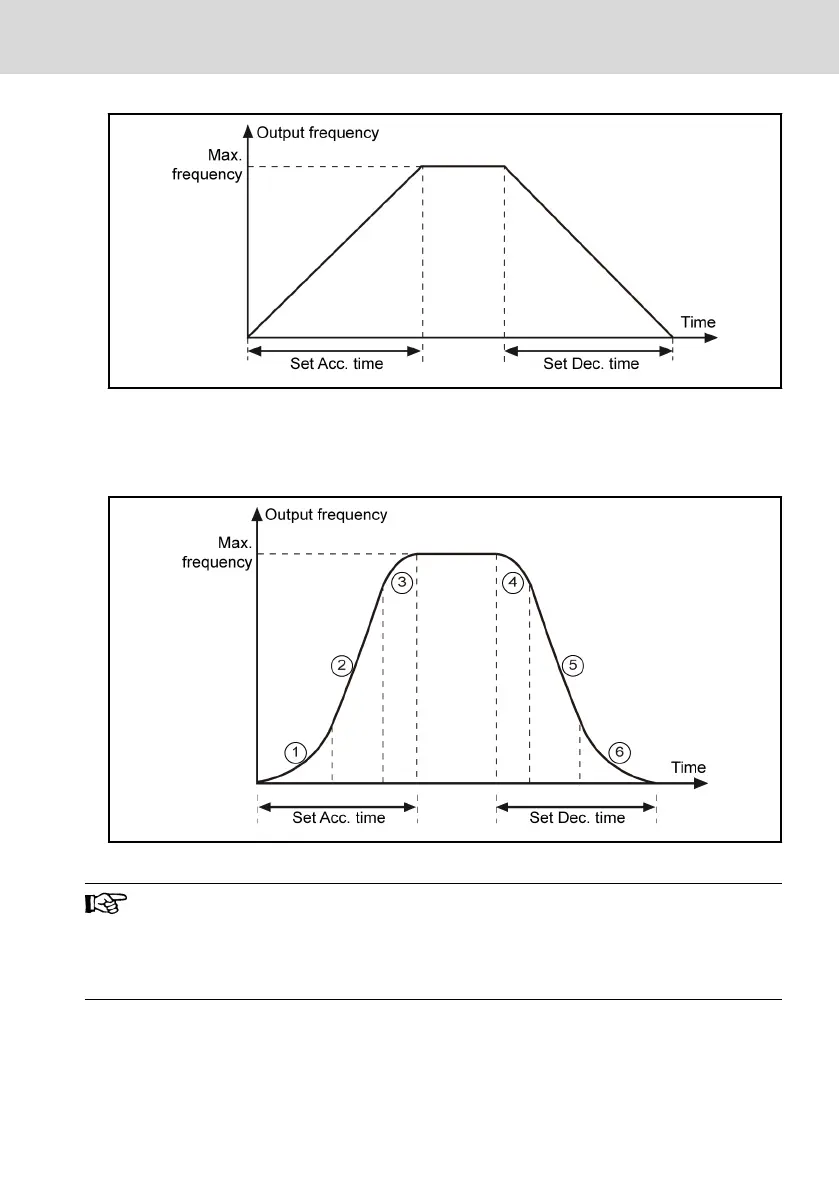

Fig. 8-6: Linear mode
● [b1.22]=1: S-curve
The output frequency is increased or decreased in an S-curve (the S-curve
mode is used to achieve smooth start or stop) as shown in figure below.
Fig. 8-7: S-curve
– Stage ① is defined by b1.23 with percent of acceleration time.
– Stage ④ is defined by b1.23 with percent of deceleration time.
– Stage ③ is defined by b1.24 with percent of acceleration time.
– Stage ⑥ is defined by b1.24 with percent of deceleration time.
EFC 3600 Bosch Rexroth AG
Parameter Settings
DOK-RCON03-EFC-3600***-IT03-EN-P
61/259
