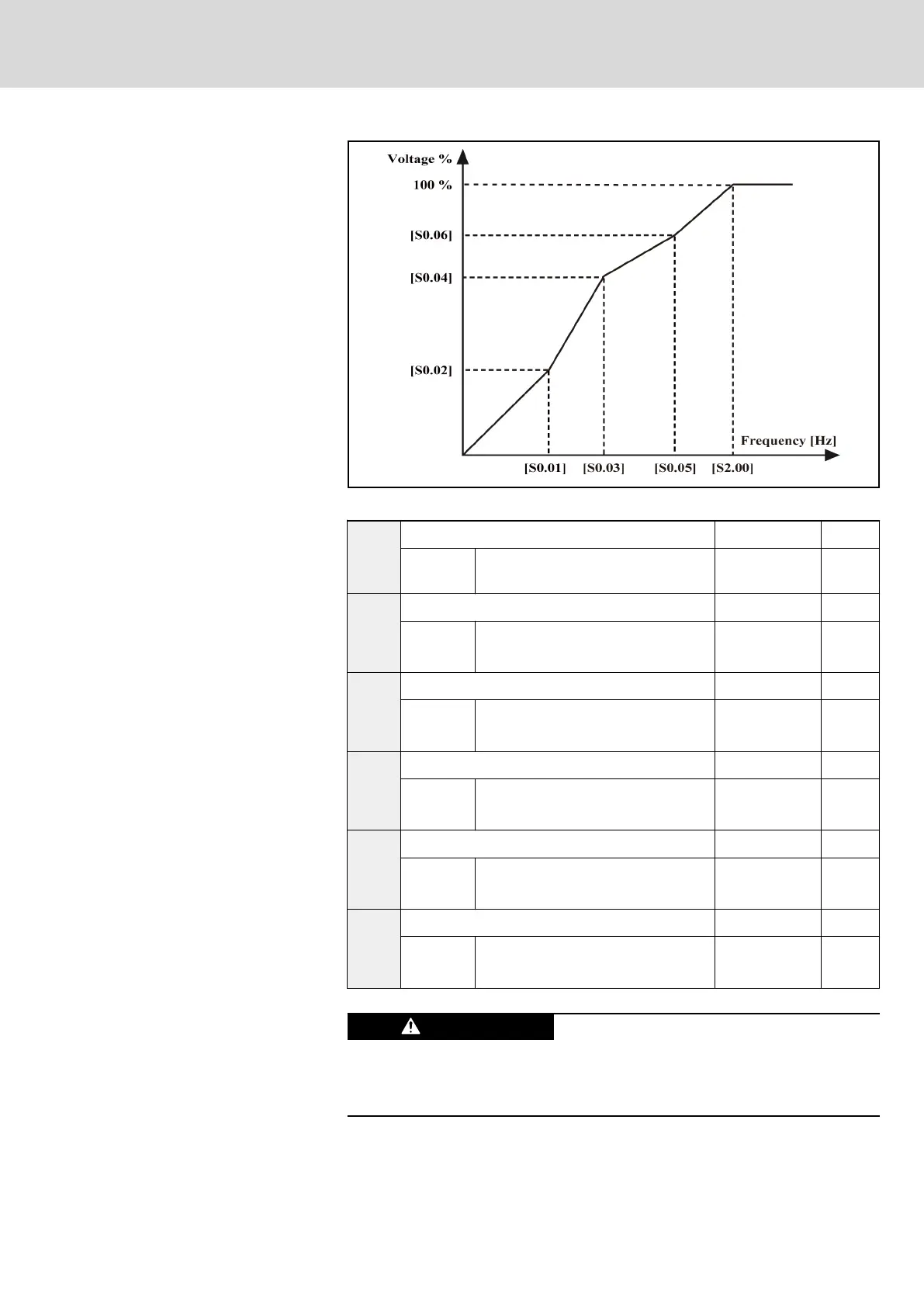

Fig. 7-18: User defined V/F curve
S0.01
V/F frequency 1 Factory default 0.00
Setting
range
0.00...[S0.03] Hz Minimum unit 0.01
S0.02
V/F voltage 1 Factory default 0.0
Setting
range
0.0...120.0 %
(of ‘Rated motor voltage’ [S2.03])
Minimum unit 0.1
S0.03
V/F frequency 2 Factory default 0.00
Setting
range
[S0.01]...[S0.05] Hz Minimum unit 0.01
S0.04
V/F voltage 2 Factory default 0.0
Setting
range
0.00...120.0 %
(of ‘Rated motor voltage’ [S2.03])
Minimum unit 0.1
S0.05
V/F frequency 3 Factory default 0.00
Setting
range
[S0.03]...[b1.05] Hz Minimum unit 0.01
S0.06
V/F voltage 3 Factory default 0.0
Setting
range
0.00...120.0 %
(of ‘Rated motor voltage’ [S2.03])
Minimum unit 0.1
CAUTION
Excessive low-frequency voltages may cause the motor to overheat or result
in motor damage. The frequency converter may stall due to over current or
may activate over current protection!
DOK-RCON02-FV*********-IB08-EN-P Bosch Rexroth AG 115/259
Rexroth Frequency Converter Fv
Parameter Settings
