10.3 Encoder Adapter
10.3.1 The Function of Encoder Adapter
The encoder adapter is used to improve the precision of speed sampling
when +12 V or +24 V supply voltage is used for the encoder, no matter inter‐
nal or external supply.
10.3.2 Encoder Adapter Dimensions

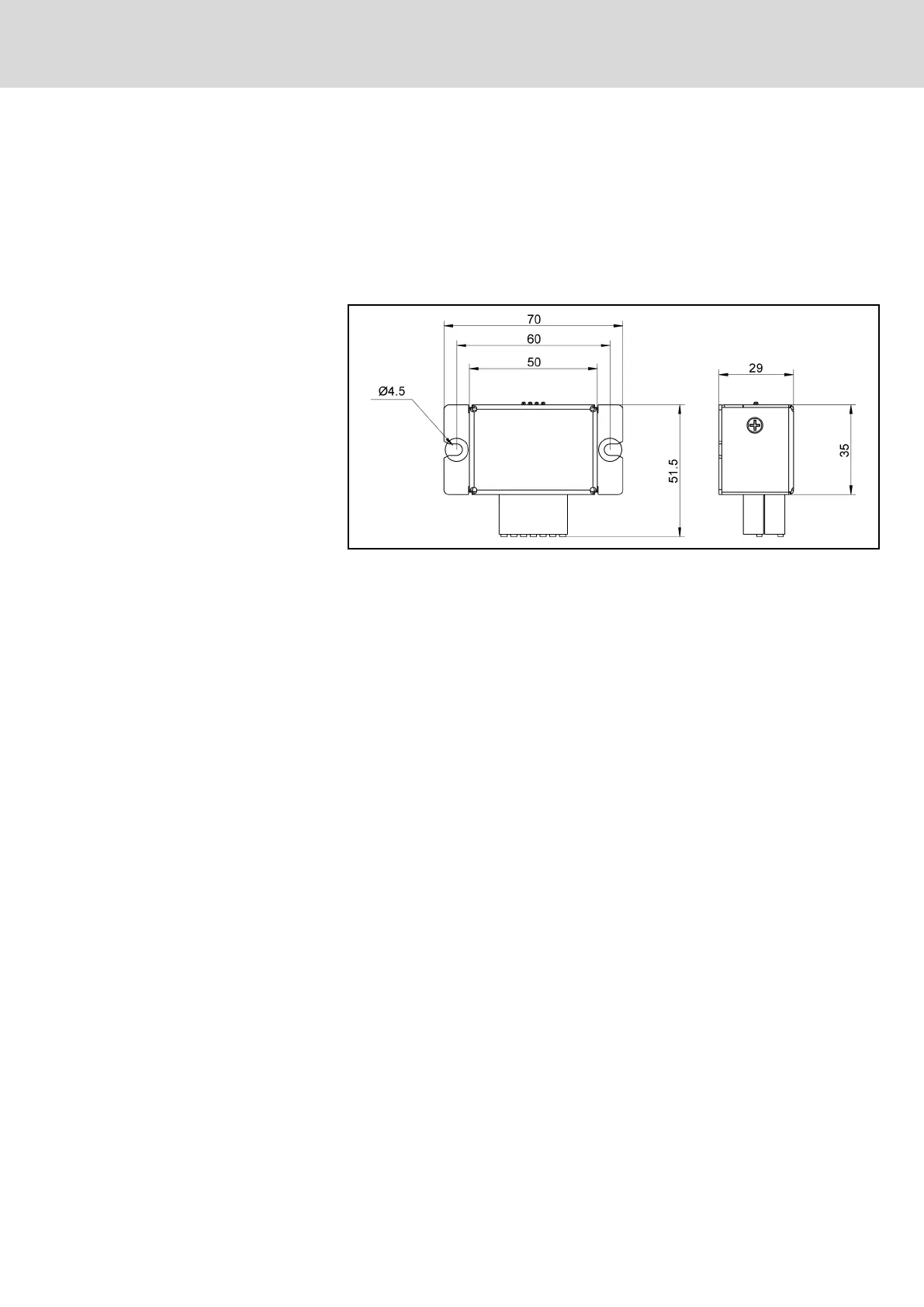

Fig. 10-18: Encoder adapter dimensions
DOK-RCON02-FV*********-IB08-EN-P Bosch Rexroth AG 209/259
Rexroth Frequency Converter Fv
Accessories
