10.4 PROFIBUS Adapter
The PROFIBUS adapter (FVAA01.2-P-NNNN-01V01) is used to convert Fv
serial RS485 interface (Modbus) to PROFIBUS DP standard.
Please refer to chapter 12 "Communication Protocols" on page 217.
10.5 Accessories for Control Cabinet Mounting
10.5.1 Remote Operation
The operating panel is mounted at the control cabinet. The user can operate
the frequency converter from the outside of the control cabinet conveniently.
To realize this function, the user needs order the remote operation adapter
(FVAM) and its accessories additionally.
Replace the operating panel with
the remote operation adapter
Remove operating panel from the frequency converter and place the remote
operation adapter instead.
Recommended opening dimen‐
sions at control cabinet

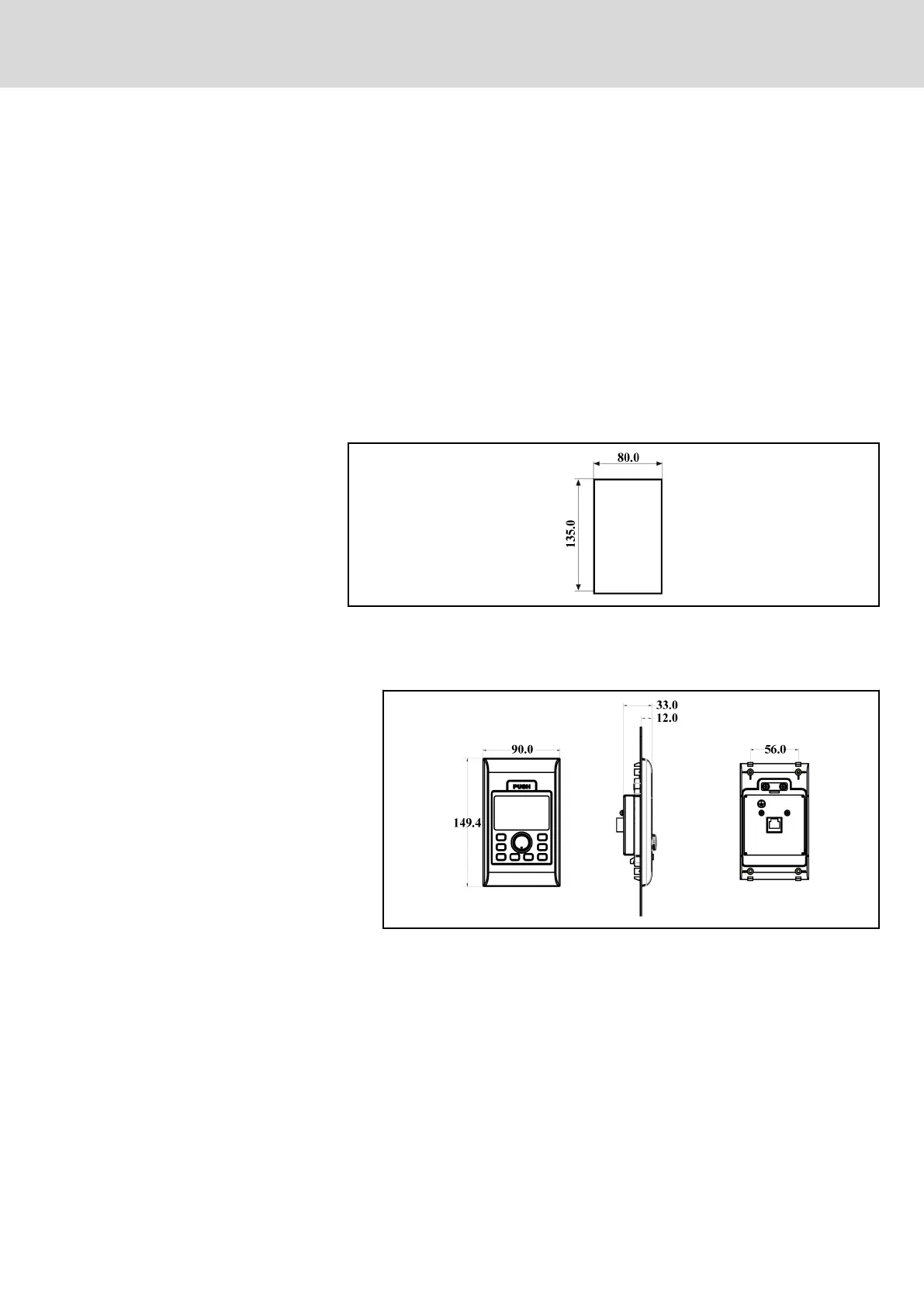

Fig. 10-21: Recommended opening dimensions at control cabinet
Direct mounting of operating panel
at the control cabinet with mount‐
ing plate
● When the opening dimensions at the control cabinet are in compliance
with the recommendation, the operating panel can be mounted directly
at the control cabinet with the mounting plate buckles.
Fig. 10-22: Direct mounting of operating panel at the control cabinet with
mounting plate
Mounting of operating panel at the
control cabinet with mounting plate
and fixing metal strips
● When the opening dimensions are larger than the recommendations, 2
fixing metal strips and 4 M4x10 screws are necessary to fix the mount‐
ing plate. Please refer to figures below for detailed information.
DOK-RCON02-FV*********-IB08-EN-P Bosch Rexroth AG 211/259
Rexroth Frequency Converter Fv
Accessories
