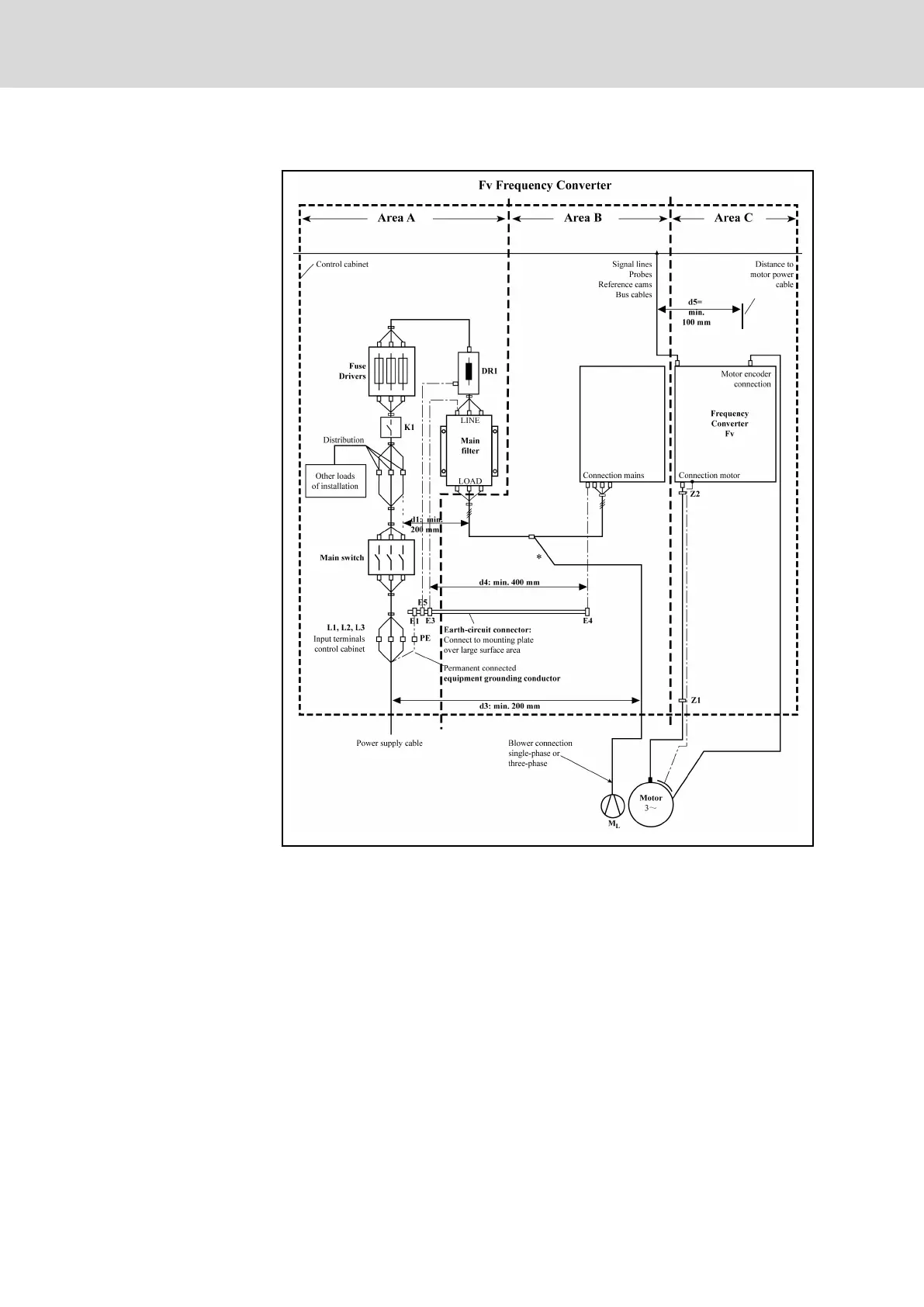

Control cabinet mounting according to interference areas – exemplary arrangements
DR1 Mains choke (optional)
E1…E5 Equipment grounding conductor or the components
K1 External mains contactor
M
L
Motor blower
Z1, Z2 Shield connection points for cables
Fig. 9-6: Control Cabinet Mounting According to Interference Areas – Exempla‐
ry Arrangements
Bosch Rexroth AG DOK-RCON02-FV*********-IB08-EN-P184/259
