6 Commissioning
6.1 Operating Panel
6.1.1 Overview
The operating panel is at the center of the frequency converter and com‐
posed of two areas: display and keys. The display shows mode settings and
operation state of the frequency converter. The keys allow the user to pro‐
gram the frequency converter.

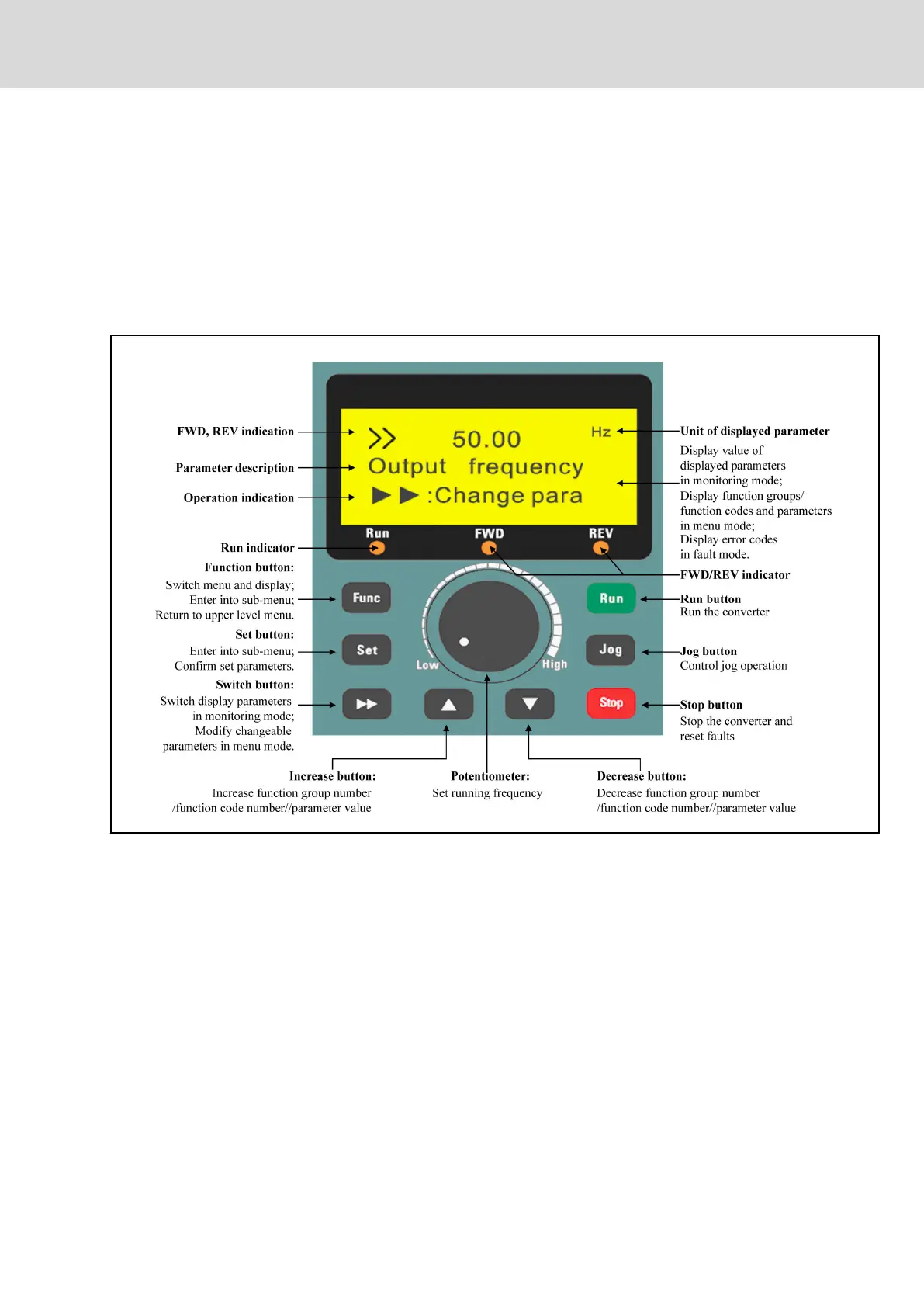

Fig. 6-1: Fv operating panel
