To select an appropriate fuse, please refer to chapter 5.2.4 "Ca‐
ble and Fuse Dimensions" on page 49.
Main circuit wiring steps

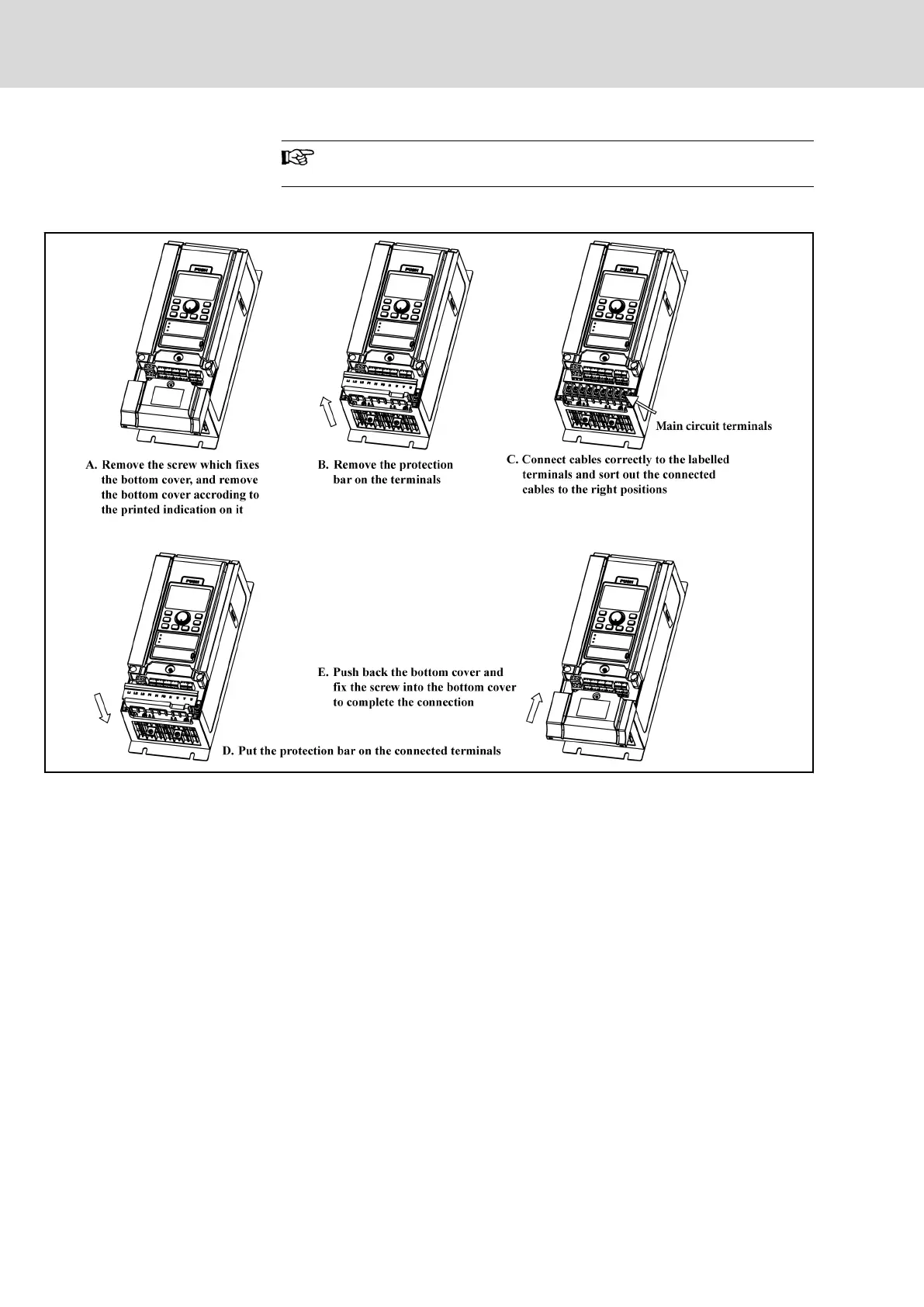

Fig. 5-7: 0K40...15K0 main circuit wiring steps
Bosch Rexroth AG DOK-RCON02-FV*********-IB08-EN-P46/259
Rexroth Frequency Converter Fv
Installation
To Next Page
