5.1.2 Removal and Mounting of Adapter
Removal of adapter
To remove the adapter, the panel needs to be removed first according to
chapter 5.1.1 "Removal and Mounting of Operating Panel" on page 41.

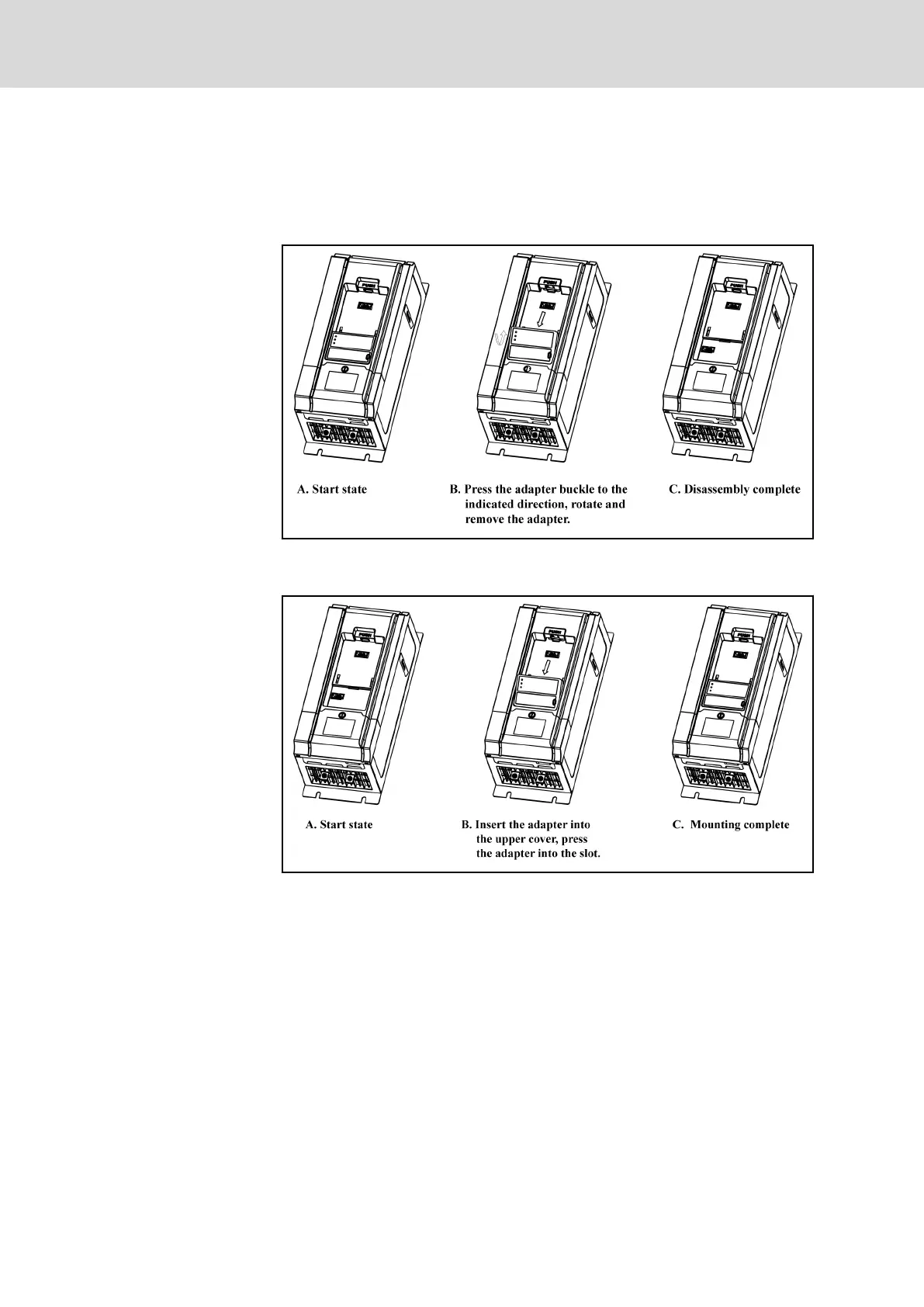

Fig. 5-3: Removal of adapter
Mounting of adapter
Fig. 5-4: Mounting of adapter
