Group S3: Control parameters
S3.00
Jog frequency Factory default 5.00
Setting range 0.00...[b1.05] Hz Minimum unit 0.01
S3.01 Jog acceleration time Factory default 5.0
S3.02
Setting range 0.1...3,600.0 s Minimum unit 0.1
Jog deceleration time Factory default 5.0
Setting range 0.1...3,600.0 s Minimum unit 0.1
● Parameter S3.00 is used to set jog frequency.
● Parameters S3.01 and S3.02 are used to define the jog acceleration
and deceleration time, as shown in figure below.

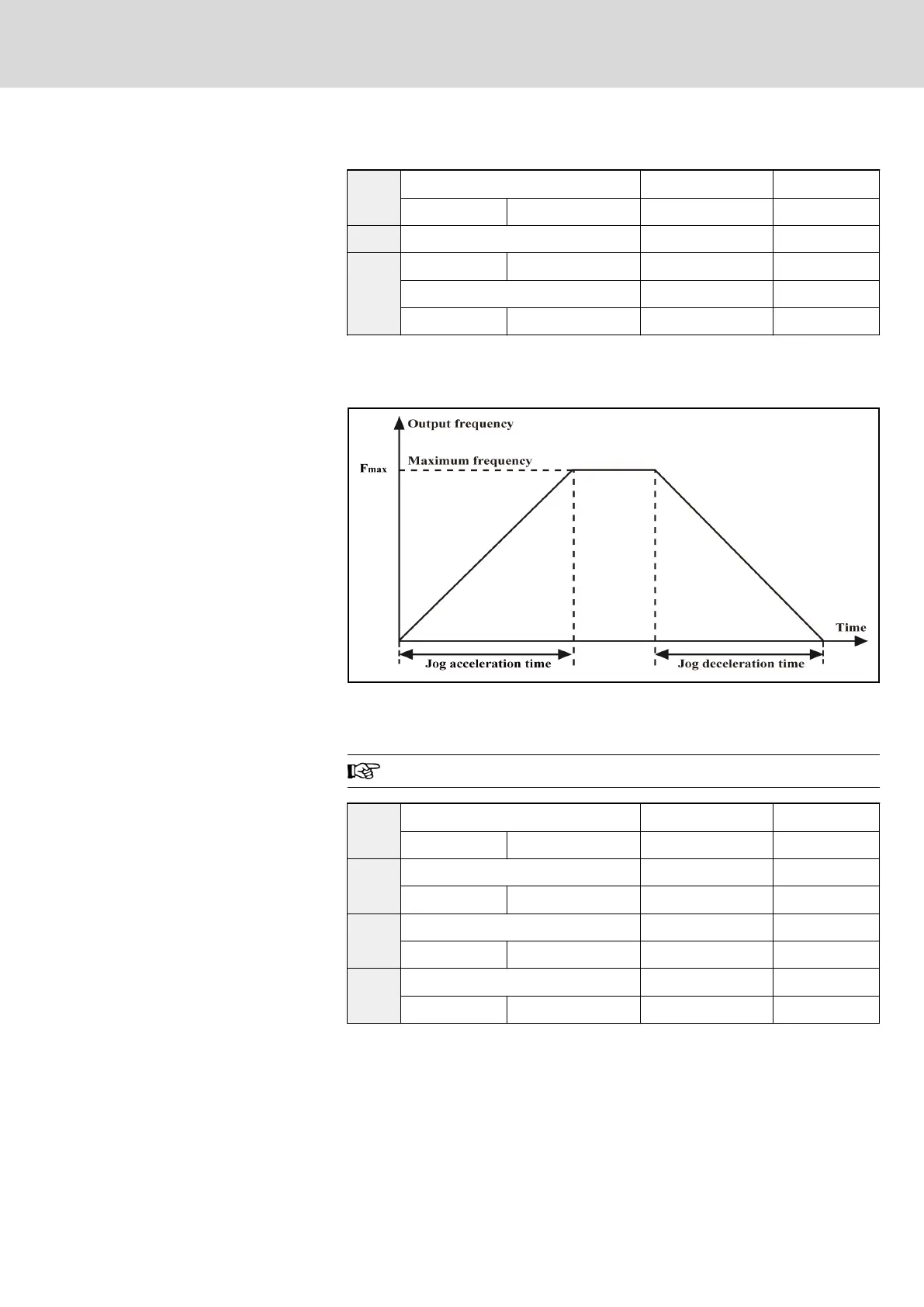

Fig. 7-23: Jog frequency setting
● The frequency converter allows jog when power is on. Jog can be set by
operating panel or external computer.
Jog is deactivated in torque control mode.
S3.03
Skip frequency 1 Factory default 0.00
Setting range [b1.07]...[b1.06] Hz Minimum unit 0.01
S3.04
Skip frequency 2 Factory default 0.00
Setting range [b1.07]...[b1.06] Hz Minimum unit 0.01
S3.05
Skip frequency 3 Factory default 0.00
Setting range [b1.07]...[b1.06] Hz Minimum unit 0.01
S3.06
Skip frequency range Factory default 0.00
Setting range 0.00...30.00 Hz Minimum unit 0.01
● Three skip frequencies may be set to avoid mechanical resonance
points
– If the output frequency falls within the skip frequency range, the
output frequency will be automatically set to the upper or lower limit
of the skip frequency range.
– If no skip frequency is used, the skip frequency range needs to be
set as 0.00 Hz.
DOK-RCON02-FV*********-IB08-EN-P Bosch Rexroth AG 123/259
