7.4.2 Category S: Standard Parameters
Group S0: V/F control
Parameters of group S0 are only valid when 'Control mode' [b1.03] is ‘0: V/F
control’.
S0.00
V/F mode Factory default 0
Setting range
0: Linear mode
1: Square mode
2: User-defined multipoint mode
Minimum unit 1
● 0: Linear mode
Suitable for constant torque load (shown as curve 0 in figure below)
● 1: Square mode
Suitable for variable torque loads (shown as curve 1 in figure below)

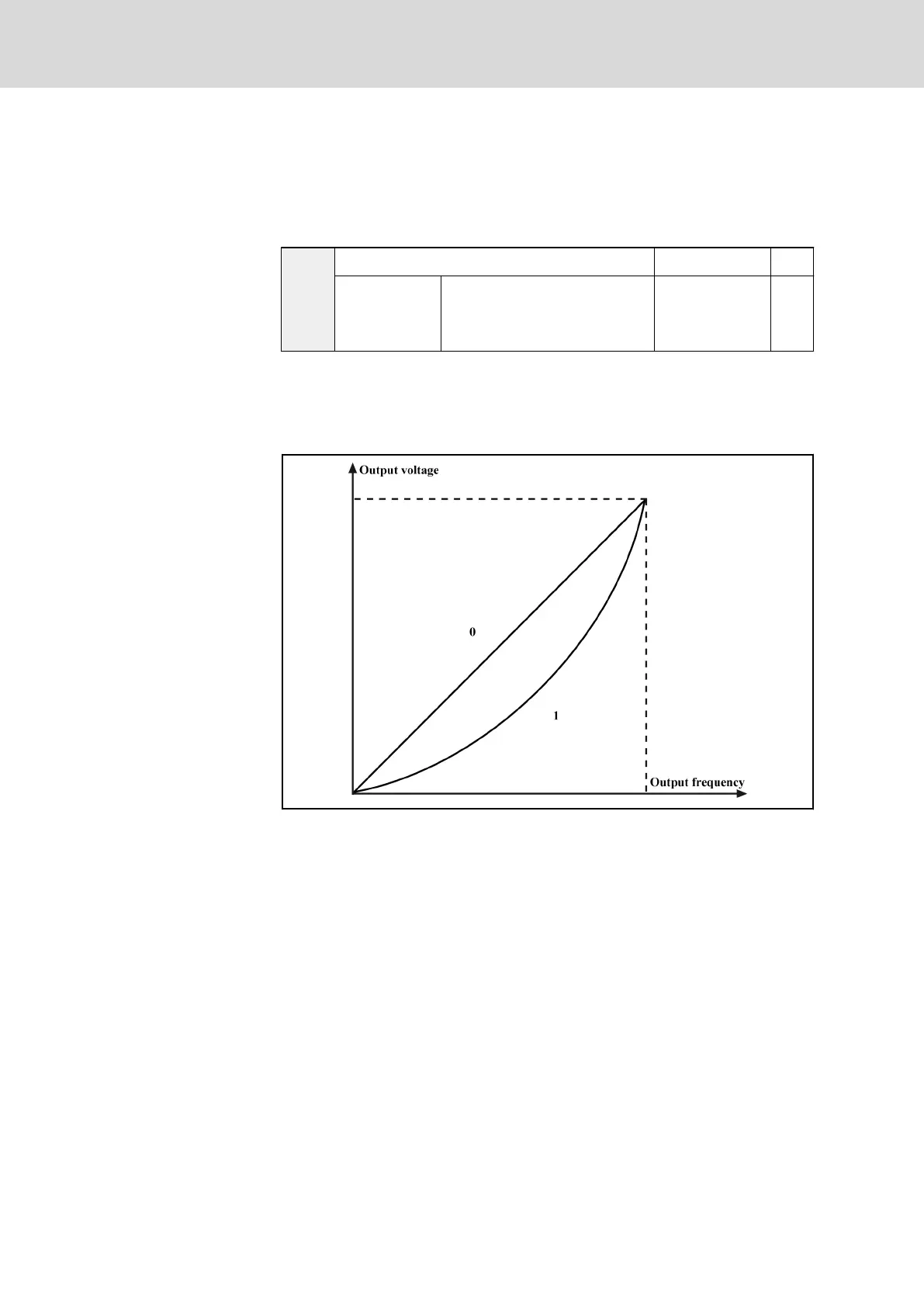

Fig. 7-17: Linear and square V/F curves
● 2: User-defined multipoint mode
Used to set a user defined V/F curve with parameters S0.01...S0.06.
Suitable for special applications (shown in figure below).
Bosch Rexroth AG DOK-RCON02-FV*********-IB08-EN-P114/259
Rexroth Frequency Converter Fv
Parameter Settings
