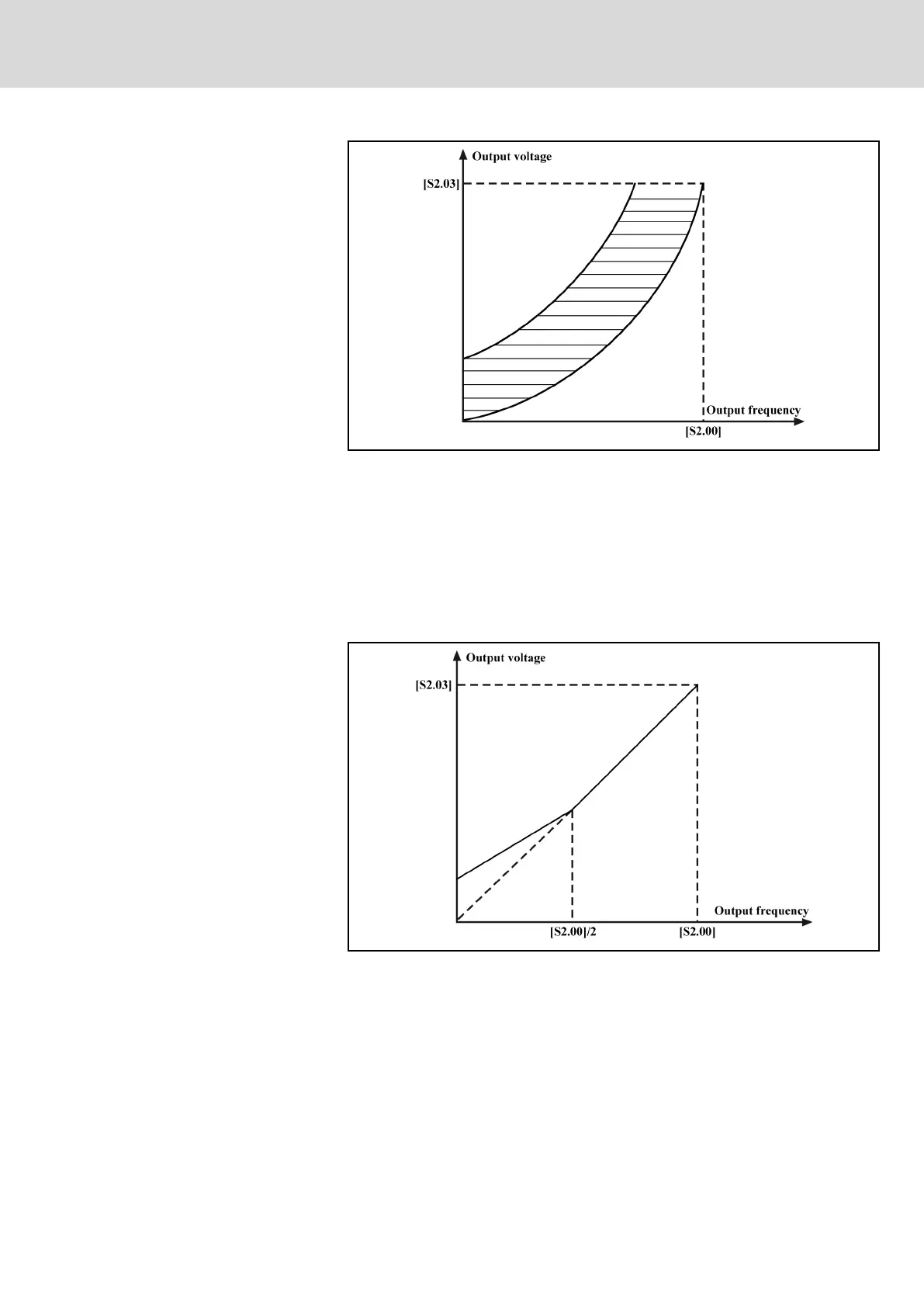

Fig. 7-20: Square V/F curve automatic torque increase
● 0.1...20.0 %: Manual increase
Used to increase the frequency converter’s output voltage and compen‐
sate the stator voltage decrease, to generate sufficient torque and im‐
prove the low-frequency torque characteristics of V/F control.
Large increase may cause high current leading to motor over heat and
may result in motor damage or frequency converter protection.
Linear and square V/F curve manual torque increase are shown in figures be‐
low.
Fig. 7-21: Linear V/F curve manual torque increase
DOK-RCON02-FV*********-IB08-EN-P Bosch Rexroth AG 117/259
