6. PROGRAM CONTROL
IMR02L04-E3
6-19
Pattern end output action at Repeat or Link
It is possible to produce Pattern end signal for 0.5 seconds (fixed) when shifting to the segment of Pattern
repeat, Total Pattern repeat or Pattern link.

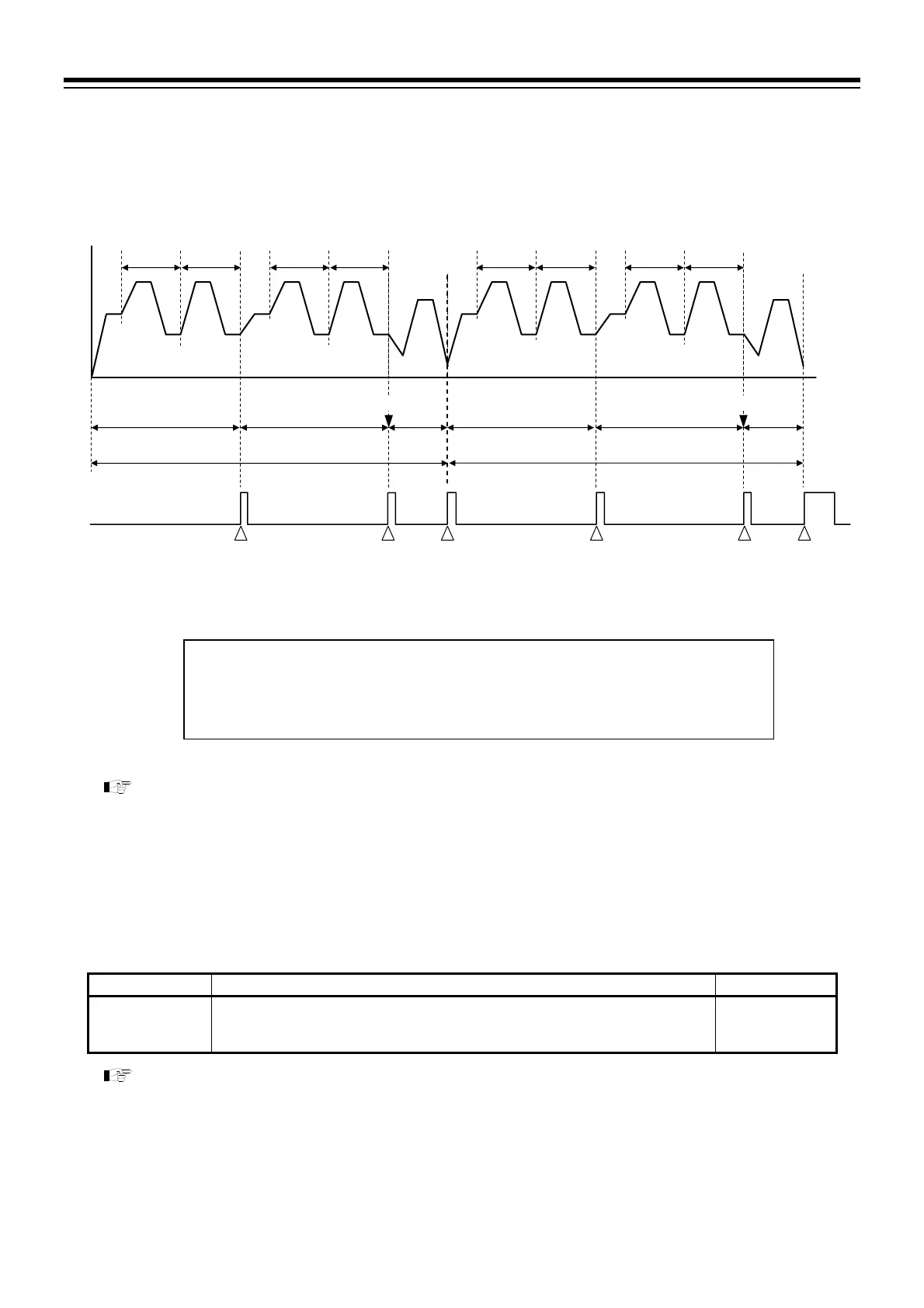

Example: Program pattern composed by Repeat function and Pattern link
For the pattern diagram above, also refer to Combination of Repeat function and Pattern link
(P. 6-15).
6.8.2 Parameter setting
Pattern end output duration [Parameter setting mode: Program setting block]
Set the duration of the Pattern end signal.
Parameter symbol Data range Factory set value
End.TM
From 0:00 to 500:00 (Hour: Minute), or
from 0:00 to 500:00 (Minute: Second)
Output remains ON at 0:00 (Hour: Minute or Minute: Second)
0 hour 00 minute
Set time unit at F80.05 in the Engineering mode. Refer to 4.5.5 Engineering mode (P. 4-43).
Continued on the next page.
: Repeating Segments from 3 to 6
B: Repeating Pattern 1
C: Pattern 2
* Repeat Total pattern (linked patterns)
A A A A
B B C
D
A A A A
B B C
D
E E
D: Linking Pattern 1 and Patten 2
E: Repeating Total pattern *
Pattern end signal
ON ON ON ON ON ON
*1 *2 *3 *1 *2 *4
*1: Pattern end signal for Pattern repeat (ON for 0.5 seconds)
*2: Pattern end signal for Pattern link (ON for 0.5 seconds)
*3: Pattern end signal for Total Pattern repeat (ON for 0.5 seconds)
*4: Pattern end signal for Pattern 2 (ON within the Pattern end output duration being set.)
