3. WIRING
IMR02L04-E3 3-11

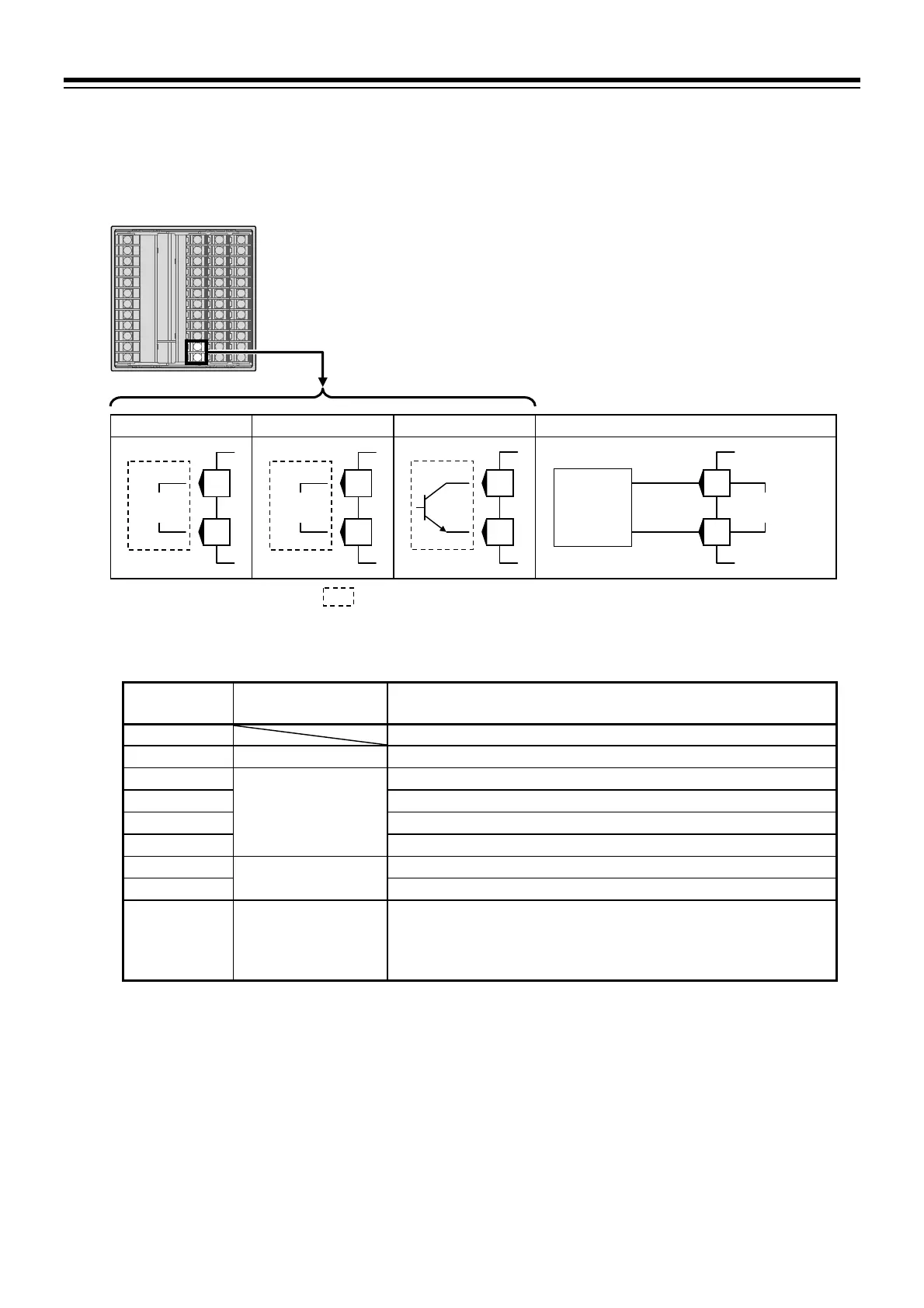

Output 3 (OUT3)
Number of outputs must be specified when ordering.
Terminal 47 and 48 are for OUT3.
Connect an appropriate load according to the output type. (Specify when ordering)
Number of outputs and output types must be specified when ordering. The specifications of each output
are as follows.
Specification
code
Output type Specifications
N
None
V
Voltage pulse
0/12 V DC (Allowable load resistance: 600 or more)
3
Voltage
0 to 1 V DC (Allowable load resistance: 1 k or more)
4
0 to 5 V DC (Allowable load resistance: 1 k or more)
5
0 to 10 V DC (Allowable load resistance: 1 k or more)
6
1 to 5 V DC (Allowable load resistance: 1 k or more)
7
Current
0 to 20 mA DC (Allowable load resistance: 600 or less)
8
4 to 20 mA DC (Allowable load resistance: 600 or less)
D
Open collector
Allowable load current: 100 mA
Load voltage: 30 V DC or less
ON voltage: 2 V or less (at maximum load current)
Leakage current at OFF: 0.1 mA or less
Assign Control output, Transmission output or Event output at OUT3 assignment (LoGC3). *
* Refer to P. 4-37.
: The dotted box diagram describes the output state of the instrument.
Wiring example Voltage pulse Voltage/Current Open collector
OUT3
47
48
OUT3
47
48
+
47
48
+
AO
4 to 20 mA DC
+
Recorder
OUT3
47
48
+
OUT3 (Specify when ordering)
