3. WIRING
IMR02L04-E3
3-5

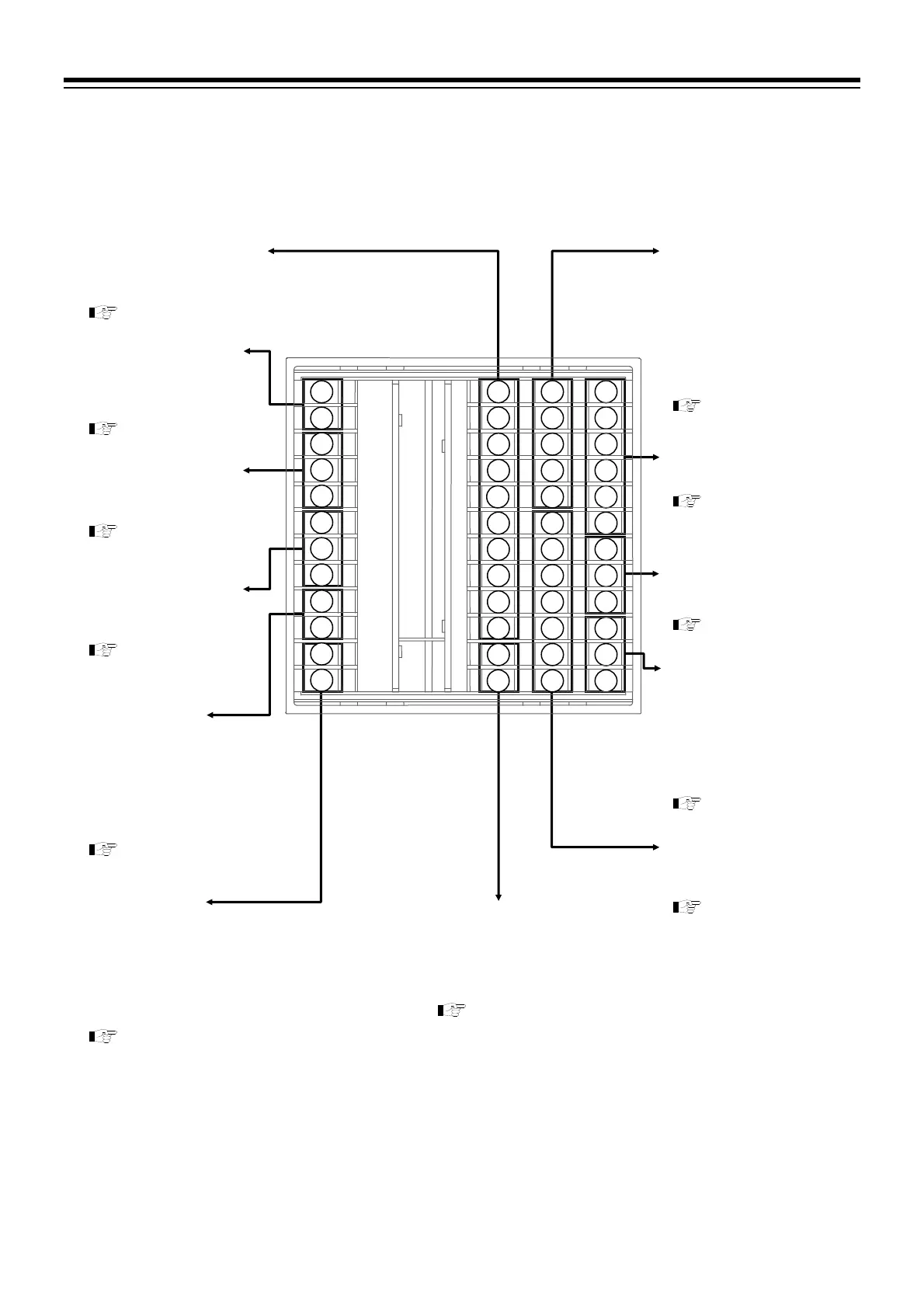

3.2 Terminal Layout
 Terminal configuration
The PF900 and the PF901 offer the same terminal configuration.
* Specify when ordering
Measured input
[universal input]
Thermocouple (TC)
Resistance temperature
detector (RTD)
Voltage
Current
Refer to P. 3-8.
Current transformer (CT)
input [optional] or
Feedback resistance
(FBR) input [optional]
Refer to P. 3-15.
Digital input (DI7 to DI11)
Dry contact
Refer to P. 3-12.
24
16
13
14
15
17
18
19
20
21
22
23
12
4
1
2
3
5
6
7
8
9
10
11
48
40
37
38
39
41
42
43
44
45
46
47
36
28
25
26
27
29
30
31
32
33
34
35
Digital output (DO5 to 12)
[optional]
Open collector
Refer to P. 3-14.
Power supply voltage
100 to 240 V AC
24 V AC
24 V DC
Refer to P. 3-7.
Digital output 3 (DO3),
Digital output 4 (DO4)
Relay contact
Refer to P. 3-13.
Digital output 1 (DO1),
Digital output 2 (DO2)
Relay contact
Refer to P. 3-13.
Output 2 (OUT2) *
Relay contact
Voltage pulse
Voltage
Current
Triac
Open collector
Refer to P. 3-9.
Output 1 (OUT1)
Relay contact
Voltage pulse
Voltage
Current
Triac
Open collector
Refer to P. 3-9.
Output 3 (OUT3) *
Voltage pulse
Voltage
Current
Open collector
Refer to P. 3-11.
Communication 1
[optional]
RS-232C
RS-422A
RS-485
Communication 2
[optional]
RS-485
Refer to P. 3-16.
Digital input (DI1 to DI6)
[optional]
Dry contact
Refer to P. 3-12.
