RKC INSTRUMENT PF900 User Manual

2. MOUNTING
IMR02L04-E3
2-4

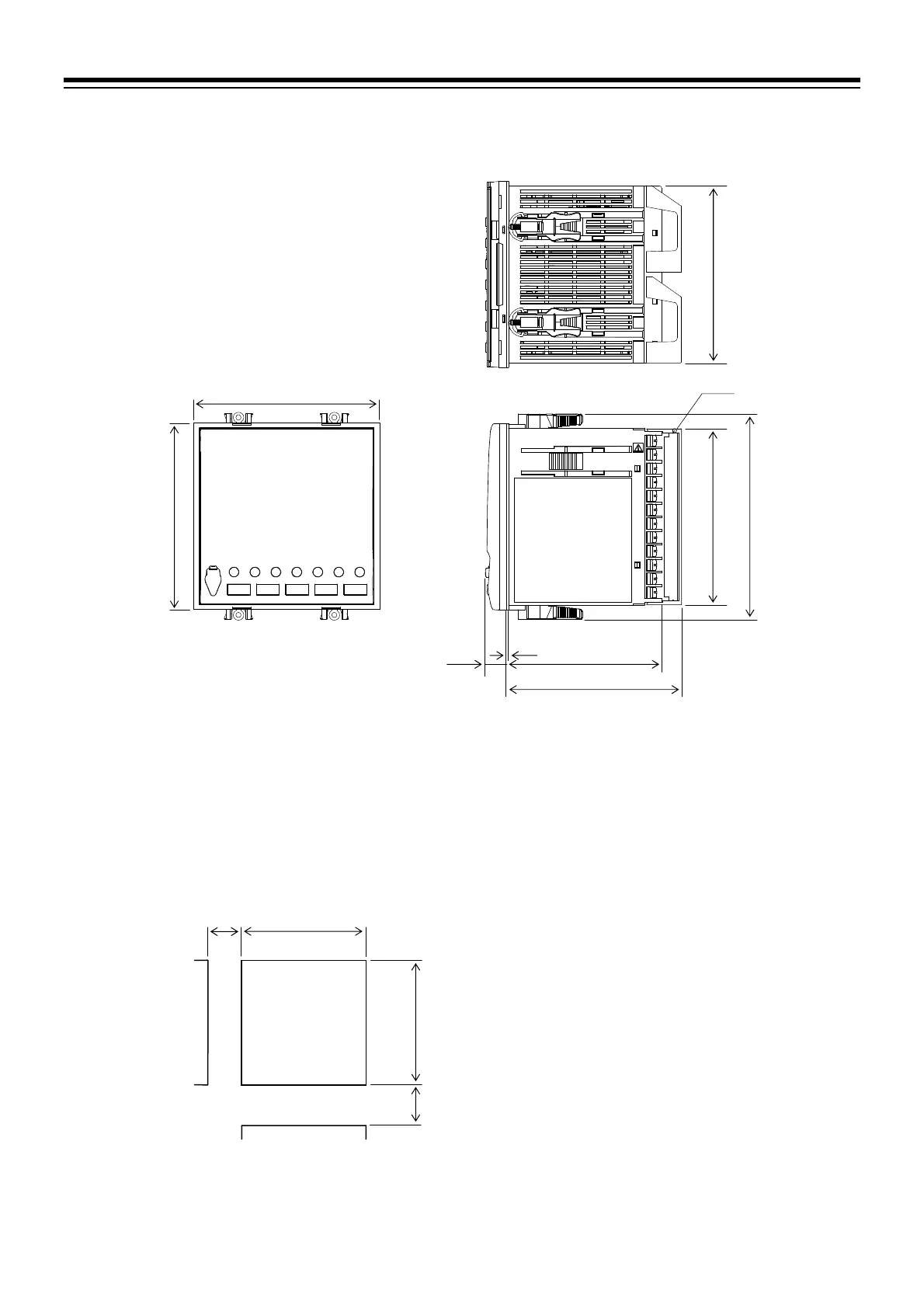

2.3 Dimensions
 Dimensions
(Unit: mm)
[Panel thickness: 1 to 10 mm]
*1 Waterproof/dustproof rubber packing (Model code: KFB900-36 <1>)
*2 Terminal cover [sold separately] (Model code: KFB 400-511(1))
 Panel cutout
To keep the instrument as waterproof as possible, make sure that the panel surface has no burr or
distortion where the hole is to be cut out.
(Unit: mm)
25
30
0.8
0
92
0.8
0
92
*2
96
96
80
11
90.1
91.8
106.1
1
*1
91.8
