IMR02L04-E3 1-1
1. OUTLINE

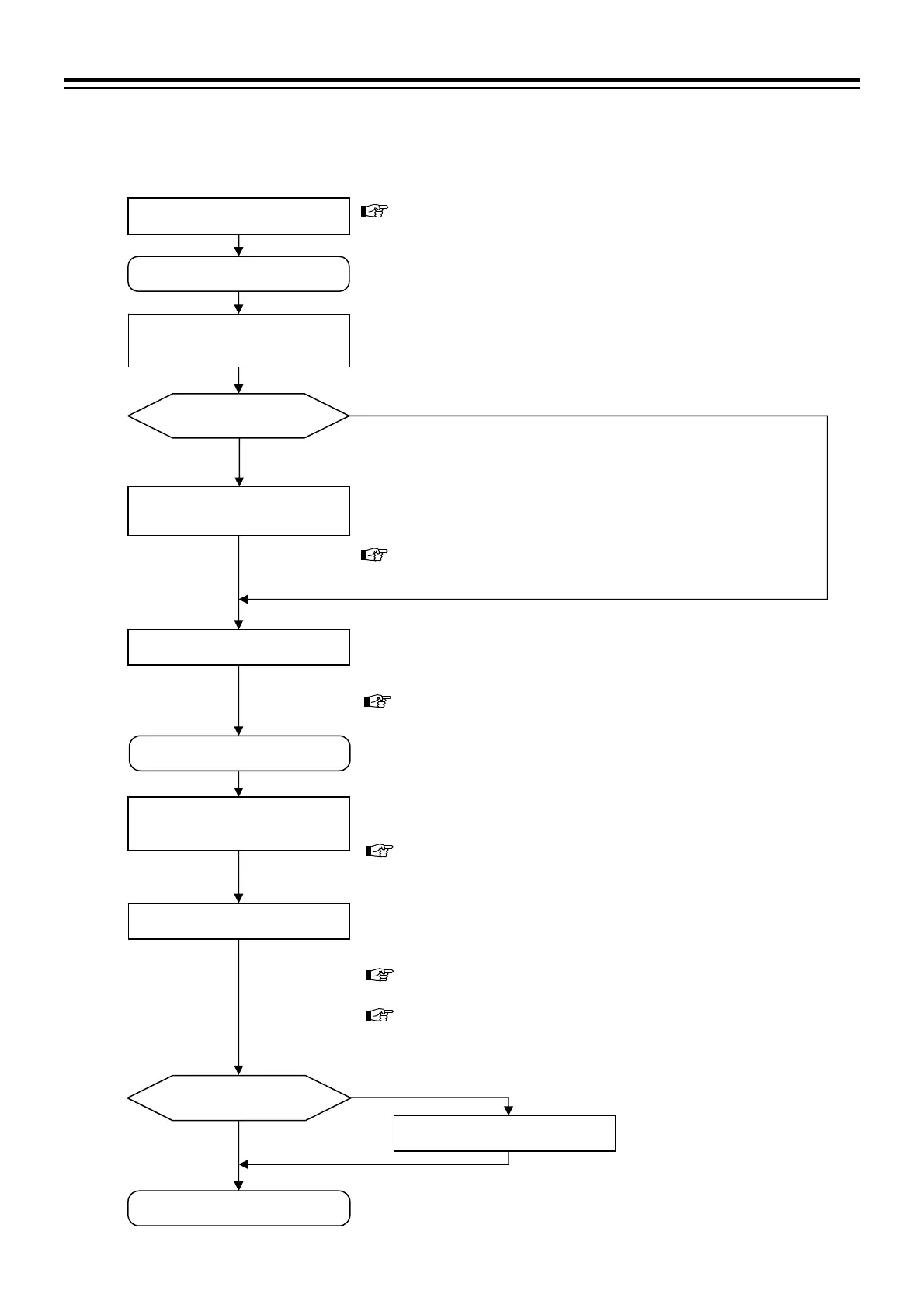

1.1 Handling Procedure to Operation
Conduct necessary setting before operation according to the procedure described below.
Switch mode from
RESET to RUN.
Conduct Autotuning (AT)
Conduct manual turning.
T lamp flashes
When the AT is finished, the controller will automatically returns to PID
control.
Refer to 5.4.3 Program pattern composition for setting example
of Program pattern (P. 5-12).
Record data of Program pattern in the spreadsheet before setting.
(PF900/PF901 Pattern Record Sheet is included in the CD-ROM.)
Set Program pattern.
Program pattern setting
Initial Setting
(Engineering mode)
No (No need to change the specification at ordering.)
Yes (To change the operating condition)
For details of Engineering mode parameters, refer to
4.5.5 Engineering mode (P. 4-32).
Power ON
Check the parameter related to the input (P. 5-1)
Check the parameter related to the event (P. 5-3)
Check the parameter related to the control action (P. 5-4)
Press the RUN key to go to the Program control mode (RUN) to start
operation. (RUN lamp turns on.)
Refer to 5.4.4 Start/End Program control (P.5-20) for the
procedure to switch operation modes.
Start test run.
Switch mode from
RUN to RESET.
Start operation
Desired control result?
Yes
No
Set operation
conditions?
Press the RESET key to go to the Reset mode (RESET) to stop the
operation. (RESET lamp turns on.)
Mounting and Wiring
Refer to 2. MOUNTING (P. 2-1) or 3. WIRING (P. 3-1).
For details of Autotuning (AT), refer to 5.5 Autotuning (AT)
(P. 5-23).
For Autotuning (AT) with learning function, refer to
6. FUNCTION AND SETTING PROCEDURE of
the PF900/PF901 Instruction Manual (IMR02L03-E) on
the CD-ROM.
To Next Page
