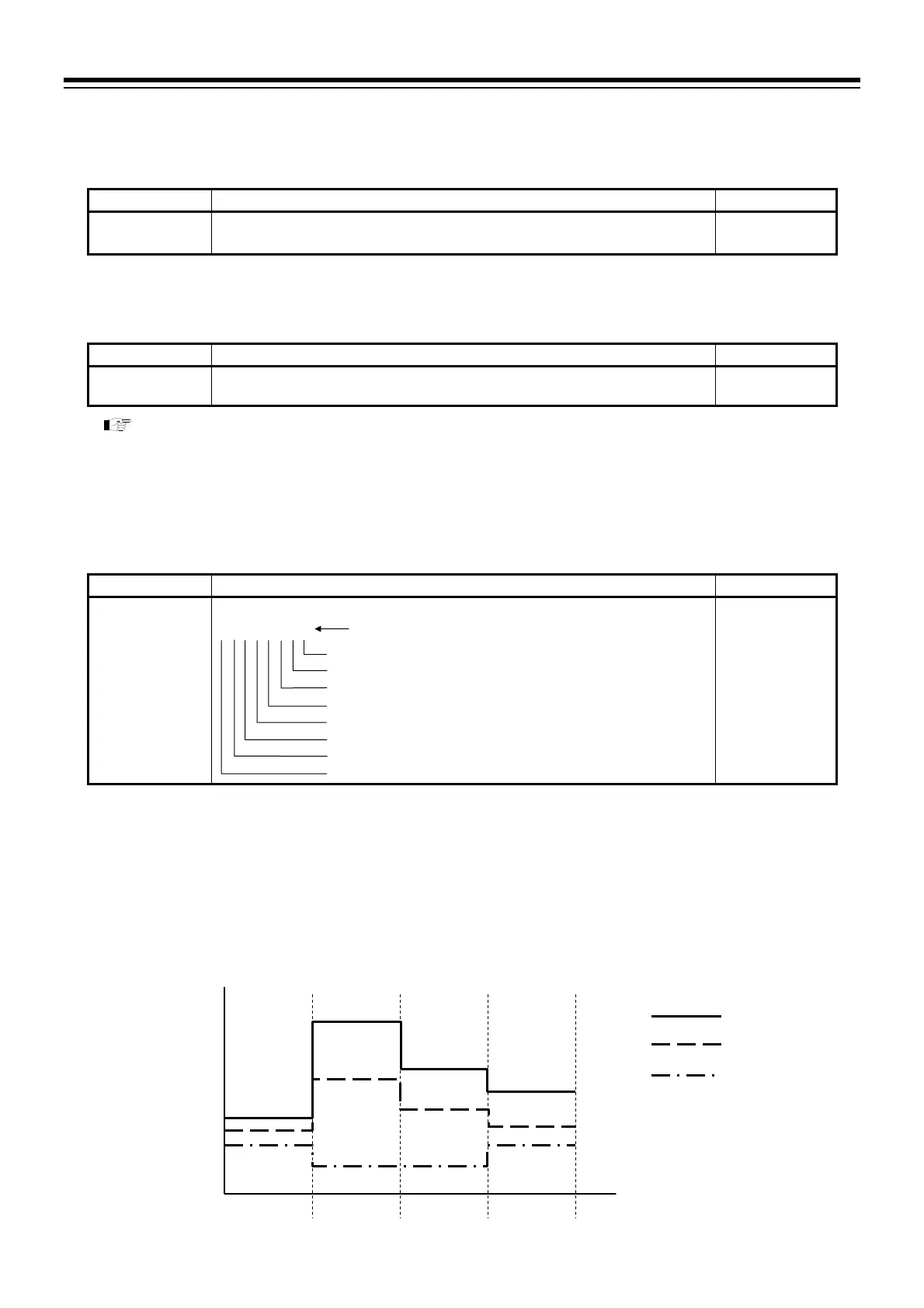

RKC INSTRUMENT PF900 User Manual

6. PROGRAM CONTROL
IMR02L04-E3
6-26
 End segment of time signal
[Parameter setting mode: Time signal memory group setting block]
Set End segment number of Time signal.
Parameter symbol Data range Factory set value
01 . E .S N
1 to 99
Within the maximum segment number.
1
 Time signal end time
[Parameter setting mode: Time signal memory group setting block]
Set duration of End time of Time signal end segment.
Parameter symbol Data range Factory set value
01 . E .T M
From 0:00 to 500:00 (Hour: Minute), or
from 0:00 to 500:00 (Minute: Second)
0 hour 00 minute
Set time unit at F80.05 in the Engineering mode. Refer to 4.5.5 Engineering mode (P. 4-43).
 Parameter setting item of Segment signal
[Parameter setting mode: Program signal memory group setting block]
 Segment signal
Set ON/OFF to Segment signal for each segment.
Parameter symbol Data range Factory set value
SIGNL
0: OFF 1: ON
00000000 Value at SV display
Segment signal 1
Segment signal 2
Segment signal 3
Segment signal 4
Segment signal 5
Segment signal 6
Segment signal 7
Segment signal 8
00000000
6.10 Output Program
6.10.1 Description of function
Output values being set arbitrarily is produced in order of segment.
Number of output: Up to 3 points (It is possible to assign to OUT1 through OUT3)
Time
Output
Segment 1 Segment 2 Segment 3 Segment 4
OUT1
OUT2
OUT3
[Example of Output program]
