5. OPERATION
IMR02L04-E3 5-27
5.6 Parameter Setting via Loader Communication
Use the PF900/PF901 setting tool (WinUCI-PF900) for parameter setting by loader communication. It is
possible to use loader communication for the instrument without communication function (optional).
Loader communication is for set up only. Do not use for data logging during operation.
Loader communication ports are located in the front and at the bottom of the instrument. Both ports
cannot be used at the same time.
Use W-BV-03 loader communication cable to connect conventional COM-K to the loader
communication port in front.
5.6.1 Preparation
Prepare the following items for parameter setting by loader communication:
 Personal computer (with USB port)
 USB communication converter (RKC product)
COM-K-
 Loader communication cable
W-BV-03: Connect to the loader communication port in front (Standard cable length: 1.5 m supplied with COM-K-3)
W-BV-01: Connect to the loader communication port at the bottom (Standard cable length: 1.5 m supplied with
COM-K-1)
 USB cable (Standard cable length: 1 m supplied with COM-K-)
 Setting tool (WinUCI-PF900)
 USB driver for COM-K

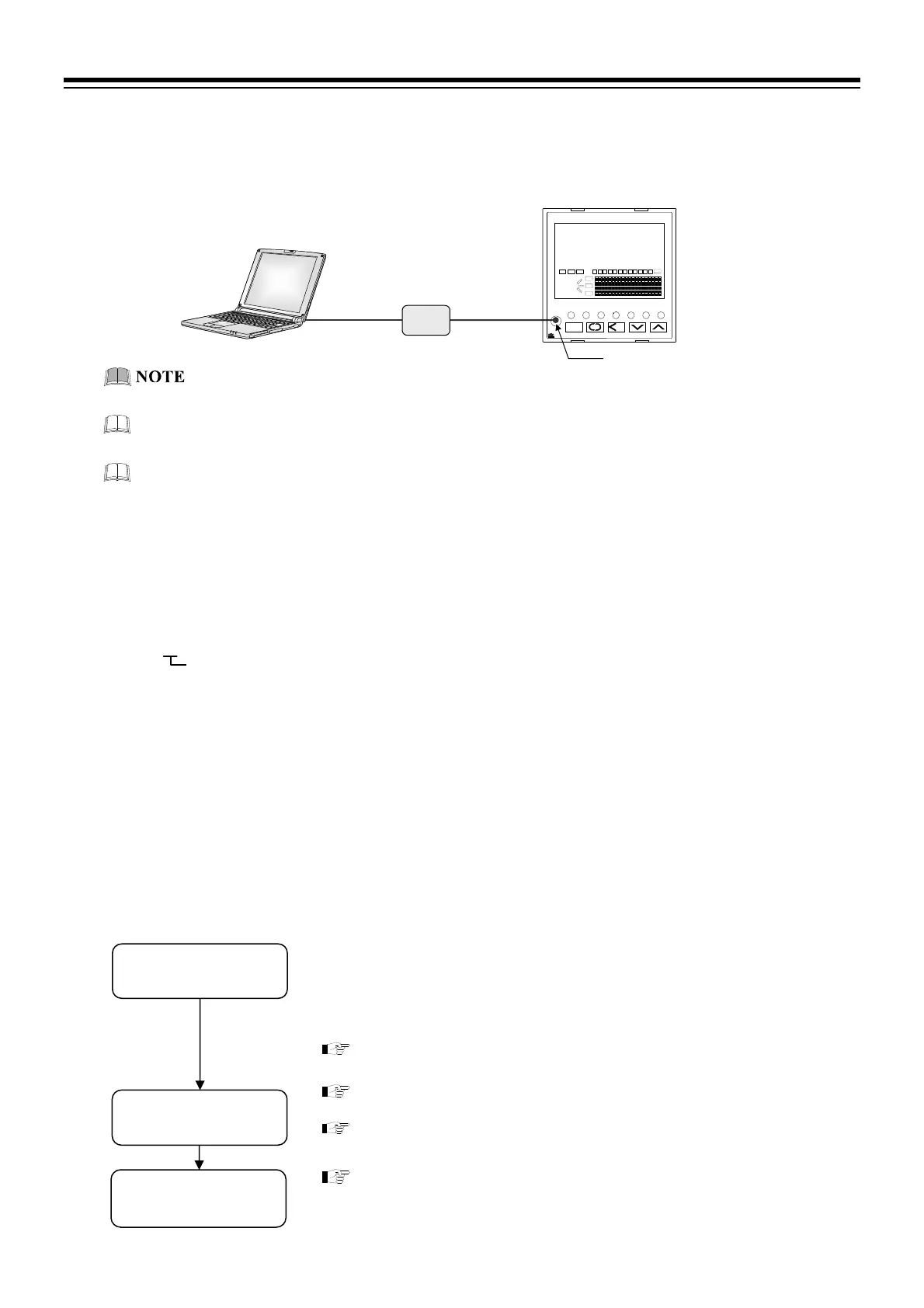

5.6.2 Instructions for use
To set parameters by loader communication, follow the instructions below.
Communication converter
Loader communication port
Personal computer
RESET
RUN
FIX MAN HOLD STEP R.SET
PTN END
MONI MODE
SET
PF900
PV
TM H:M:S SV
28
$
40:00 200 !

PTN
SEG
DO
1

1

Install the Setting tool
and the USB driver
Prepare loader
communication
Set operation
parameters
When using the loader communication, Communication Setup Tool and USB
driver for COM-K must be installed on the personal computer. The
Communication Setup Tool and the USB driver for COM-K and can be
downloaded from the official RKC website: http://www.rkcinst.com/.
For the Setting tool, refer to WinUCI-PF900 Instruction Manual
(IMT01D09-E).
For COM-K, refer to COM-K Instruction Manual (IMR01Z01-E).
Refer to 5.6.3 Connections for loader communication (P. 5-28) for
Connecting to loader communication.
To set parameters to be used for the operation, refer to 5.6.4. Parameter
setting (P. 5-29).
3: W-BV-03 loader communication cable (for connecting to the loader communication port in front.)
1: W-BV-01 loader communication cable (for connecting to the loader communication port at the bottom.)
