RKC INSTRUMENT PF900 - Digital Output 1 to 4 (DO1 to DO4) [Standard]

3. WIRING
IMR02L04-E3
3-13
 Digital output 1 to 4 (DO1 to DO4) [standard]
 With DO optional, terminals 3 through 5 (DO3, DO4) and 6 through 8 (DO1, DO2) are allocated to the
DO.
 Output type is only relay contact output.
Contact type: 1a contact
Contact rating (Resistive load): 250 V AC 1 A, 30 V DC 1 A
Electrical life: 300,000 times or more (Rated load)
 Assign Event type at the setting screen below.
Digital output terminal Setting screen
DO1 Engineering mode F34.01: DO1 assignment (Ldo1) [Refer to P. 4-38.]
DO2 Engineering mode F34.02: DO2 assignment (Ldo2) [Refer to P. 4-38.]
DO3 Engineering mode F34.03: DO3 assignment (Ldo3) [Refer to P. 4-38.]
DO4 Engineering mode F34.04: DO4 assignment (Ldo4) [Refer to P. 4-38.]

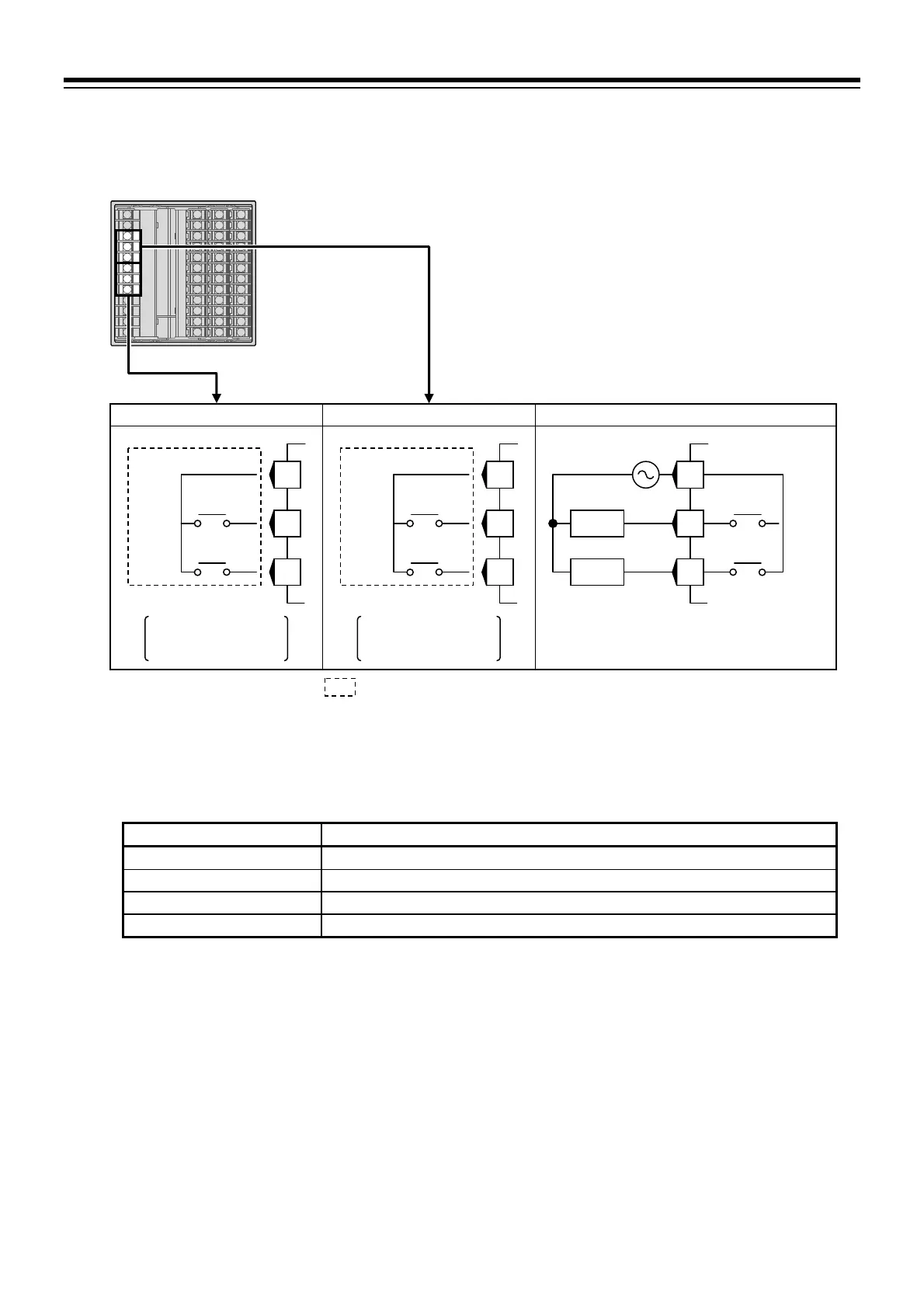

: The dotted box diagram describes the output state of the instrument.
DO1/DO2
NO
6
7
8
NO
DO2
DO1
COM
NO
3
4
5
NO
DO4
DO3
COM
3
4
5
NO
NO
DO2
DO1
COM
Load
Load
DO3/DO4 Wiring example
Specification code:
4 or C
Specification code:
4 or C
DO1/DO2
DO3/DO4
