Rockwell Automation Publication 450L-UM001D-EN-P - December 2019 157
Connected Components Workbench Software Chapter 9

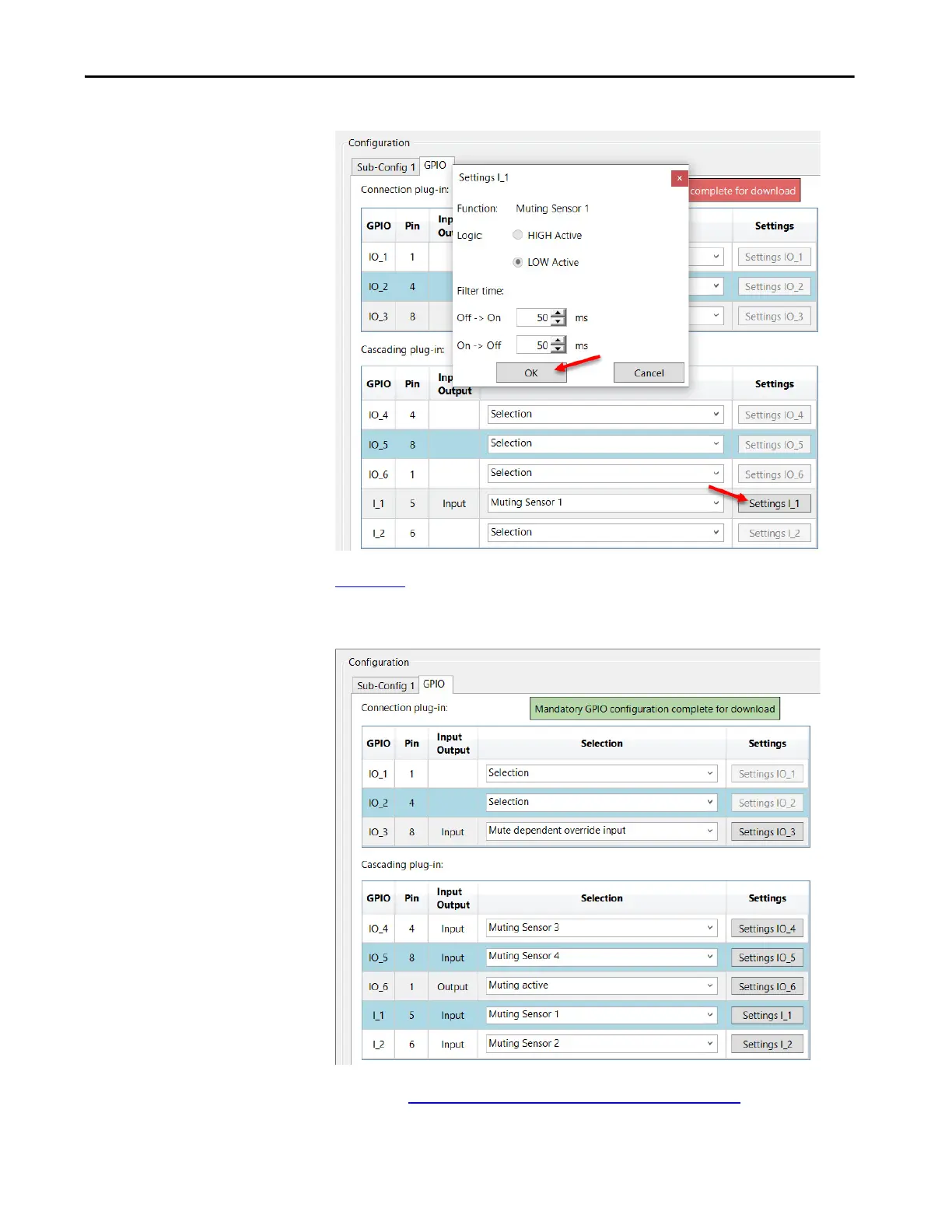

Figure 118 - Muting Sensor Settings
Figure 119 shows the final GPIO settings to meet the example schematic. The
mandatory GPIO message box is green.
Figure 119 - Final GPIO Muting Settings
Proceed to Download and Upload Configurations on page 175.
