PLC-HP7000L Expand Serial Command Functional Specifications
10/94
1 Overview
・ This Functional Specification defines communication with PJ-Net organizer for PLC-HP7000L.
・ Supporting Firmware Ver. 1.x of the projector.
・ Commands in this document are to communicate with PJ-Net organizer, but most commands are
used to control a projector remotely from a computer with RS-232C. Therefore commands in this
document are defined as Expand Serial Commands.
2 Serial Interface Specification
2.1 Transfer Specification
Item Specification
Synchronous System Asynchronous
Transmission Speed 9600 / 19200
Data Length 8 bits
Parity N/A
Stop Bit 1
Flow Control N/A
Note1) Transmission Speed: initial setting value is 19200
Note2) Transmission Speed can be changed in Service mode.

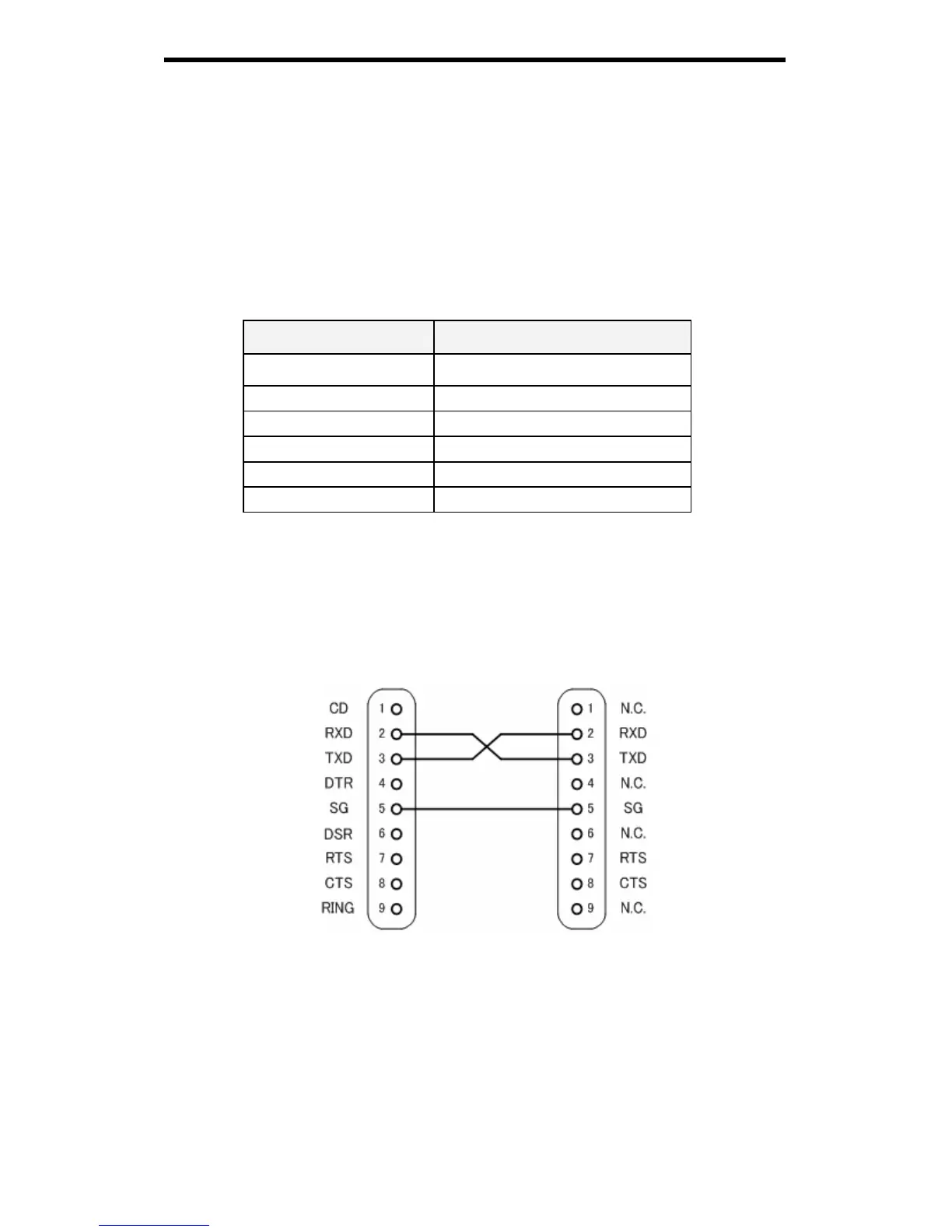

2.2 Connection
Dedicated serial cables must be used for the connection between a computer and a projector.
PC Projector
COM 1 CONTROL PORT
(D-Sub 9Pin) (D-Sub 9Pin)
Connect COM port of the computer to CONTROL PORT of the projector.
COM Port (COM1 or COM2) of a computer is specified by control software of the computer.
