Date Code 990430 Loss-of-Potential, Load Encroachment, and Directional Element Logic 4-13

SEL-351P Manual Técnico

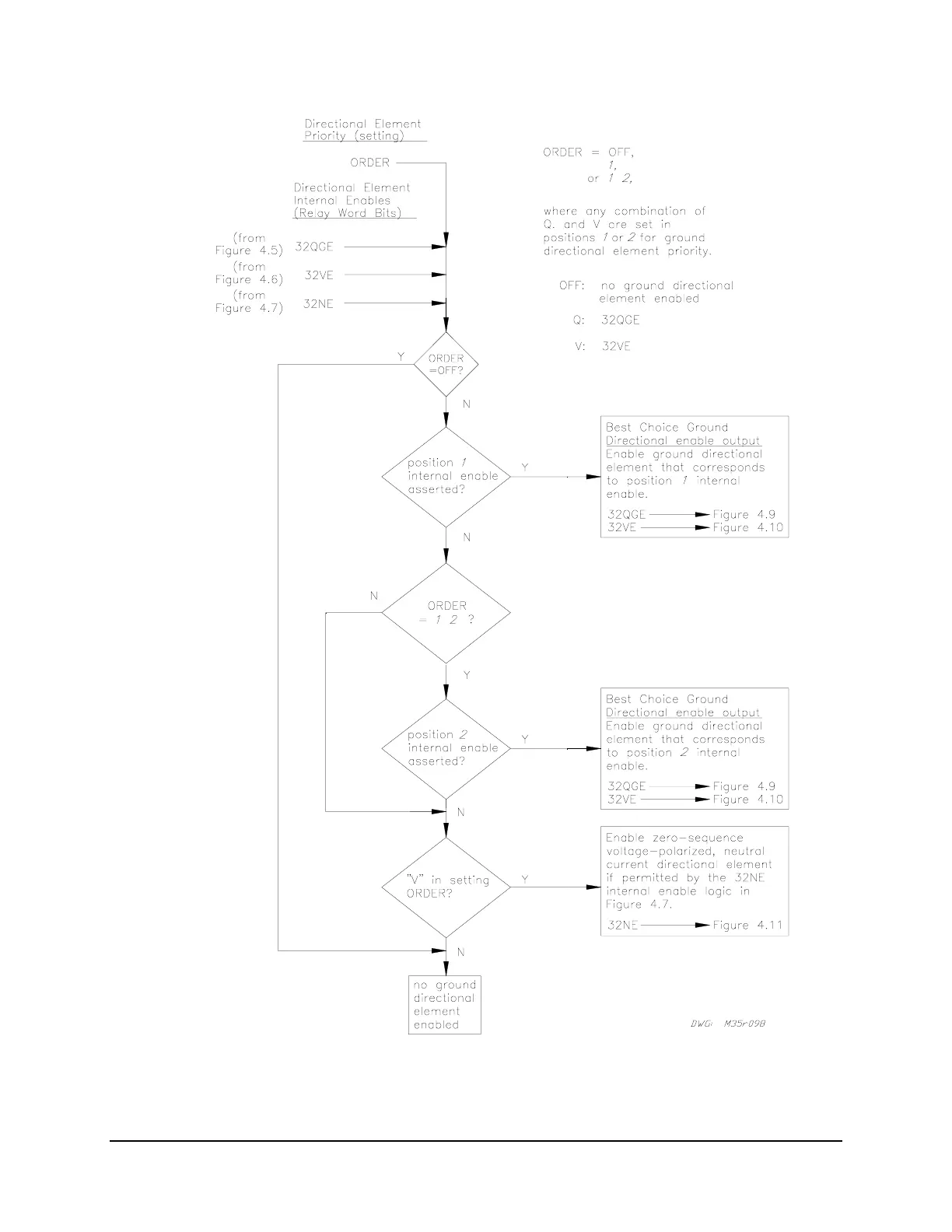

Figure SECTION 4: .8: Best Choice Ground Directional Logic
