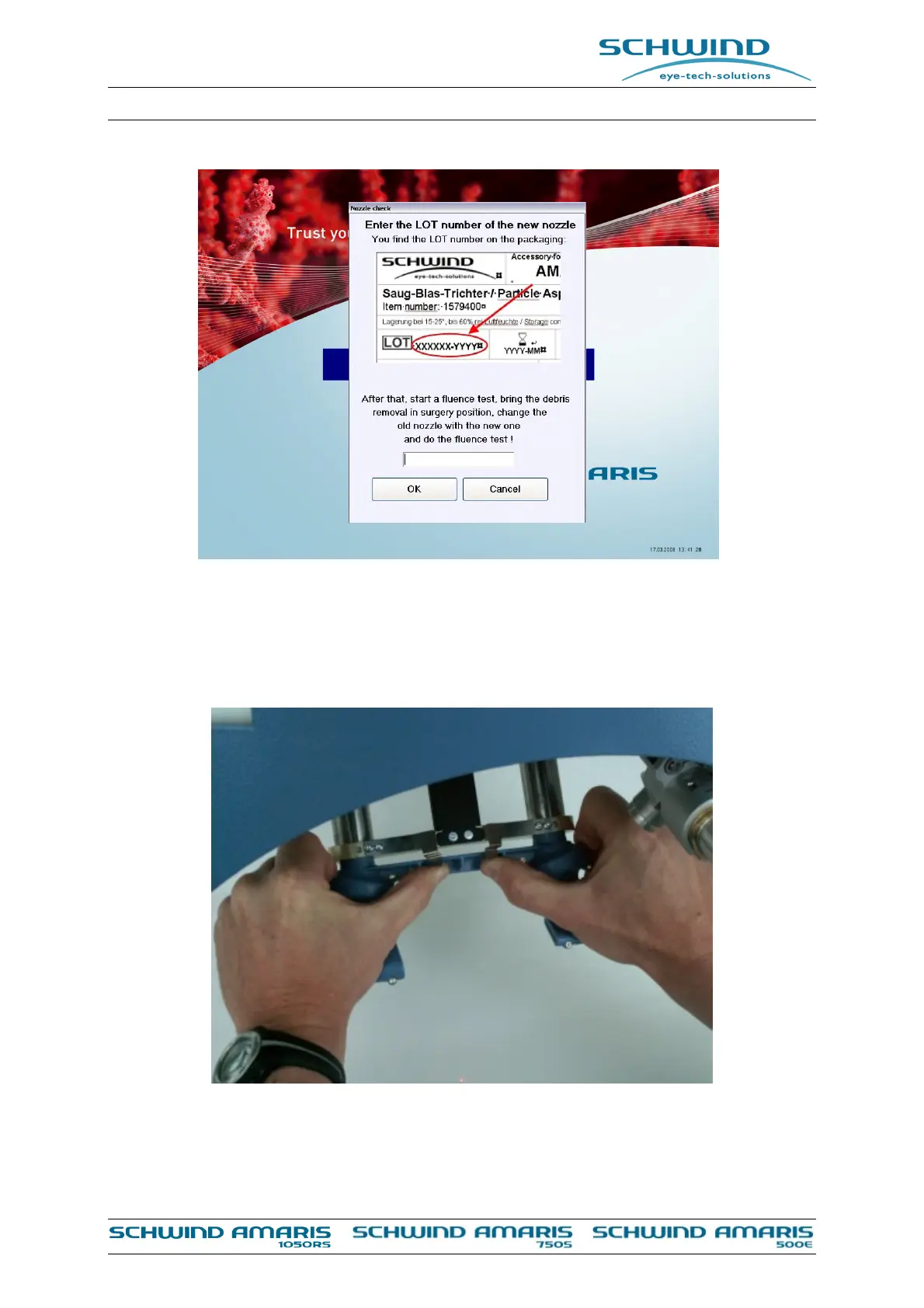

Figure 10-3: Entering the serial number of the new particle aspiration filter
To remove the used nozzle of the Particle Aspiration System, hold the part on both ends release
the security clamp and pull it out of the tubes/openings. Insert a new nozzle, also holding with
both hands.
Figure 10-4: Changing the nozzle
