SCHWIND Amaris 500E - Figure 5-9: AMARIS 500 E with Swivelling Patient Bed - 30° Position

USER MANUAL (Instruction for Use) SW 6.1
Installation
Version 6.1.6 dated 2020-01-31 EN Page 81 of 201

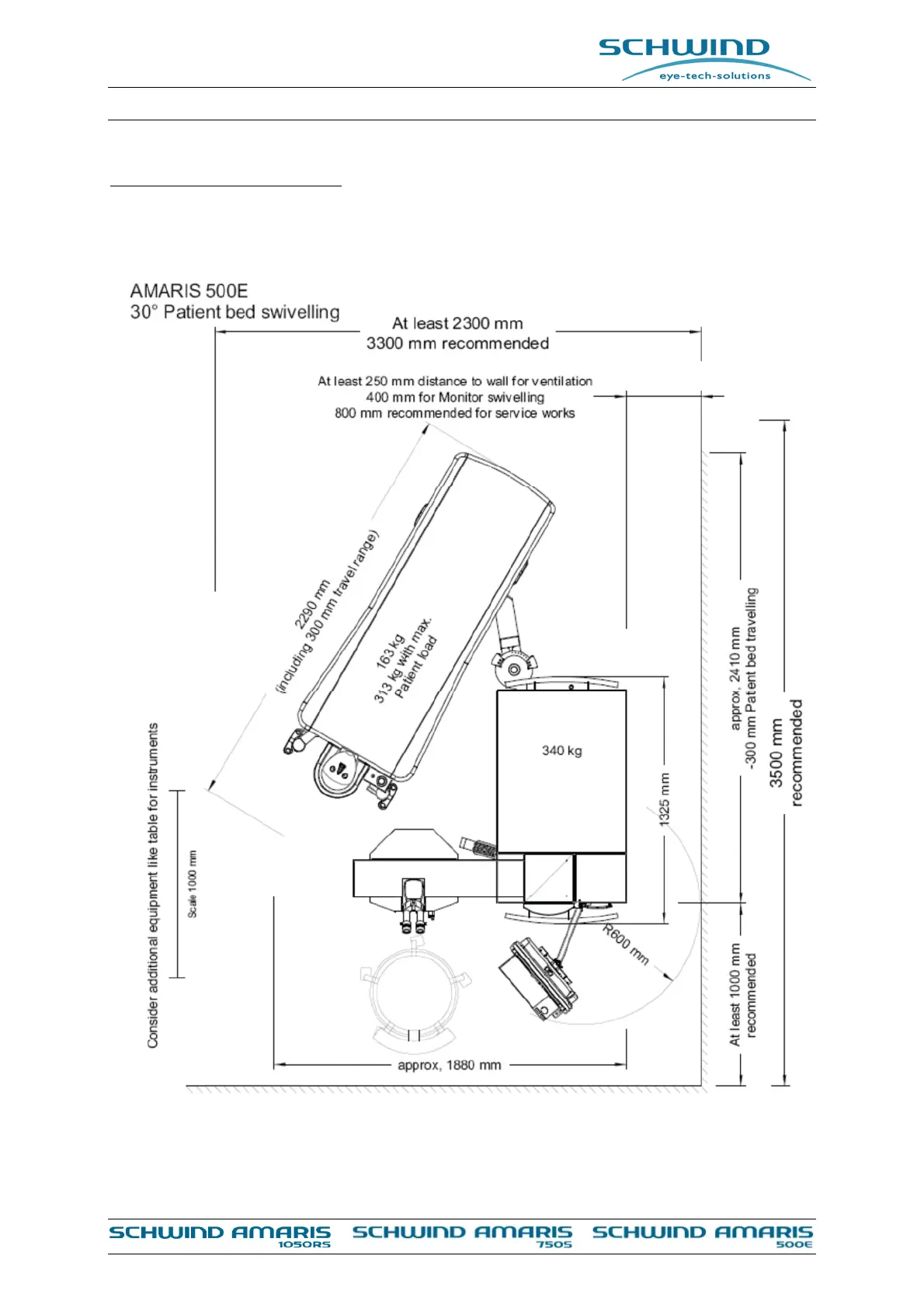

AMARIS Swivelled Position 30°
Min.room size: 2300 mm x 3500 mm (approx. 8.0 m²)
Recommended room size: 3300 mm x 3500 mm (approx.11.55 m²)
Drawing is not shown in actual size
Figure 5-9: AMARIS 500E with swivelling patient bed - 30° position
