SCHWIND Amaris 500E - Figure 5-10: AMARIS 500 E with Swivelling Patient Bed 90° Position

USER MANUAL (Instruction for Use) SW 6.1
Installation
Version 6.1.6 dated 2020-01-31 EN Page 82 of 201
AMARIS Swivelled Position 90°
Min. room size: 2400 x 3500 mm (approx. 9.5 m²),
Recommended room size: 3400 x 3500 mm (approx.12.5 m²)
Drawing is not shown in actual size

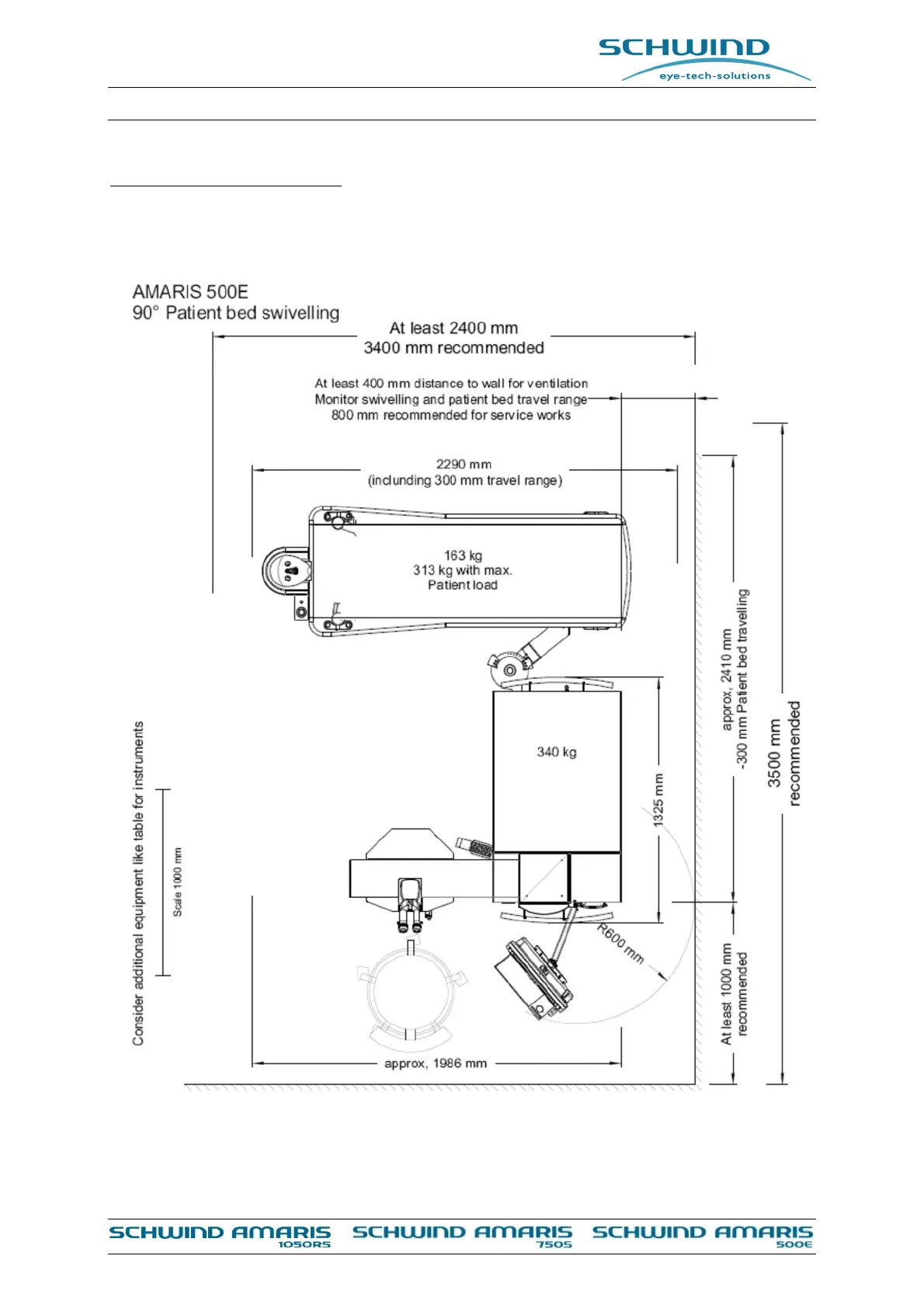

Figure 5-10: AMARIS 500E with swivelling patient bed 90° position
