SCHWIND Amaris 500E - Electrical Safety - Connection of Devices to External Plugs; Figure 2-2: Samples of Printer Connection

USER MANUAL (Instruction for Use) SW 6.1
Safety
Version 6.1.6 dated 2020-01-31 EN Page 33 of 201
2.7 Electrical Safety - Connection of Devices to External Plugs
To ensure electrical safety, only devices intended for use by SCHWIND eye-tech-solutions
(printer, monitor, etc.) may be connected to the external plugs (refer also to chapter 10.7
Components and Consumables).
Additional devices connected to analogue and digital plugs of the system must fulfil EN and IEC
specifications (i.e. EN IEC 60950-1resp. its successor IEC 62368-1 for data processing devices, IEC
60601-1 for electrical medical devices).
IMPORTANT NOTE
Persons connecting additional devices to signal input or output are
reconfiguring the system and are responsible for ensuring that the
specifications outlined in IEC 60601-1 are maintained.
Should you have further questions, please do not hesitate to contact the Service Department of
SCHWIND eye-tech-solutions.
Additional devices not medically approved, like printers, DVD-recorder or monitors, must be
powered via an insulating transformer when connecting them to the laser.
Example 1: Additional Device connected with AMARIS via power cord (recommended)
Example2: Additional device is not connected with AMARIS via power cord.

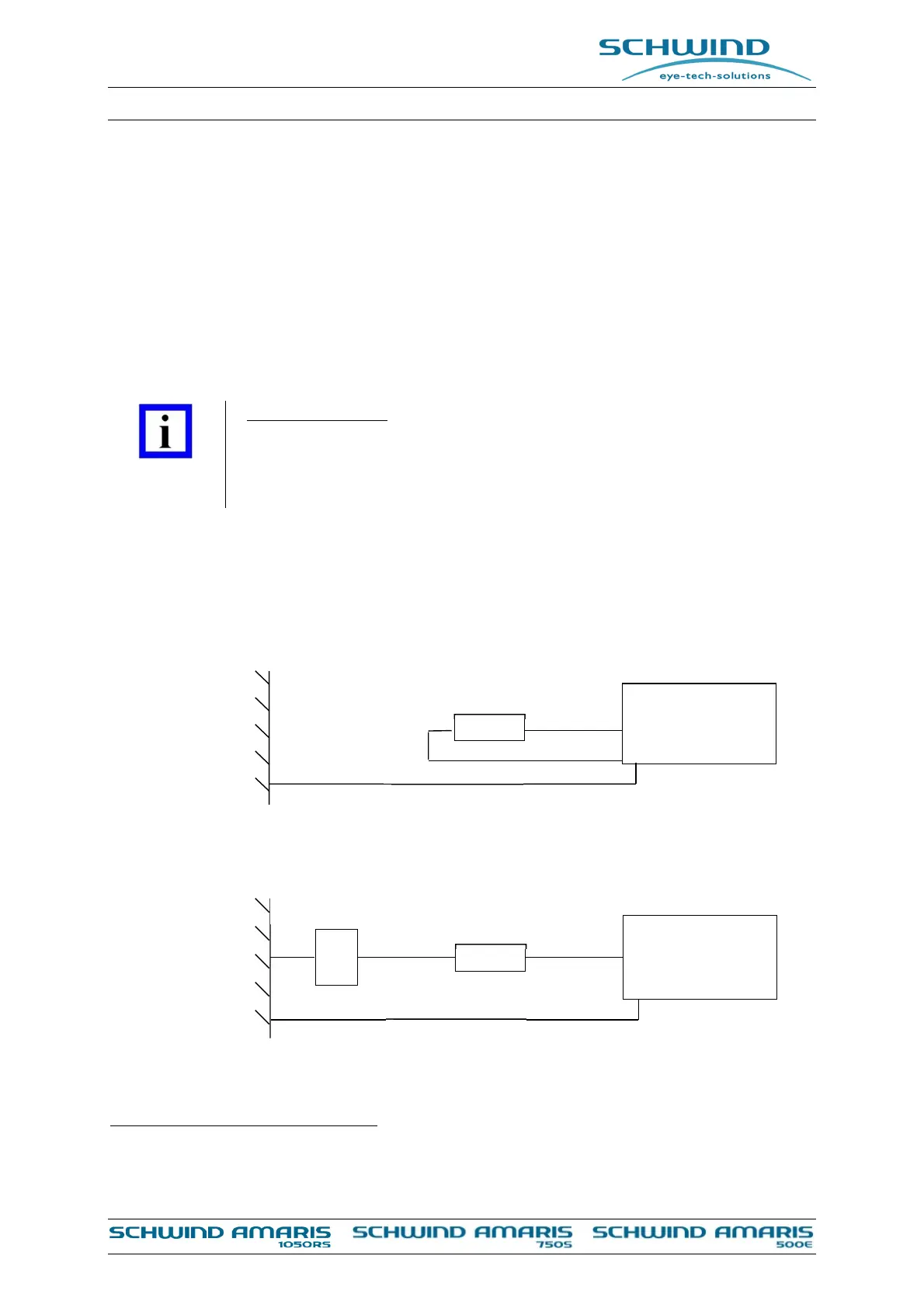

Figure 2-2: Samples of printer connection
Potential Free Power Supply Output
The SCHWIND AMARIS provides a potential free power supply output with 230 VAC, 50/60Hz at
three power outlet sockets at the connection plate.
USB
cable
Power cord
Additional
Device
AMARIS
Wall outlet or
connection of
main current
Laser Power cord
USB
cable
Power cord
Isolated transformer
IEC 60601
-
1
Additional
device
AMARIS
Wall outlet or
connection of
main current
Laser Power cord
