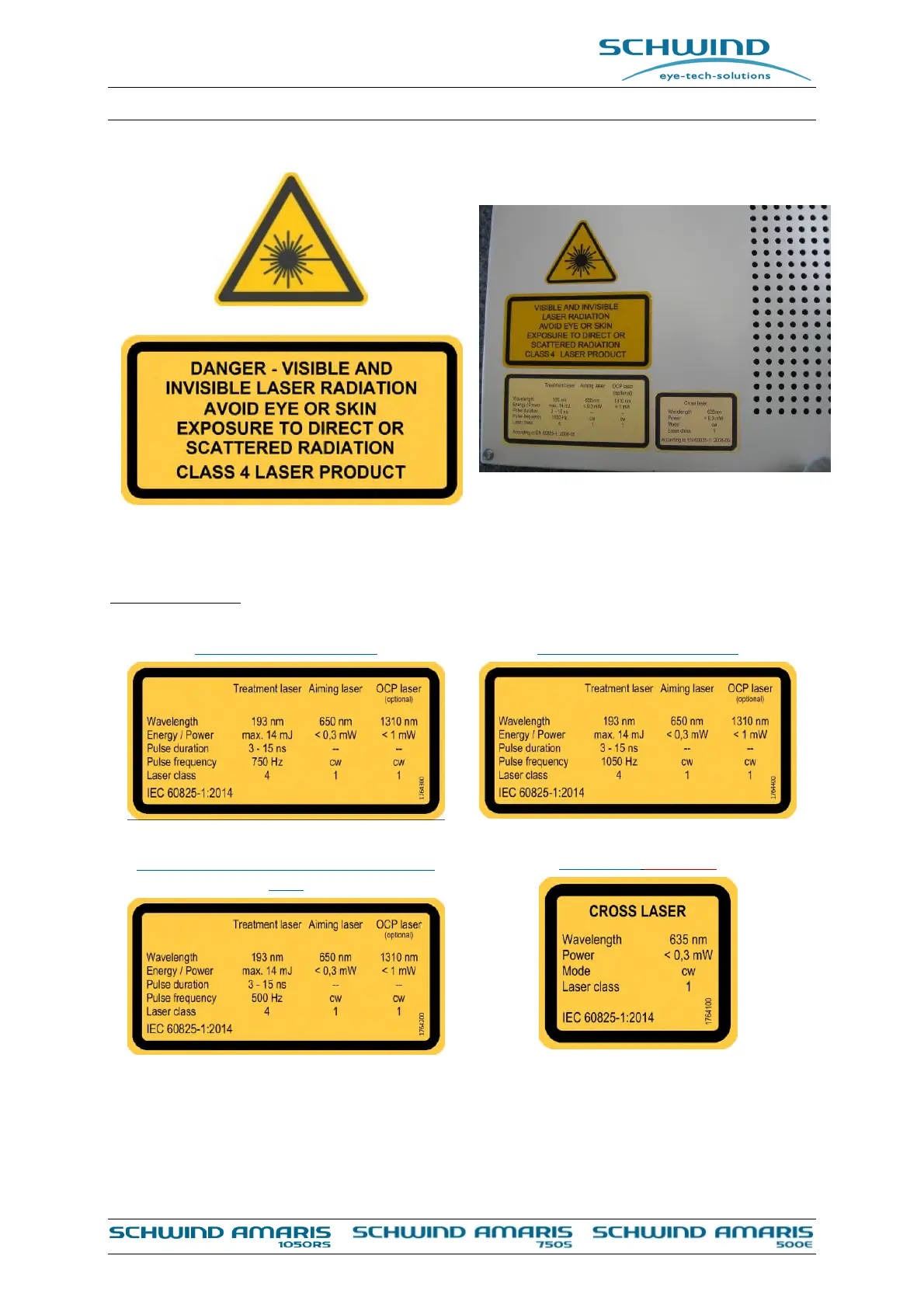

SCHWIND Amaris 500E - Figure 2-9: Laser Data Labels

USER MANUAL (Instruction for Use) SW 6.1
Safety
Version 6.1.6 dated 2020-01-31 EN Page 41 of 201
The laser labels are placed on the protective laser housing, outside on the compartment door.
Laser Data Labels
SCHWIND AMARIS 750S SCHWIND AMARIS 1050RS
SCHWIND AMARIS / SCHWIND AMARIS
500E
Cross laser (optional)
Figure 2-8: Laser data labels
