SCHWIND Amaris 500E - Figure 5-8: AMARIS 500 E with Swivelling Patient Bed - Standard Position

USER MANUAL (Instruction for Use) SW 6.1
Installation
Version 6.1.6 dated 2020-01-31 EN Page 80 of 201
Room Dimensions - SCHWIND AMARIS 500E
IMPORTANT NOTE
Keep a distance to wall for service works as specified in the following drawings.
AMARIS Standard Position:
Min. room size: 2300 mm x 3500 mm (approx. 8.0 m²)
Recommended room size: 3300 mm x 3500 mm (approx.11.55 m²
Drawing is not shown in actual size

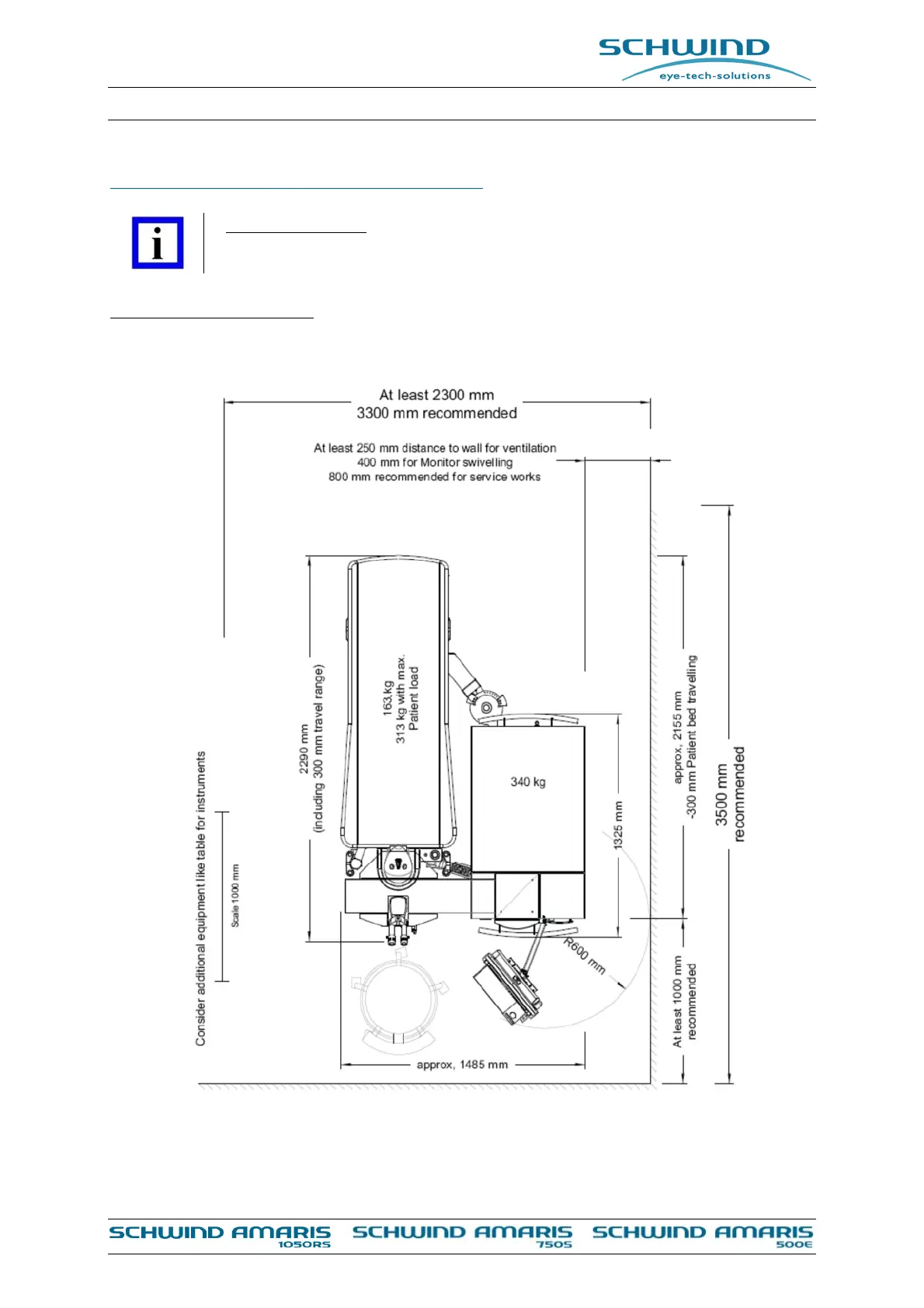

Figure 5-8: AMARIS 500E with swivelling patient bed – standard position
