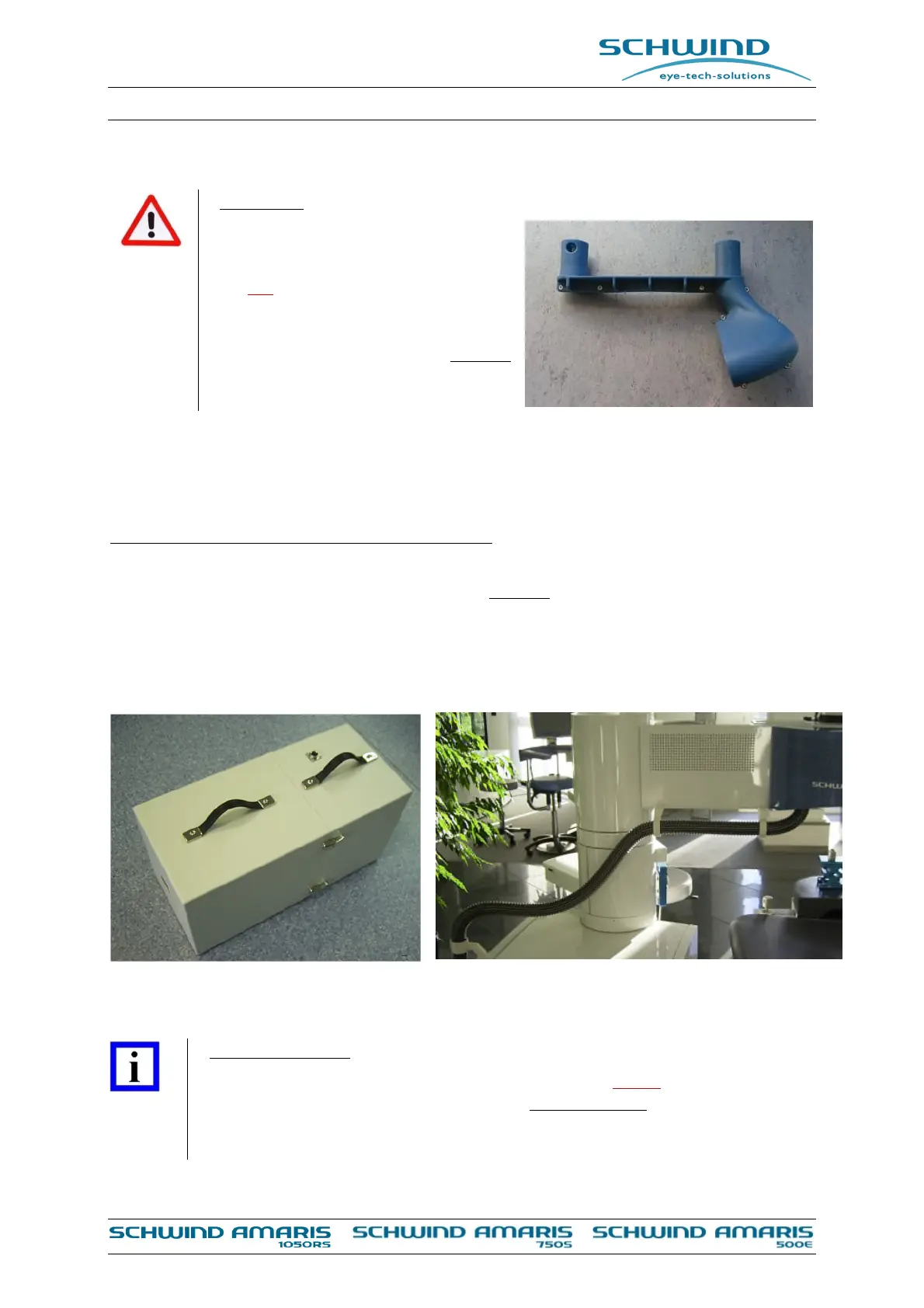

USER MANUAL (Instruction for Use) SW 6.1
Device / System Description
Version 6.1.6 dated 2020-01-31 EN Page 60 of 201
WARNING!
Do not mismatch the nozzles!
Risk of under correction!
Do not use the double-channel debris
nozzles together with the Plume
Evacuation System!
The Plume Evacuation System must be
operated with the single-channel
evacuation nozzle shown in Figure 4-7.
Figure 4-7 Single-channel nozzle for the plume evacuation system
Plume Evacuation System - EXTERNAL version
(Option for AMARIS all models)
The system is an add-on kit, which consists of an external evacuation unit (suction unit) with
integrated filter and tubing (vacuum hose) and a special evacuation nozzle, i.e. the single-
channel evacuation nozzle (Figure 4-7), that is mounted in place of the double-channel debris
nozzle and parts for electrical connection to the AMARIS (all models). The electrical connection
is a safe extra low voltage provided by a medical approved power supply.
Figure 4-8: External Evacuation unit with filter and tubing mounted to the nozzle
IMPORTANT NOTE
The single-channel nozzle of Plume Evacution Sytem is not available for AMARIS
500E when purchasing the laser model. The external version of the plume evacuation
system is only optionally available. Ask your Schwind distributor for additional
information.
