SCHWIND Amaris 500E - Figure 5-4: AMARIS; AMARIS 750 S; AMARIS 1050 RS with Swivelling Patient Bed

To Next Page

To Previous Page

USER MANUAL (Instruction for Use) SW 6.1

Installation

Version 6.1.6 dated 2020-01-31 EN Page 77 of 201

AMARIS Swivelled Position 30°

Min. room size: 2500 mm x 3500 mm (approx. 8.75 m²)

Recommended room size: 3300 mm x 3500 mm (approx.11.55 m²)

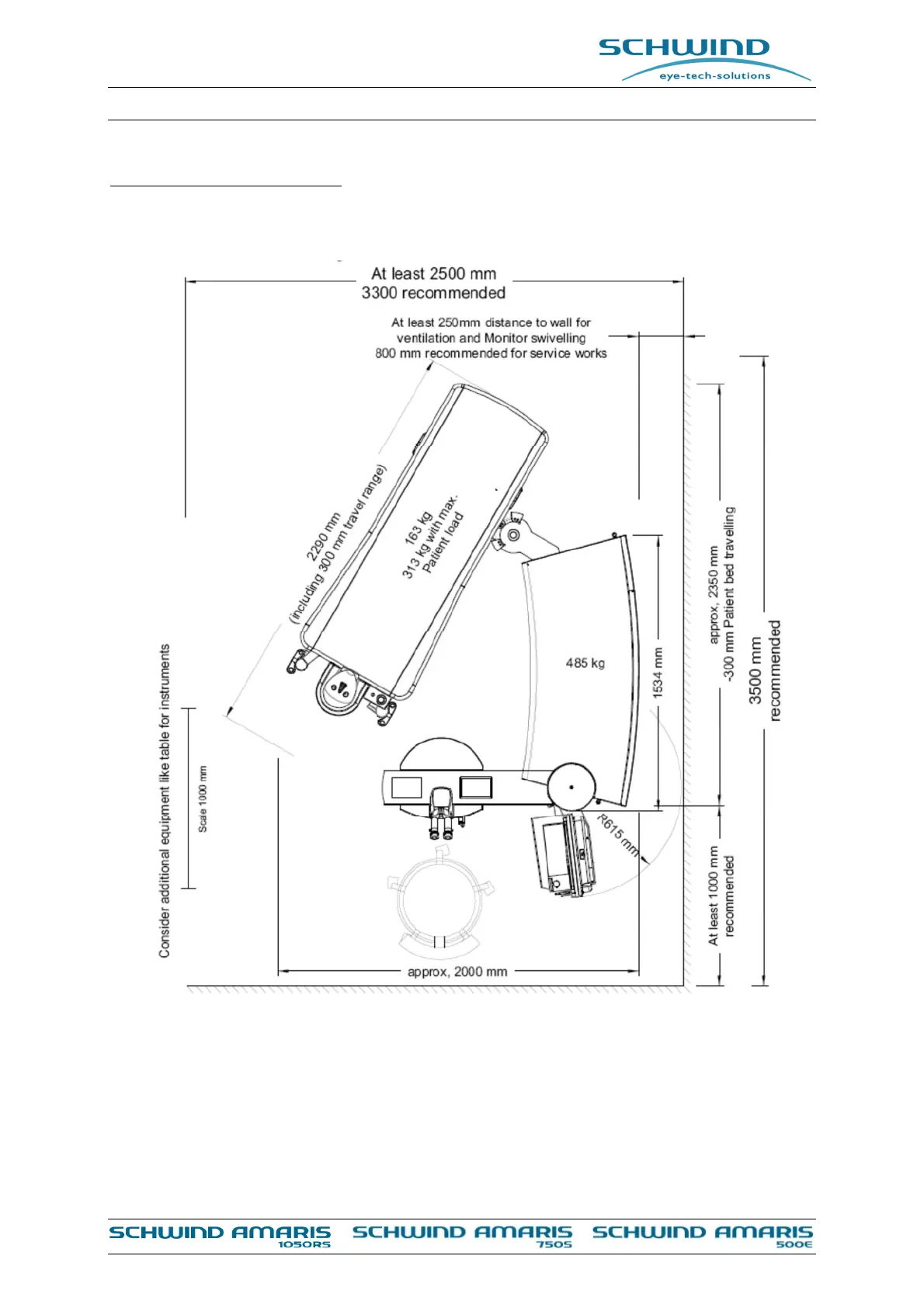

Figure 5-4: AMARIS / AMARIS 750S / AMARIS 1050RS with swivelling patient bed - 30° position

Drawing is not shown in actual size

SCHWIND Amaris 500E - Figure 5-4: AMARIS; AMARIS 750 S; AMARIS 1050 RS with Swivelling Patient Bed - 30° Position
