USER MANUAL (Instruction for Use) SW 6.1
Installation
Version 6.1.6 dated 2020-01-31 EN Page 83 of 201

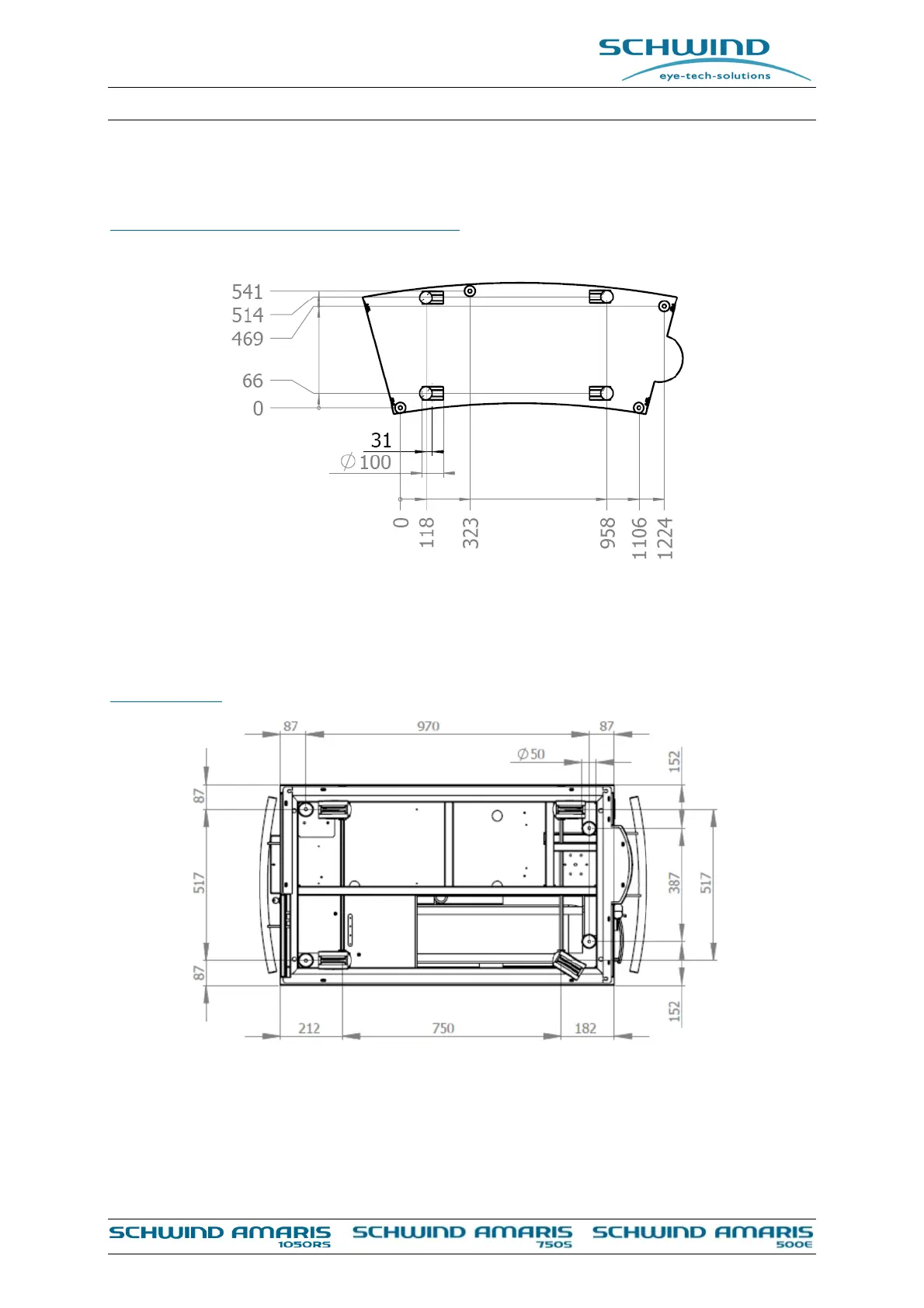

5.2.3 Arrangement of the AMARIS Laser Feet
AMARIS / AMARIS 750S / AMARIS 1050RS
All dimensions in mm.
Figure 5-11: Arrangement of AMARIS / AMARIS 750S / AMARIS 1050RS feet
AMARIS 500E
All dimensions in mm
Figure 5-12: Arrangement of AMARIS 500E feet
