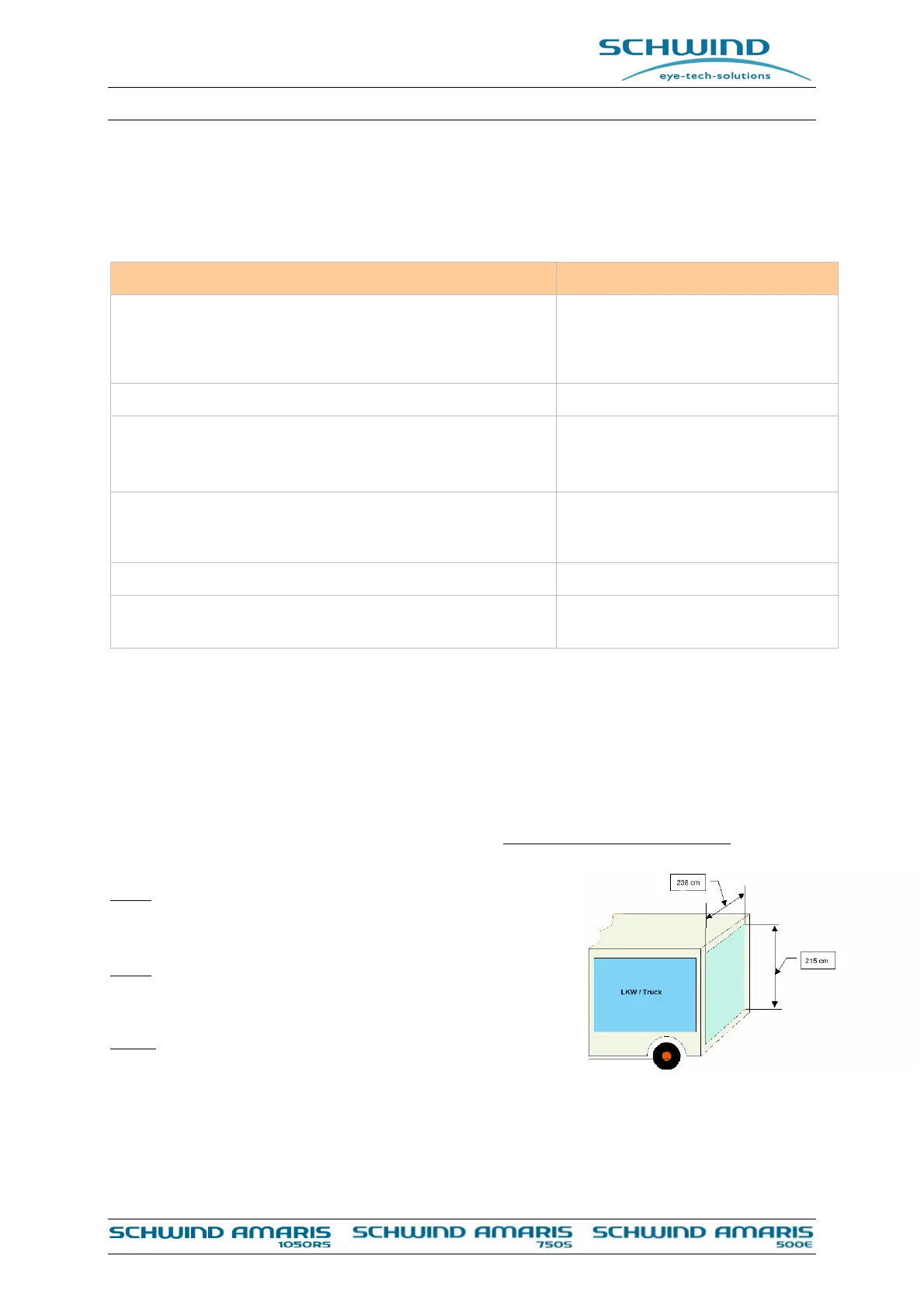

SCHWIND Amaris 500E - Shipping; Scope of Delivery; Packing of the Shipping Units; Figure 5-13: Truck Dimensions

USER MANUAL (Instruction for Use) SW 6.1
Installation
Version 6.1.6 dated 2020-01-31 EN Page 87 of 201
5.4 Shipping
5.4.1 Scope of Delivery
Description Article Number
SCHWIND AMARIS Excimer laser (incl. Panel PC and SW):
(AMARIS or AMARIS 500E or AMARIS 750S or AMARIS
1050RS)
16500 (AMARIS) or
16800 (AMARIS 500E) or
18500 (AMARIS 750S) or
18600 (AMARIS 1050RS)
SCHWIND CAM (software module for treatment planning)
12870
SCHWIND Patient Bed – manual traversable version 17275 (AMARIS/AMARIS 750S)
17260 (AMARIS 1050RS)
17250 (AMARIS 500E)
SCHWIND Patient Bed – upgrade to motorized traversable
version
18807
SCHWIND Product Documentation CD-ROM/DVD 16316xx
Accompanying Documentation “SCHWIND MEDICAL
PRODUCTS”
202160x-01 (en version)
202160x-02 (de version)
5.4.2 Packing of the Shipping Units
The complete shipping unit consists of the laser, optical system, PC and monitor, the device
housing, patient bed (optional), as well as components and consumables (refer to chapter 4.3
System Overview).
The several components of the AMARIS are packed separately and can be shipped by air, by
forwarding agency or as direct delivery. The delivery by air or by forwarding agency consists of
three wooden boxes with the following dimensions:
Box 1 Laser (incl. panel-PC, printer, microscope):
Dimensions: 1820 x 870 x 1590 mm
Gross weight: 670 kg (750S); 560 kg (500E)
Box 2 SCHWIND patient bed:
Dimensions: 2280 x 920 x 1030 mm
Gross weight: 355 kg / 377kg
Box 3 Components according to order:
(UPS (if applicable), transformer)
Dimensions: Max. 1280 x1230 x 1250 mm
Gross weight: 250 kg
Figure 5-13: Truck dimensions
The direct delivery will be carried out by a small truck.
