USER MANUAL (Instruction for Use) SW 6.1
Installation
Version 6.1.6 dated 2020-01-31 EN Page 76 of 201
Room Dimensions - AMARIS / AMARIS 750S / AMARIS 1050RS
All SCHWIND AMARIS excimer laser(s) are designed with a traversable (swivelling) bed for
optionally use with other medical devices. The mechanical end stop for out-swivelling the patient
bed can be set in steps of 10°, beginning at 30°, up to 90°.
AMARIS Standard Position
Min. room size: 2300 mm x 3500 mm (approx. 8.0 m²)
Recommended room size: 2900 mm x 3500 mm (approx.10.15 m²

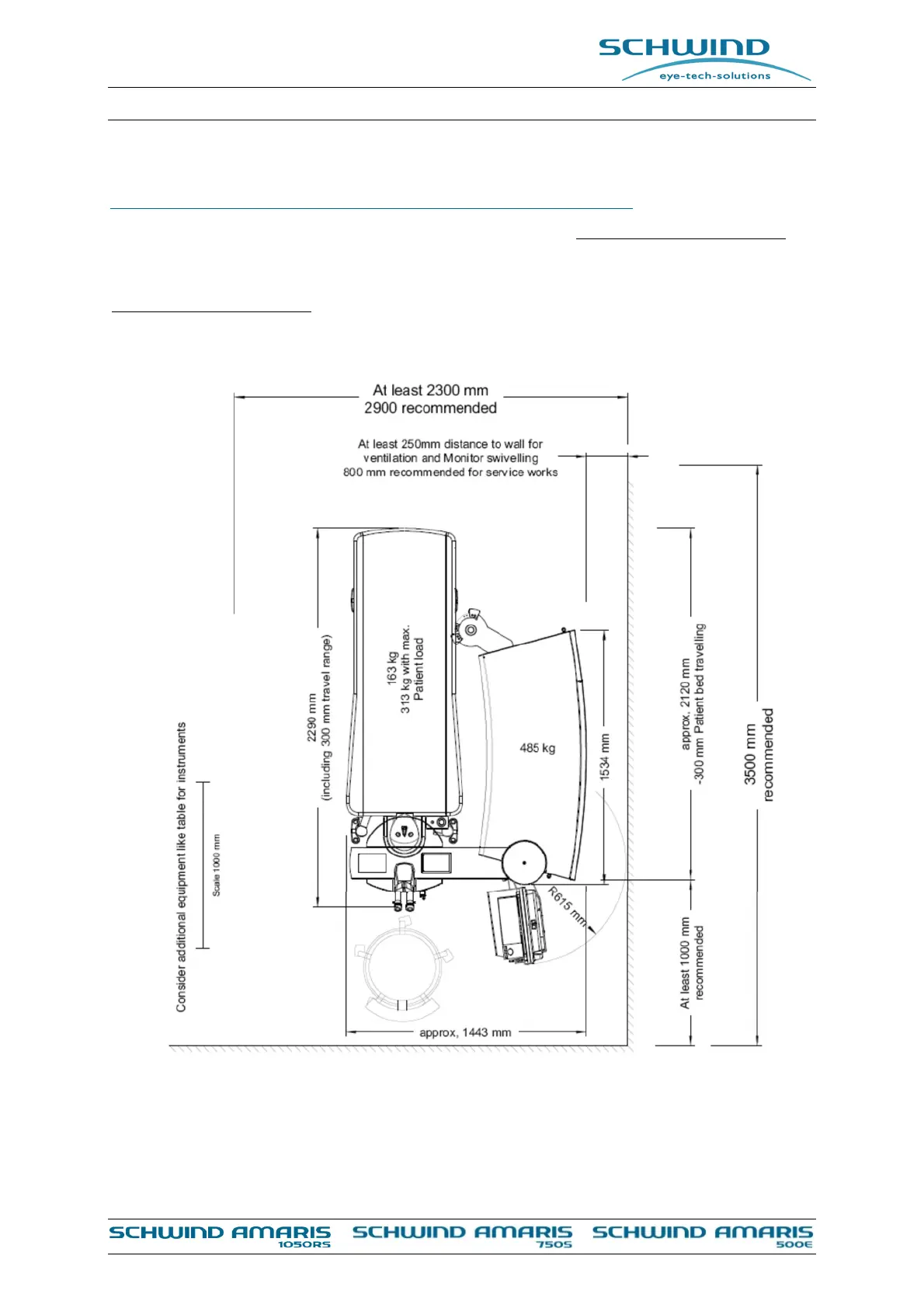

Figure 5-3: AMARIS / AMARIS 750S / AMARIS 1050RS with swivelling patient bed– standard position
Drawing is not shown in actual size
