4.10.2 Replacing the Partical Aspiration Nozzles
For replacing the double-channel nozzle for particle aspiration, pull up two metal latches holding
the nozzle and drag the nozzle out, than replace it with a new one, refer to chapter 10.3,
Maintenance of the Particle Aspiration System.
IMPORTANT NOTE
The Particle Aspiration System nozzle with integrated filters is a consumable and
has to be exchanged every 4 weeks, even if there have been no or few treatments
performed, in order to prevent the development of bacteria cells
The AMARIS Application software has an integrated check and will remind the user
to exchange the particle aspiration nozzle if the actual one is older than 28 days.
Refer also to chapter 10.3 Maintenance of the Particle Aspiration System.
IMPORTANT NOTE
It is not allowed to grease or oil the channels of the Particle Aspiration System as
evaporated substances may influence the performance of the laser system.
WARNING!
Do not mismatch the nozzles! Risk of under correction!
Do not use the nozzle of the Plume Evacuation System! Refer to chapter 4.11 Plume
Evacuation System.
4.10.3 Package Labelling of the Partical Aspiration Nozzle
Each nozzle of the Particle Aspiration System is
individually packed into a sealed airtight plastic bag.
The nozzles are available as a set of quantity 6 only.

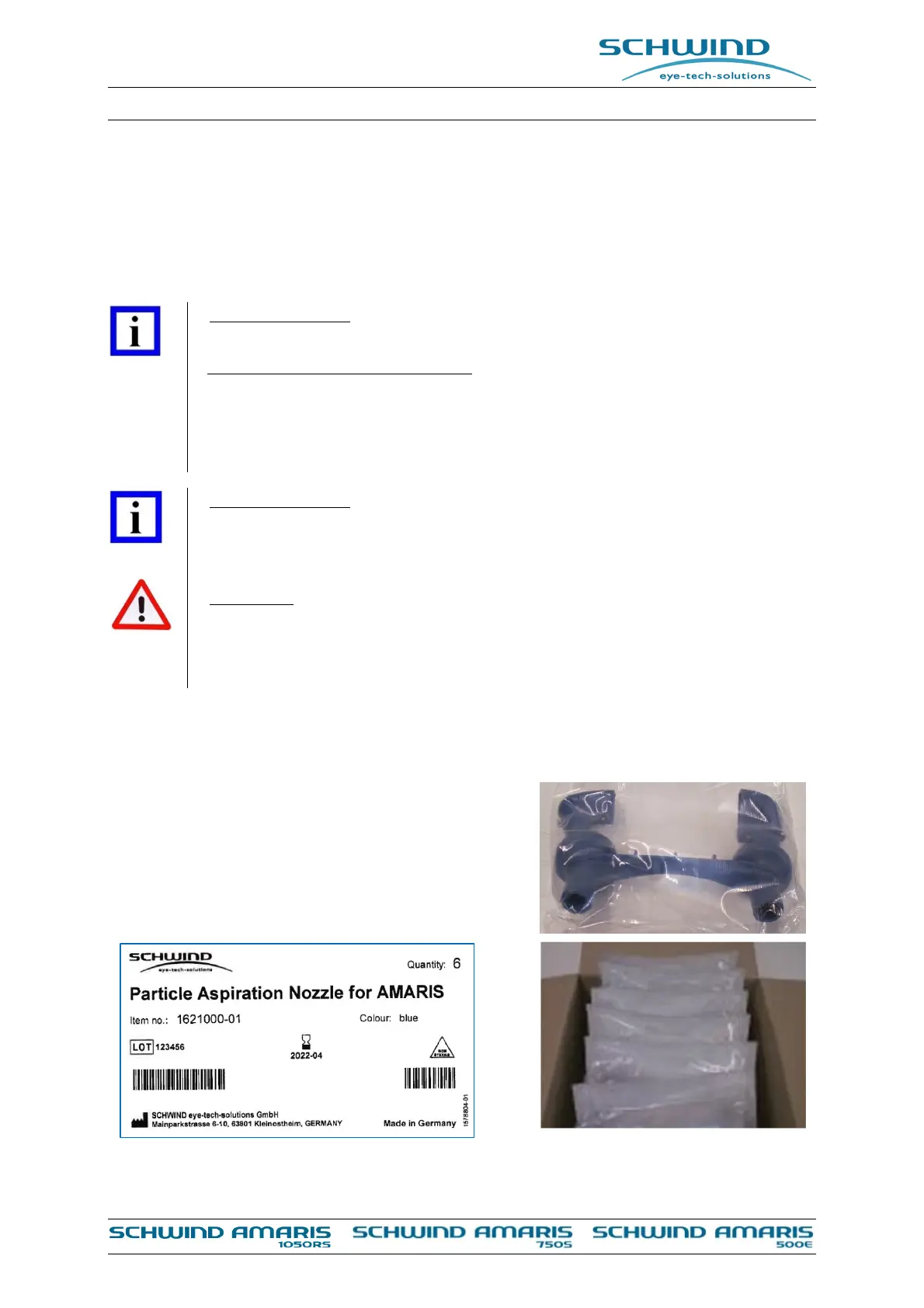

Figure 4-6: Type lable for packaging of partical aspiration nozzles, colour blue, 6 pcs
