SCHWIND Amaris 500E - Figure 2-6: Position of Connection Terminal Label AMARIS 750 S;1050 RS; Figure 2-7: Label Connection Terminal AMARIS 500 E

USER MANUAL (Instruction for Use) SW 6.1
Safety
Version 6.1.6 dated 2020-01-31 EN Page 38 of 201
SCHWIND AMARIS / AMARIS 750S / AMARIS 1050RS
The label is placed inside the compartment
door, see figure to the right.

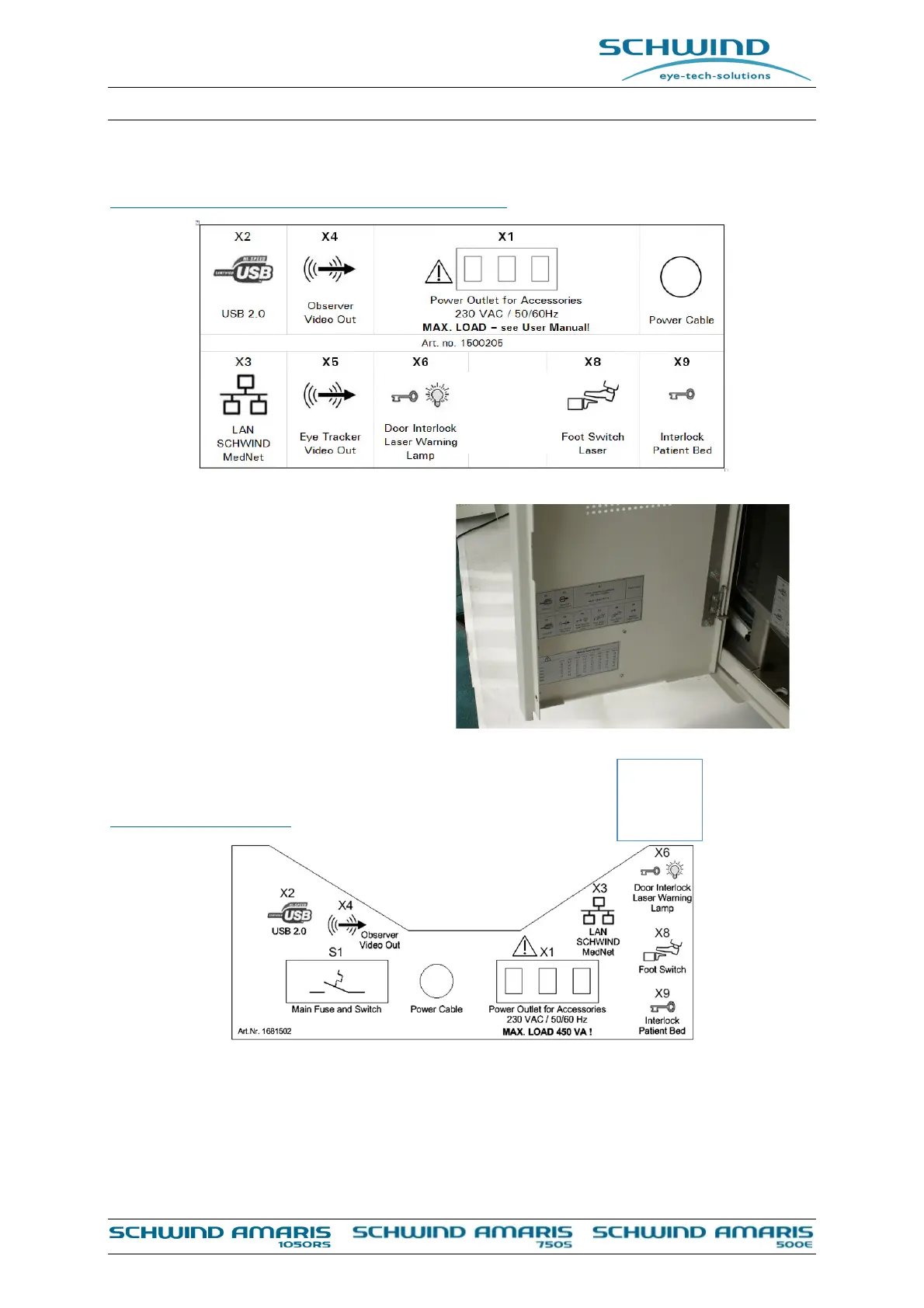

Figure 2-5: Position of ”Connection Terminal”
label AMARIS 750S/1050RS
SCHWIND AMARIS 500E
Figure 2-6: Label “Connection Terminal AMARIS 500E”
The label is placed inside the compartment door, see Figure 2-5.
Spare for
label
“Plume
Evacuator
” (option)
Spare for
label
“Plume
Evacuator
” (option)
