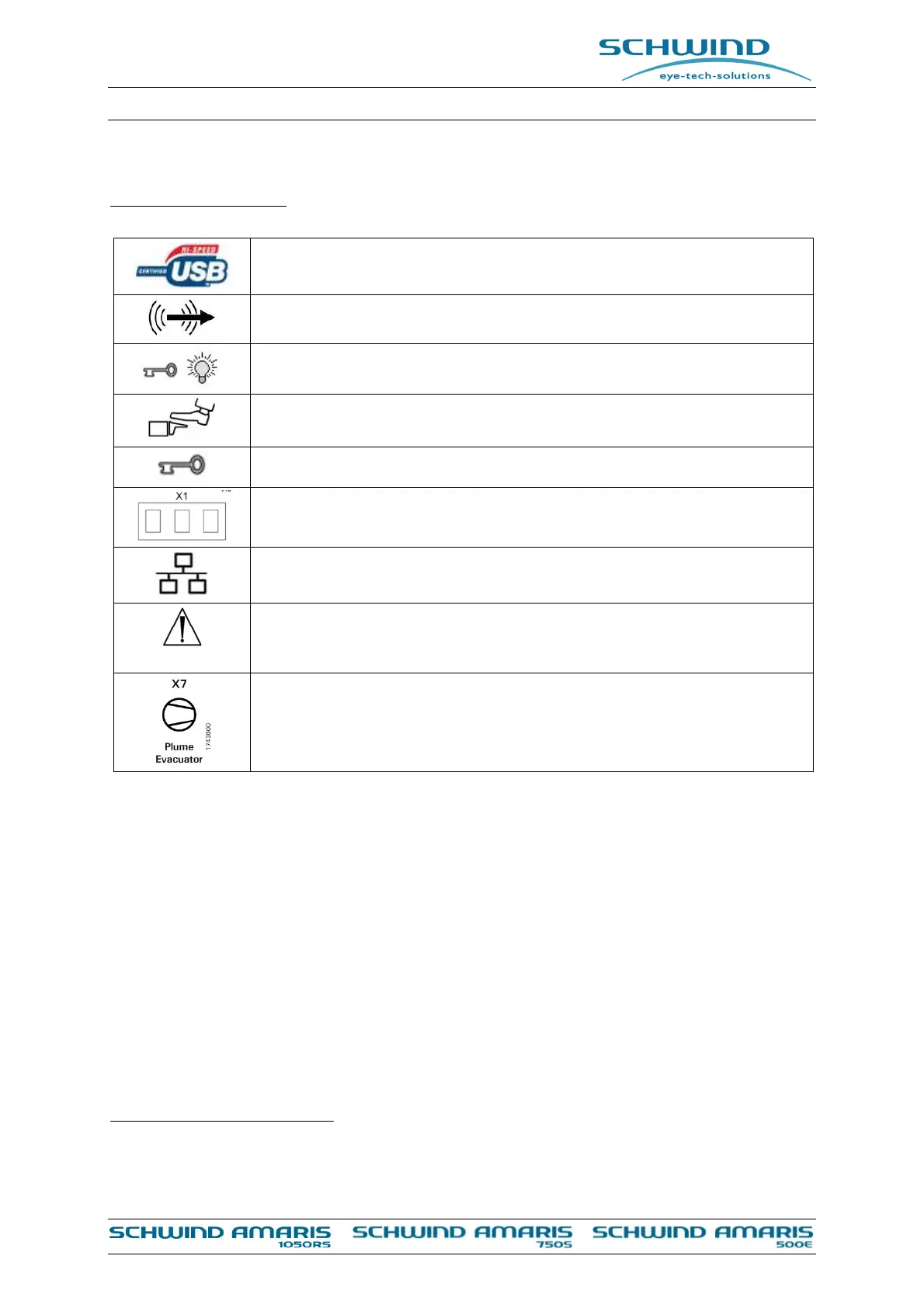

Explanation of Symbols
USB 2.0 connection to the panel PC for printer connection
USB logo 2.0
Eye Tracker Video Out. Observer Video Out for connection of DVD recorder
and/or external monitor.
Door interlock and warning light acc. IEC 60601-2-22 for laser safety.
Foot switch laser
Connection of the foot switch to the device.
Interlock connection for SCHWIND Patient Bed
Power outlet socket for components
230 VAC / 50/60Hz
3
RJ45 LAN connection
Safe and efficient operation of the system is required. Refer to WARNING
note in chapter 2.7 Electrical Safety - Connection of Devices to External
Plugs – “Potential Free Power Supply Output”
Connection for external Plume Evacuator (option)
3
For max. load of power outlet sockets – refer to chapter 2.7 Electrical Safety - Connection of Devices
to External Plugs - “Potential Free Power Supply Output”
