Section 02 ENGINE
Subsection 07 (PTO HOUSING AND MAGNETO)
smr2009-022-101_c

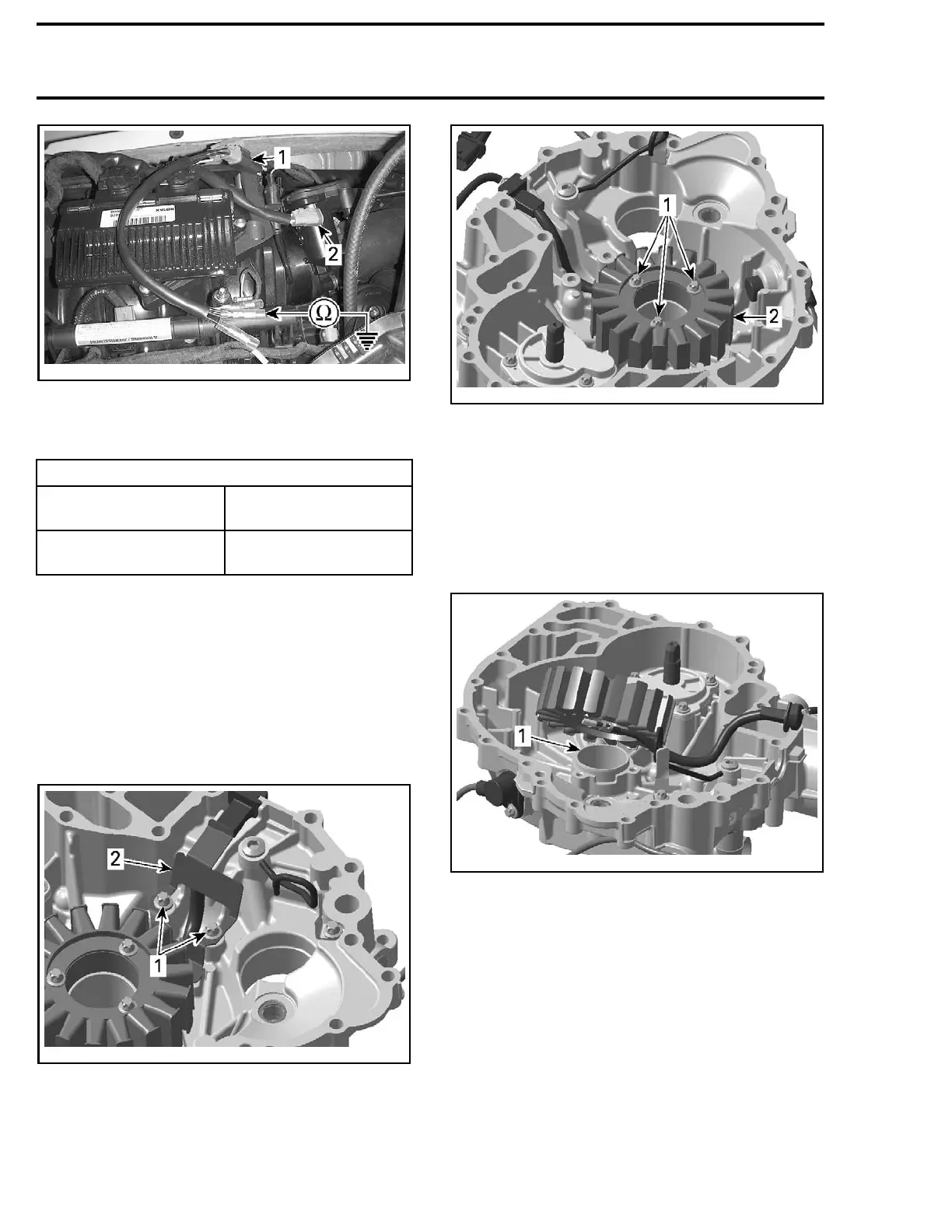

STATOR INSULATION TEST
1. Connect adapter to magneto stator connector
2. Leave vehicle harness disconnected
Read resistance.
STATOR INSU
LATION TEST
TERMINAL
RESISTANCE @
20°C (68°F)
Any YELLOW wire and
engine ground
Infinity (open circuit)
If there is a resistance or continuity to engine
ground, the stator coils and/or the wiring is
grounded and need to be repaired or replaced.
Stator Removal
Remove PTO housing, see procedure in this sub-
section.
Remove stator cable holding plate from PTO hous-
ing.
smr2009-022-011_a
TYPIC
AL
1. Screws
2. Holding plate
Remov
e stator retaining screws.
Remove stator from PTO housing.
smr2009-022-012_a
1. Stator screws
2. Stator
Stator Installation
For installation, reverse the removal procedure.
However, pay attention to the following.
NOTE: The position of the stator in the PTO hous-
ing is determined by a key on the stator and a
notch in the magneto housing.
smr2009-022-013_a
1. Notch for stator
Place
the stator cable rubber grommet in the
notch
provided in the PTO housing.
80 smr2009-022
