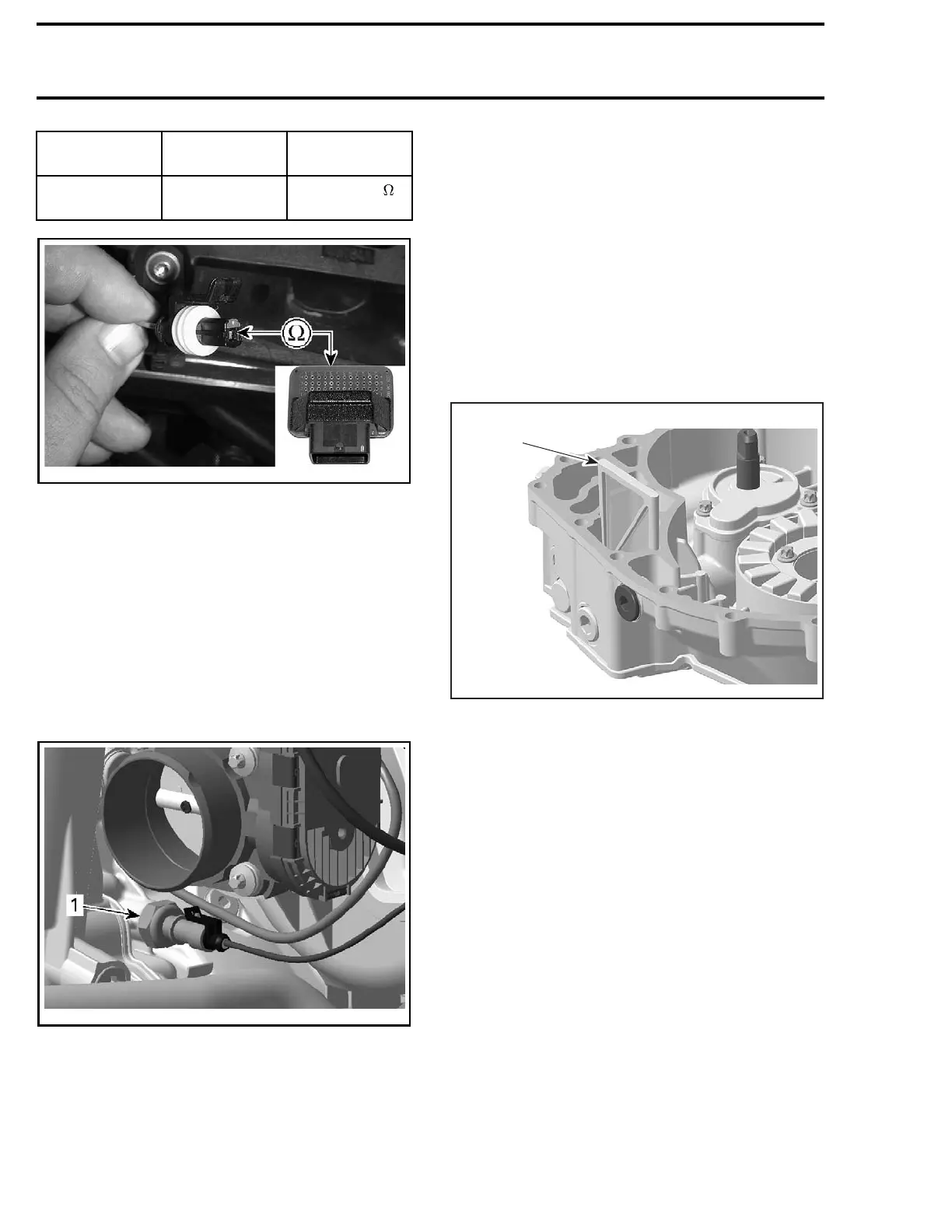

Section 02 ENGINE
Subsection 08 (LUBRICATION SYSTEM)
OPS
CONNECTOR
ECM
ADAPTER
RESISTANCE
Pin 1 Pin E3
Closeto0
(continuity)
smr2009-023-102_b
If continuity test failed, repair or replace the con-
nector and wiring between ECM connector and
OPS.
If continuity test succeeded, check the ECM. Re-
fer to
EFI
subsection.
Oil Pressure Switch Removal
Remove the throttle body. Refer to
ELECTRONIC
FUEL INJECTION (EFI)
subsection.
Unplug the
OPS connector.
Unscrew and remove the oil pressure switch.
smr2009-023-005_a
1. OPS
Oil Pressure Switch Installation
Apply LOCTITE 243 (BLUE) (P/N 293 800 060) on
threads of oil pressure switch.
Torque oil pressure switch to 9 N•m (80 lbf•in).
PTO OIL STRAINER
NOTE: The oil strainer does not need to be
cleaned at every oil change. Clean it during other
inspections, especially when the engine is disas-
sembled.
PTO Oil Strainer Removal
Remove engine oil. See procedure in
OIL
CHANGE
in this subsection.
Remove the PTO housing. Refer to
PTO HOUS-
ING AND MAGNETO
subsection.
Remove the oil strainer.
1
R1503motr117A
1. PTO oil strainer
PTO Oil Strainer Cleaning and
Inspection
Clean oil strainer with a part cleaner then use an
air gun to dry it.
Check and clean the oil outlet area for dirt and
other contaminations.
96 smr2009-023
