Section 07 BODY AND HULL
Subsection 02 (BODY)

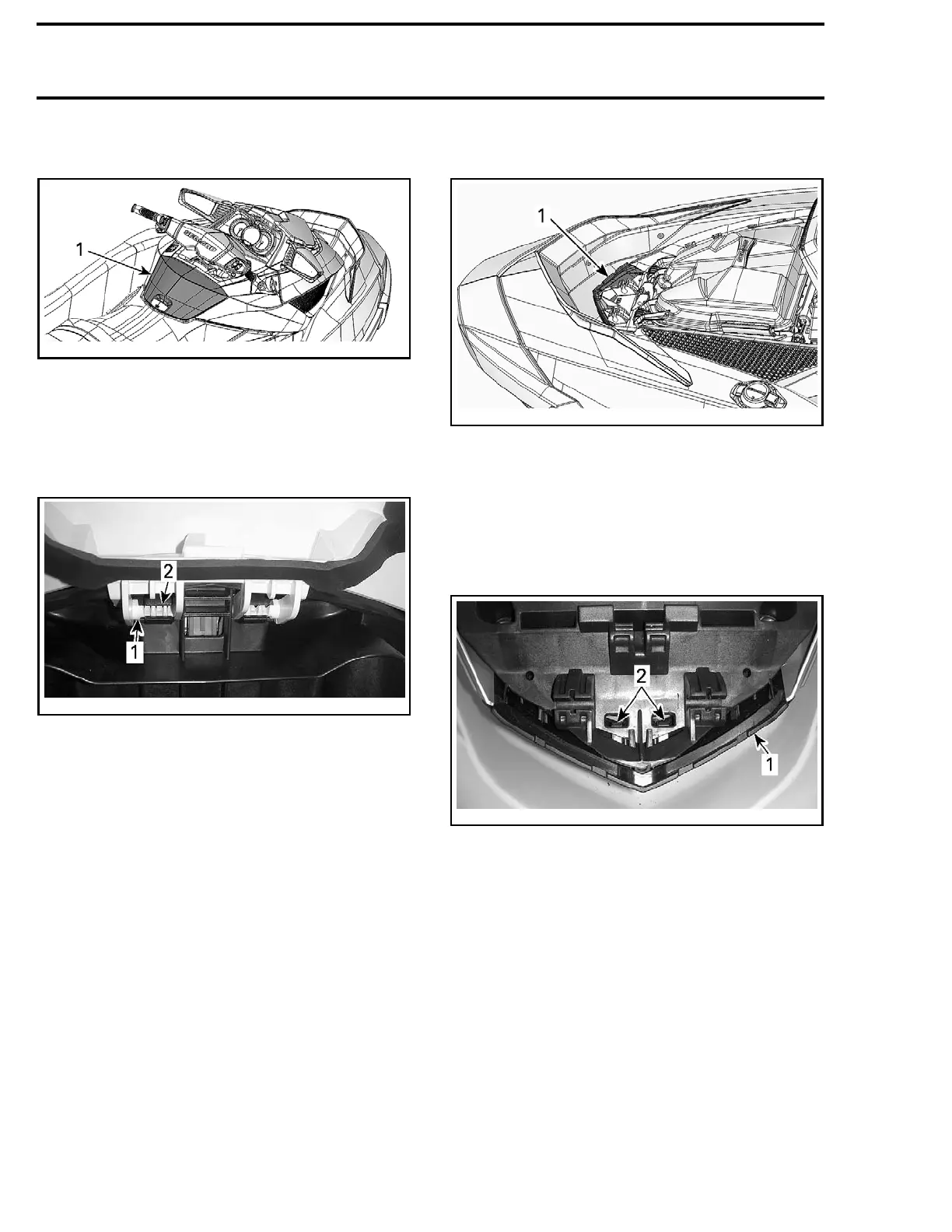

GLOVE BOX COVER
smr2009-042-055_a
1. Glove box cover
Glove Box Cover Removal
1. Move steering in its upper position.
2. Open glove box cover until cover hinges are
aligned with front body module openings.
smr2009-042-025_a
1. Glove box cover hinge
2. Front body module opening
3. Pull the bottom of cover gently to release
hinges.
Glove Box Cover Installation
Reverse the removal procedure.
FRONT GRILLE
smr2009-042-056_a
LOCATED UNDER STORAGE COMPARTMENT COVER
1. Front grille
Front Grille Removal
1. Remove the
STORAGE COMPARTMENT
COVER
, see procedure in this subsection.
2. Press on both tabs securing front grille to front
body module.
smr2009-042-054_a
1. Front grille
2. Retaining tabs
3. Remove grille.
Front Grille Installation
The installation is the reverse of the removal pro-
cedure.
478 smr2009-042
