Section 03 ELECTRONIC MANAGEMENT SYSTEMS
Subsection 03 (COMMUNICATION TOOLS AND B.U.D.S. SOFTWARE)

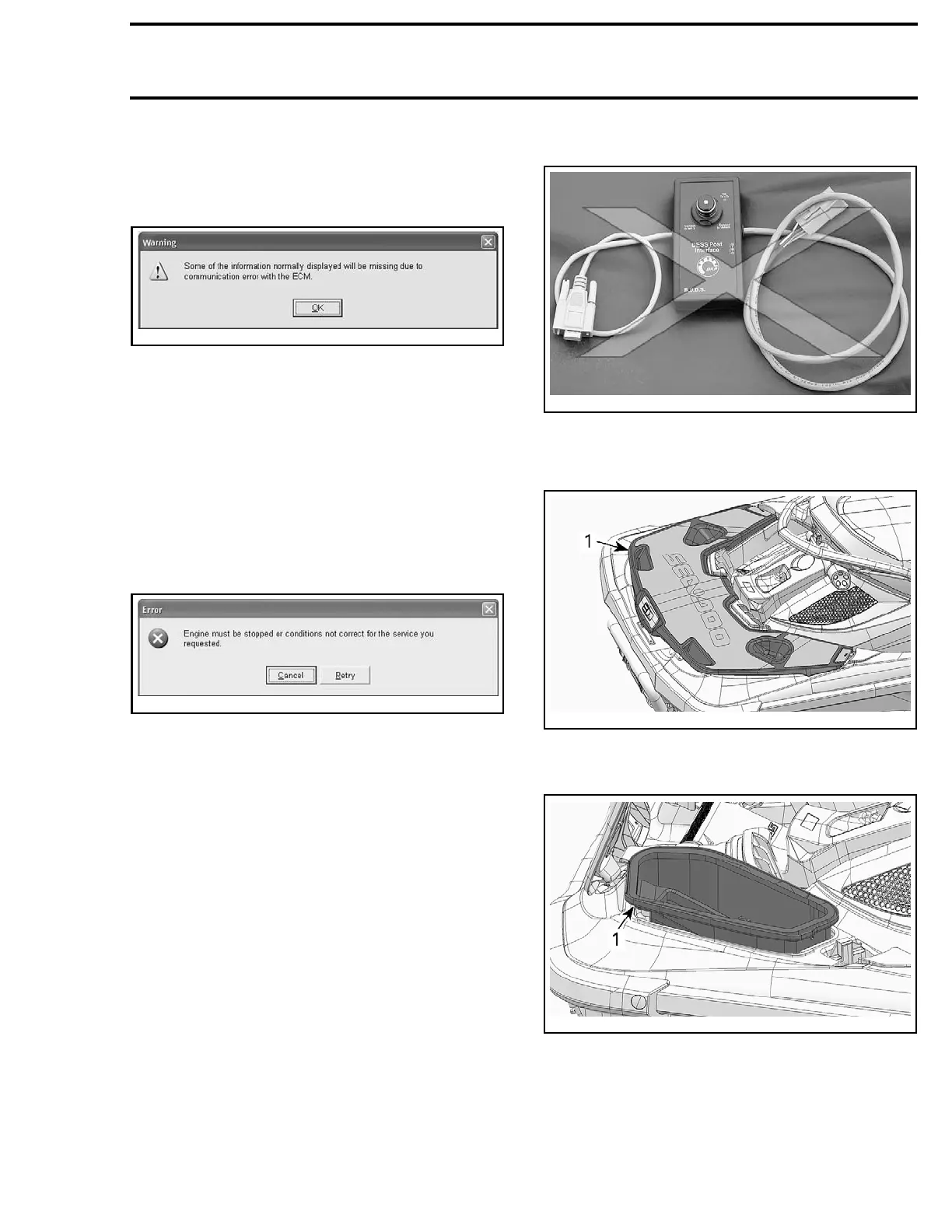

Message Box: "Some of the Information
Normally Displayed..."
If the following message box is displayed in
B.U.D.S.:
smr2009-028-016
1. Click on the OK button in B.U.D.S.
2. Remove and r
einstall the D.E.S.S. key to make
a good conta
ct with its post.
3. Briefly press the vehicle START button to acti-
vate the ECM. Do not hold START button to
avoid engine starting.
4. Click on the Read buttoninB.U.D.S.
Message Bo
x: "Engine must be Stopped..."
If the following message box is displayed in
B.U.D.S.:
smr2009-
028-015
1. Click on the Cancel button in B.U.D.S.
2. Briefly press the vehicle START button to acti-
vate the ECM. Do not hold START button to
avoid engine starting.
3. Click on the Write button in B.U.D.S.
If message reappears, do the following:
1. Click on the Cancel button in B.U.D.S.
2. Remove the D.E.S.S. key.
3. Press the vehicle START button to activate the
ECM.
4. Reinstall the D.E.S.S. key and make sure it has
a proper contact with its post.
5. Click on the Write button in B.U.D.S.
PROCEDURES
MPI-2
The MPI-2 (Multi-Purpose Interface-2) in conjunc-
tion with the MPI-2 diagnostic cable is used with
B.U.D.S. software to communicate with the ECM
(engine control module) and other modules.
NOTE: Never use the D.E.S.S. POST INTERFACE.
529036019_
a
Connections with Vehicle
Open the aft
re-boarding platform.
ssi2009-002-002_a
1. Re-boarding platform
Remove the starboard storage bin.
ssi2009-002-003_a
1. Starboard storage bin
Disc
onnect the 6-pin diagnostic connector.
smr2009-028 181
