Section 04 FUEL SYSTEM
Subsection 01 (INTELLIGENT THROTTLE CONTROL (iTC))

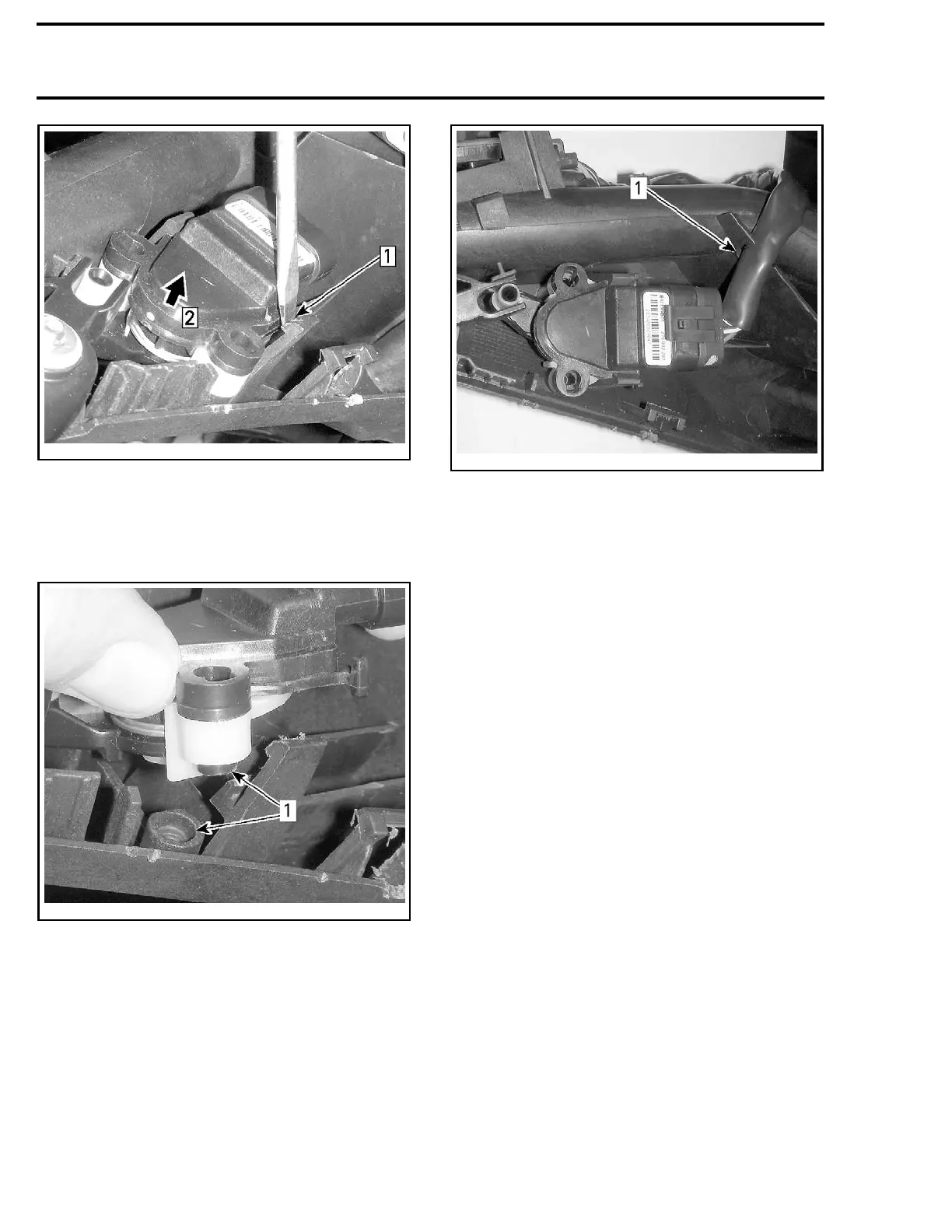

smr2009-030-100_a
Step 1: Pry out
Step 2: Pull out sensor
Revert removal procedure for installation. Pay at-
tention to the following.
Align sensor pins into their holes.
smr20
09-030-101_a
1. Align pin into hole
Snap sensor in position. Ensure it is properly
locked in place.
Route harness into the notched bracket.
smr2009-030-102_a
1. Route harn
ess here
When installation is completed, ensure throttle
lever works properly.
CRUISE SWITCH
Cruise Switch Test
If pressing the cruise switch does not engage the
CRUISE or SLOW SPEED modes, test the cruise
switch as per following procedure.
1. Connect t
he watercraft to the latest B.U.D.S.
software
. Refer to
COMMUNICATION TOOLS
AND B.U.
D.S. SOFTWARE
subsection for de-
tails.
2. In B.U.D.S., select the Monitoring tab then the
Cluster tab.
3. Press the vehicle cruise button and look for the
Cruise indicator light to come on in the Switch
inputs area.
216 smr2009-050
