Section 05 ELECTRICAL SYSTEM
Subsection 02 (POWER DISTRIBUTION)
GENERAL
It is highly recommended to disconnect the bat-
tery when replacing any electric or electronic com-
ponent.
WARNING
Always disconnect battery exactly in the
specified order, BLACK (-) cable first, RED (+)
cable last. Always reconnect BLACK (-) cable
last. Do not place tools on battery.
COMPONENT DESCRIPTION
Fuse Boxes
Fuse Box Location

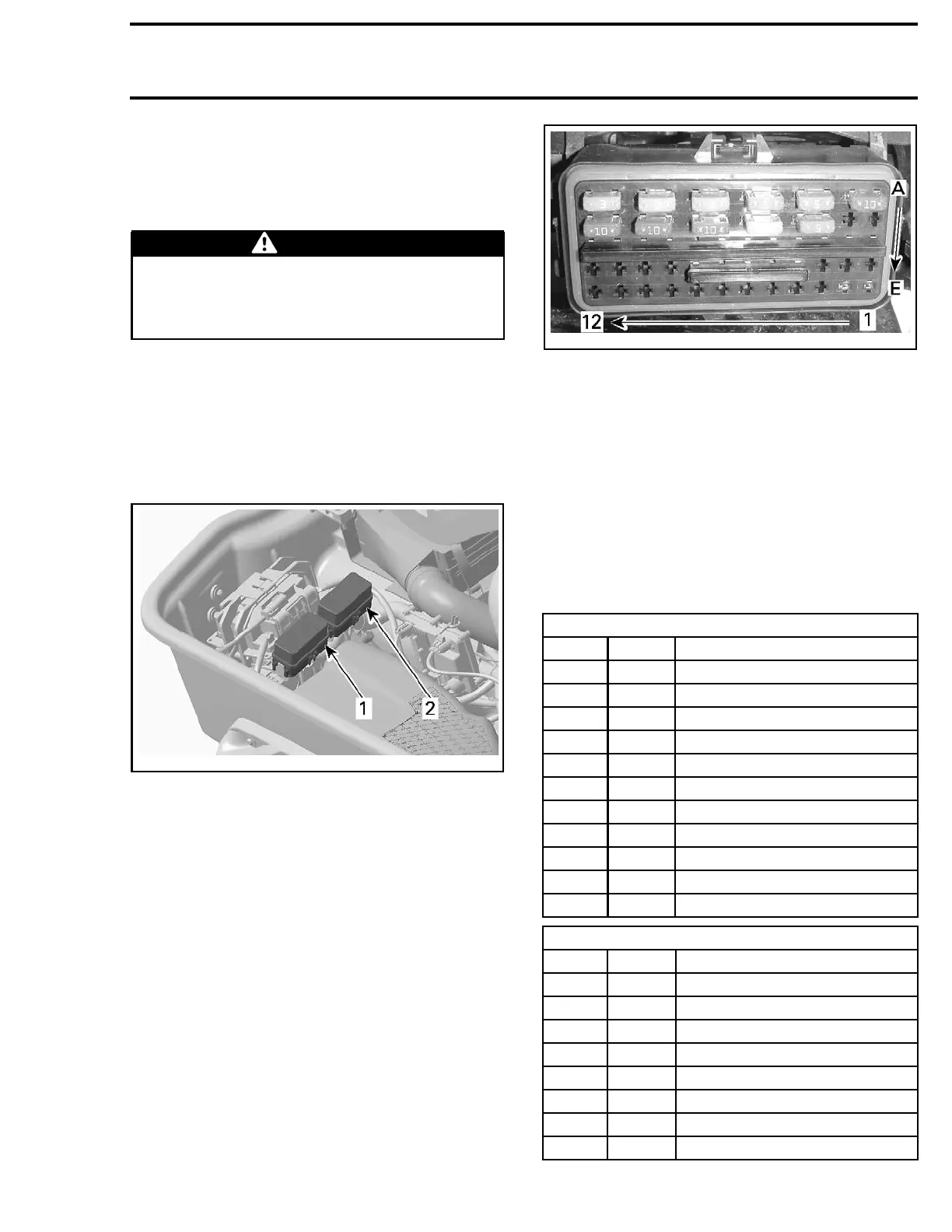

To access the fuse boxes, open the boarding plat-
form and remove the RH storage bin.
2009-027-009_a
1. Fuse box
#1
2. Fuse box #2
Fuse Bo
x Pin Out Identification
Fuse box contacts are identified on the back of the
fuse box (wire side) with letters to identify rows,
and numbers to identify columns. The combined
letter and number identify the coordinate of a con-
tact that is used in the wiring diagram.
Since the fuses and fuse contacts are normally ac-
cessed from the front of the fuse box, the follow-
ing illustration gives the coordinates as seen from
the front.
smr2009-027-011_d
TYPICAL - CONTACT COORDINATES (FRONT VIEW FB1)
Coordinates are used to identify the terminal po-
sition in the fuse box. For example, if B5 (or FB1-
B5) is given to reference a terminal, it would be
located at the intersection of row B and column 5
in fuse box 1.
NOTE: Contact coordinates in FB2 are identified
using the same method.
NOTE: Although the contacts in the fuse boxes
are in reality sockets, they will be referred to as
pin numbers (ex. pin B6) in the procedures.
Fuse Identification
FUSE BOX 1 (FB1)
FUSE # RATING DESCRIPTION
1
3A
Gauge (Information center)
23A
CAPS
3 3 A Depth sounder (if so equipped)
4
5A
Starter solenoid
5
5 A iBR control
6 10 A Fuel pump
7
10 A
Cyl. 1 (ignition coil and injection)
810A
Cyl. 2 (ignition coil and injection)
910A
Cyl. 3 (ignition coil and injection)
10 3 A
O.T.A.S. switch
11
5A
iS control
FUSE BOX 2 (FB2)
FUSE # RATING DESCRIPTION
15
30 A
Charge (Charging system)
16 30 A
iS (Power)
17
30 A Battery
18 30 A iBR (Power)
20 15 A
ECM (Main power)
21 3 A
START/STOP switch
22 15 A Diagnostic Tool
23 3 A
GPS
smr2009-049 283
