Section 02 ENGINE
Subsection 01 (ENGINE REMOVAL AND INSTALLATION)
ENGINE REMOVAL AND INSTALLATION
SERVICE TOOLS
Description Part Number Page
ALIGNMENT SHAFT ADAPTER .................................................... 529 035 719 ..................................... 20–21
ALIGNMENT SHAFT SUPPORT.................................................... 529 035 506 ........................................... 21
ALIGNMENT SHAFT ..................................................................... 295 000 141 .....................................20, 22
ENGINE ALIGNMENT PLATE........................................................ 529 036 170 ........................................... 21
FUEL HOSE DISCONNECT TOOL ................................................ 529 036 037 ........................................... 17
SERVICE PRODUCTS
Description Part Number Page
LOCTITE 243 (BLUE)..................................................................... 293 800 060 .....................................20, 23
PULLEY FLANGE CLEANER ......................................................... 413 711 809 ........................................... 20
GENERAL
During assembly/installation, use torque values
and service products from exploded views in the
appropriate sections.
Clean threads before applying a threadlocker. Re-
fer to
SELF-LOCKING FASTENER
and
LOCTITE
APPLICATION
at the beginning of this manual for
complete procedure.
WARNING
Torque wrench tightening specifications
must be strictly adhered to.
Locking devices (e.g.: locking tabs, elastic
stop nuts, self-locking fasteners, cotter pin,
etc.) must be replaced with new ones.
Hoses, cables or locking ties removed during a
procedure must be reinstalled as per factory stan-
dards.
PROCEDURES
ENGINE
Engine Removal
1. Place vehicle at workstation that will have ac-
cess to a chain block, a hoist or other suitable
lifting equipment.
2. Remove the moving d
eck. Refer to
BODY
sub-
section.
3. Remove the rear ventilation box.

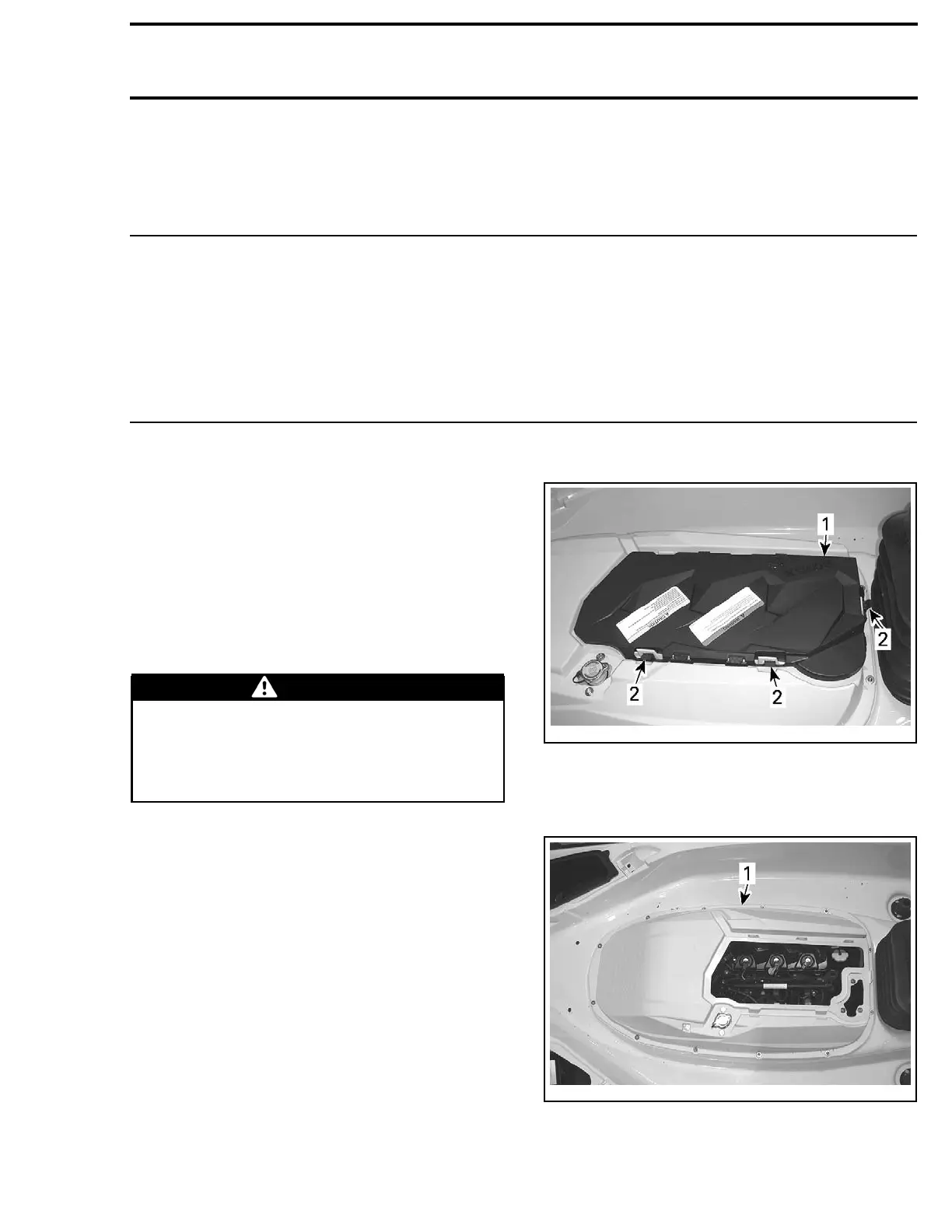

smr2009-016-001_a
1. Vent box
2. Retaining latches
4. Remove the deck extension. Refer to
BODY
subsection.
smr2009-016-002_a
1. Deck extension
5. Remove the air intake silencer. Refer to
AIR IN-
TAKE SYSTEM
subsection.
smr2009-016 15
To Next Page
