Section 06 STEERING AND PROPULSION
Subsection 02 (iBR AND VTS)
IBR GATE LOCKING SLEEVE
REPLACEMENT
NOTE: The iBR locking sleeve (iBR key) should be
replaced if it is cracked, broken, show signs of ad-
vance wear, is loose fitting in the "U" arm or on the
iBR actuator shaft, or every 100 hours as per the
maintenance schedule.

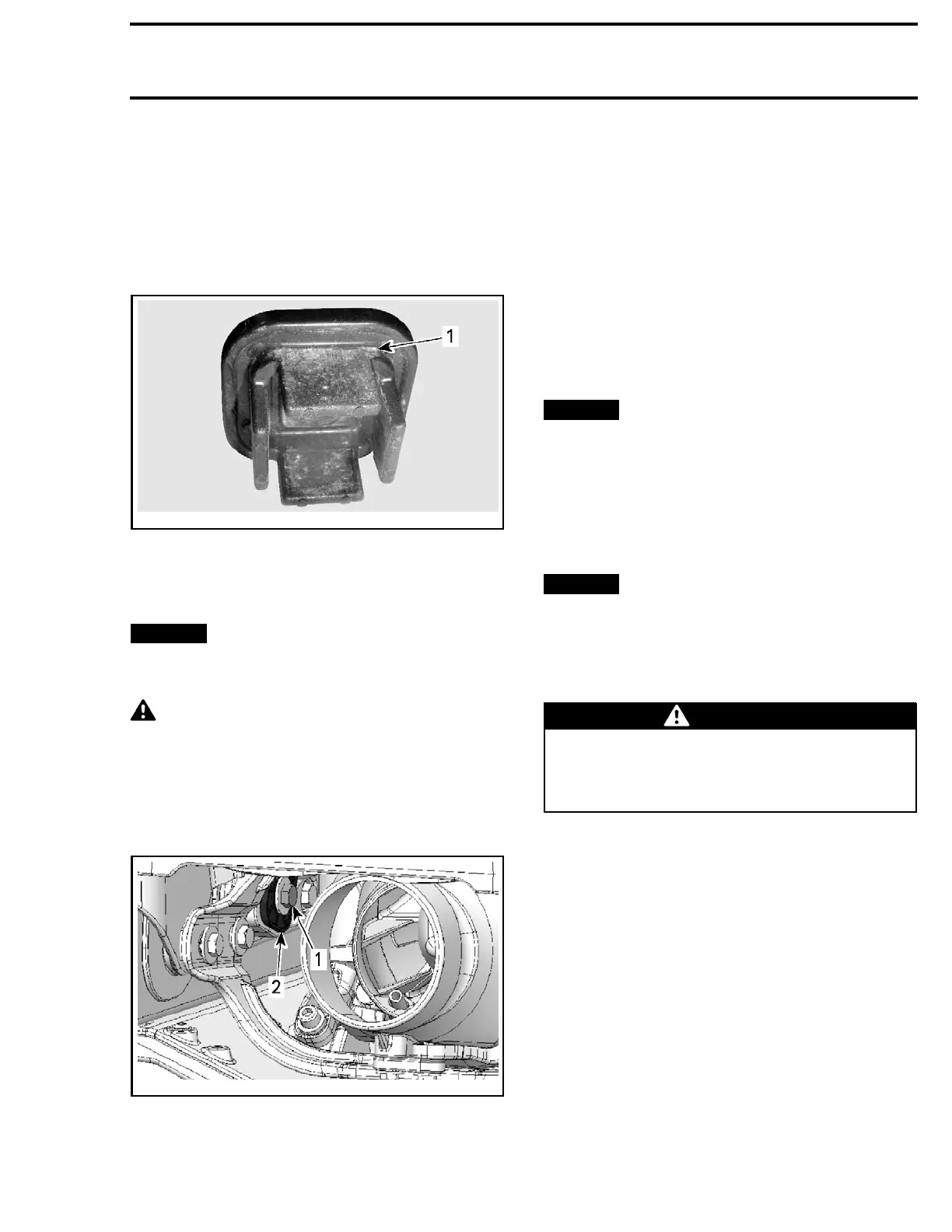

smr2009-038-020_a
1. Worn locking sleeve
1. Move the iBR gate to the forward position (full
up), refer to
iBR OVERRIDE
in
SYSTEM DE-
SCRIPTION (iBR)
of this subsection.
NOTICE
Do not try to move the iBR gate by
hand if the locking sleeve (iBR key) is installed
or component damage will occur.
CAUTION Wait at least 5 minutes for wa-
tercraft electrical power to shut down before
working in the iBR gate area.
2. Remove and discard the hexagonal screw(s) se-
curing the iBR gate locking sleeve (iBR key) and
remove the sleeve from the iBR "U" arm and ac-
tuator.
smr2009-038-002_a
1. Hexagonal screw(s)
2. Locking sleeve
3. Insert a new locking sleeve.
4. Install new screw(s) with Scotch Grip thread-
locker and torque as specified in exploded view.
INSPECTION
IBR SYSTEM FUNCTIONAL TEST
Test on Dry Land
NOTE: This test requires two people. One person
to start watercraft and operate controls, and one
person to observe iBR gate movement.
1. Provide adequate ventilation of exhaust gases
or move watercraft outside.
NOTICE
Do not install an exhaust ventilation
hose in the iBR gate area or damage may oc-
cur when the iBR gate moves downward dur-
ing operation.
2. Connect a water hose to the watercraft to pro-
vide exhaust system cooling when operating
engine. Refer to
EXHAUST SYSTEM
subsec-
tion for procedure.
NOTICE
– Ensure there are no tools or other object that
may interfere with the iBR gate movement.
– Do not run watercraft for more than 2 min-
utes out of water or damage may occur to
drive shaft seal carrier.
WARNING
The person observing the iBR gate move-
ment must stand to the side of the stern well
clear of the iBR gate and pump nozzle, and
in full view of the operator.
3. Start watercraft and allow to run at idle RPM.
NOTE: If
iBR gate was not in the neutral position,
it will m
ove to the neutral position on engine start
up.
4. Depress the throttle lever slightly and visually
confirm the iBR gate moves to the forward po-
sition (up to the VTS trim position), then release
throttle. The iBR gate must remain in the for-
ward position.
5. Depress the iBR lever fully and confirm the iBR
gate moves to the full down position.
6. Relea
se the iBR lever completely and confirm
the i
BR gate moves to the neutral position.
7. Shut engine off and disconnect water hose.
