Section 06 STEERING AND PROPULSION
Subsection 02 (iBR AND VTS)

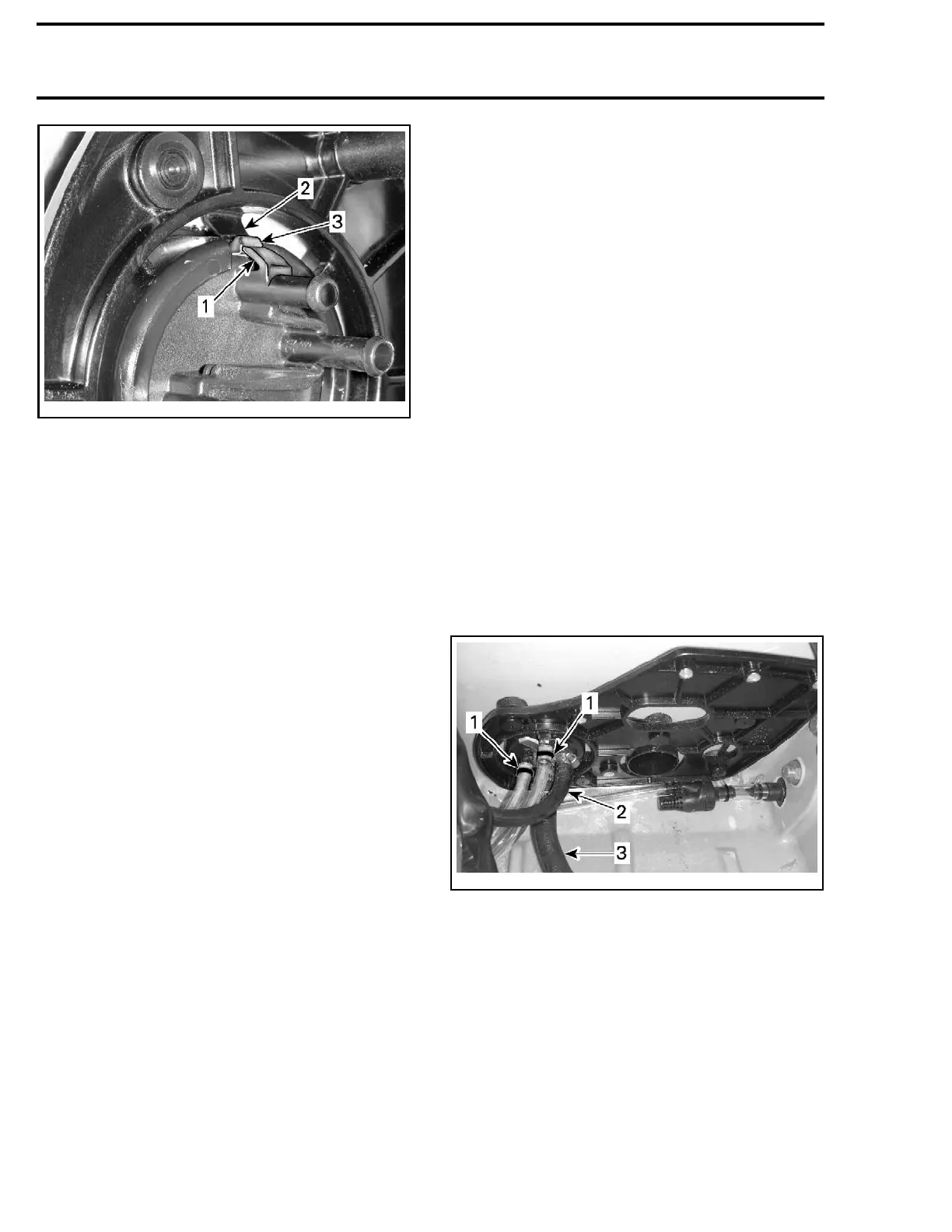

smr2009-043-008_a
TYPICAL - MODEL WITH PLASTIC RETAINING TABS
ILLUSTRATED
1. Fitting plate tab
2. Inner plate tab
3. Outer plate tab to compress
9. Pull the inner support plate off the outer support
plate.
10. Pull the outer support plate from the hull.
iBR Support Plate Installation
RH Support Plate Installation
1. Ensure formed seals are in good condition and
properly installed on each support plate.
2. Position the RH inner support plate in front of
its mounting position in the hull.
3. As you hold the inner support plate, insert ex-
haust fitting on the outer support plate through
the hull. Push the outer plate in until it snaps
onto the inner plate.
4. Install 2 new hexagonal screws to secure iBR
support plates and torque as per exploded view.
5. Install the exhaust hose on the support plate
fitting and torque the gear clamp to 4 N•m
(35 lbf•in).
6. Install the battery, refer to
CHARGING SYSTEM
subsection.
7. Install remaining parts in the reverse order of
removal.
LH Support Plate Installation
1. Ensure formed seals are in good condition and
properly installed on each support plate.
2. Position the LH inner support plate in front of
its mounting position in the hull.
3. As you hold the inner support plate, insert the
round extension on the outer support plate
through the hull. Push the outer plate in until it
snaps onto the inner plate.
4. Install 5 new hexagonal screws to secure iBR
support plates and torque as per exploded view.
5. Install the fitting plate, refer to
FITTING PLATE
in this subsection.
6. Install remaining parts in reverse order of re-
moval. Refer to appropriate subsections for
procedures, products and torques.
FITTING PLATE
The fitting plate connects the bailer and pressure
hoses inside the hull to the hoses that are con-
nected to the jet pump. It also provides the drain
fitting for the intercooler drain hose.
Fitting Plate Removal
Models With a Metal Retainer on Fitting Plate
NOTE: The metal fitting plate retainer in the fol-
lowing step is applicable to certain models.
1. Remove the iBR actuator for access to the fit-
ting plate, refer to
iBR ACTUATOR
in this sec-
tion.
2. Disconnect the four hoses connected to the fit-
ting plate (inside hull).
smr2009-043-006_a
TYPICAL
1. Bailer
hoses (x2)
2. Intercooler bleed hose
3. Pump water pressure hose
3. Remov
e the hexagonal screw and metal re-
taine
r from the fitting plate.
400 smr2009-037
