Section 09 WIRING DIAGRAM
Subsection 02 (CONNECTOR INFORMATION)
CONNECTOR INFORMATION
SERVICE TOOLS
Description Part Number Page
CRIMPING TOOL (HEAVY GAUGE WIRE) .................................... 529 035 730 ......................................... 526
ECM ADAPTER TOOL................................................................... 529 036 166 ......................................... 523
ECM TERMINAL REMOVER 2.25................................................. 529 036 175 ......................................... 523
ECM TERMINAL REMOVER 3.36................................................. 529 036 174 ......................................... 523
SERVICE TOOLS – OTHER SUPPLIER
Description Part Number Page
AMP TERMINAL EXTRACTOR...................................................... 726503-1 ......................................... 525
DELPHI TERMINAL EXTRACTOR ................................................. 12094429 .........................................524
GM TERMINAL EXTRACTOR........................................................ 12094430 .........................................524
PROCEDURES
MAGNETO AND ENGINE
CONNECTOR (DEUTSCH)

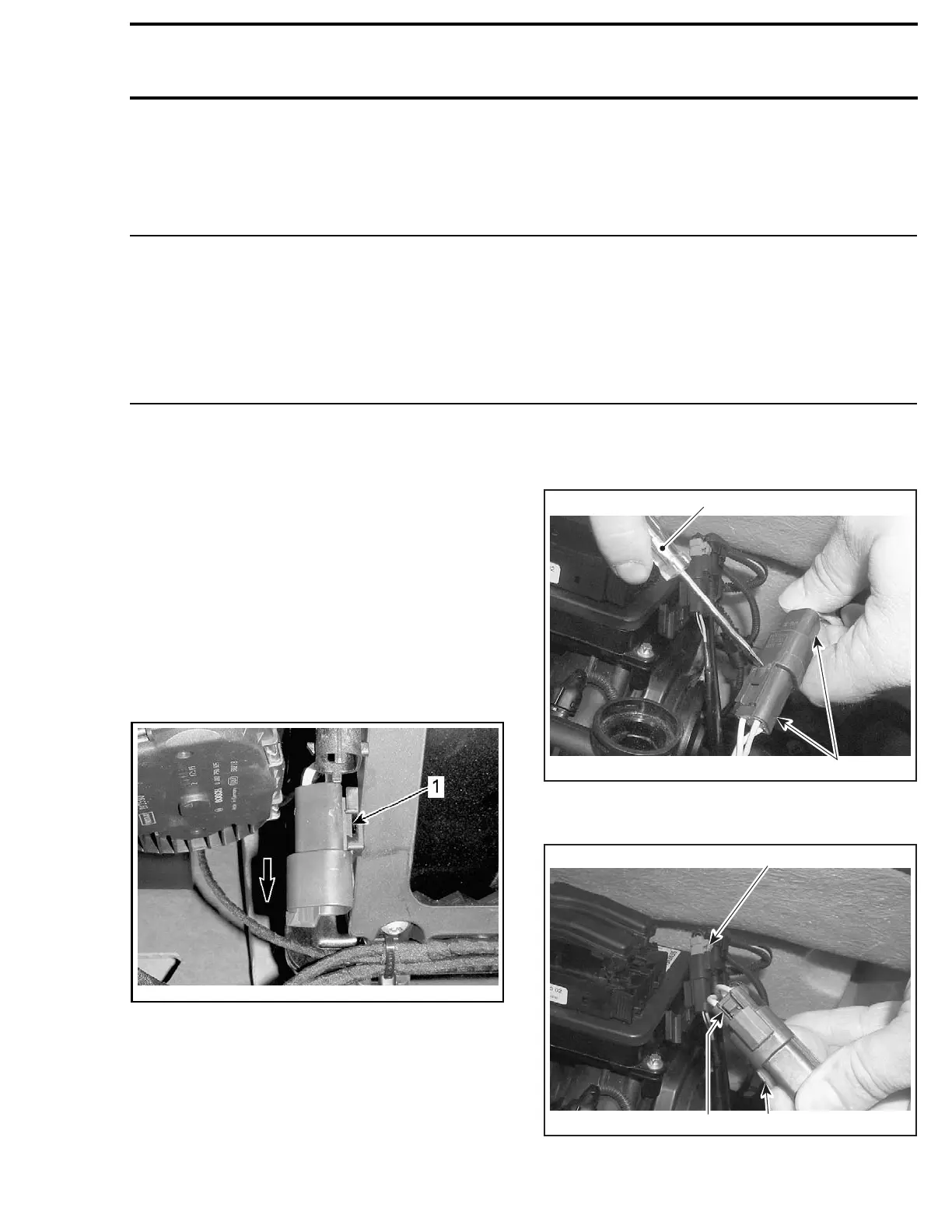

Connector Removal from its Support
Magneto Connector
Insert a small flat screwdriver between the sup-
port and the Deutsch connectors. Pry while slid-
ing out connectors in the direction shown.
smr2009-045-009_a
MALE CONNECTOR REMOVED FOR CLARITY PURPOSE
1. Insert screwdriver here
To disconnect the Deutsch connectors, twist a
small flat screwdriver between each housing to
disengage, press the release button and discon-
nect them.
1
F18Z0LA
2
TYPICAL
1. Flat screwdriver
2. Deutsch connectors
2
F18Z0MA
2
1
TYPICAL
1. Release
2. Deutsch connectors
smr2009-044 519
