Section 05 ELECTRICAL SYSTEM
Subsection 04 (CHARGING SYSTEM)

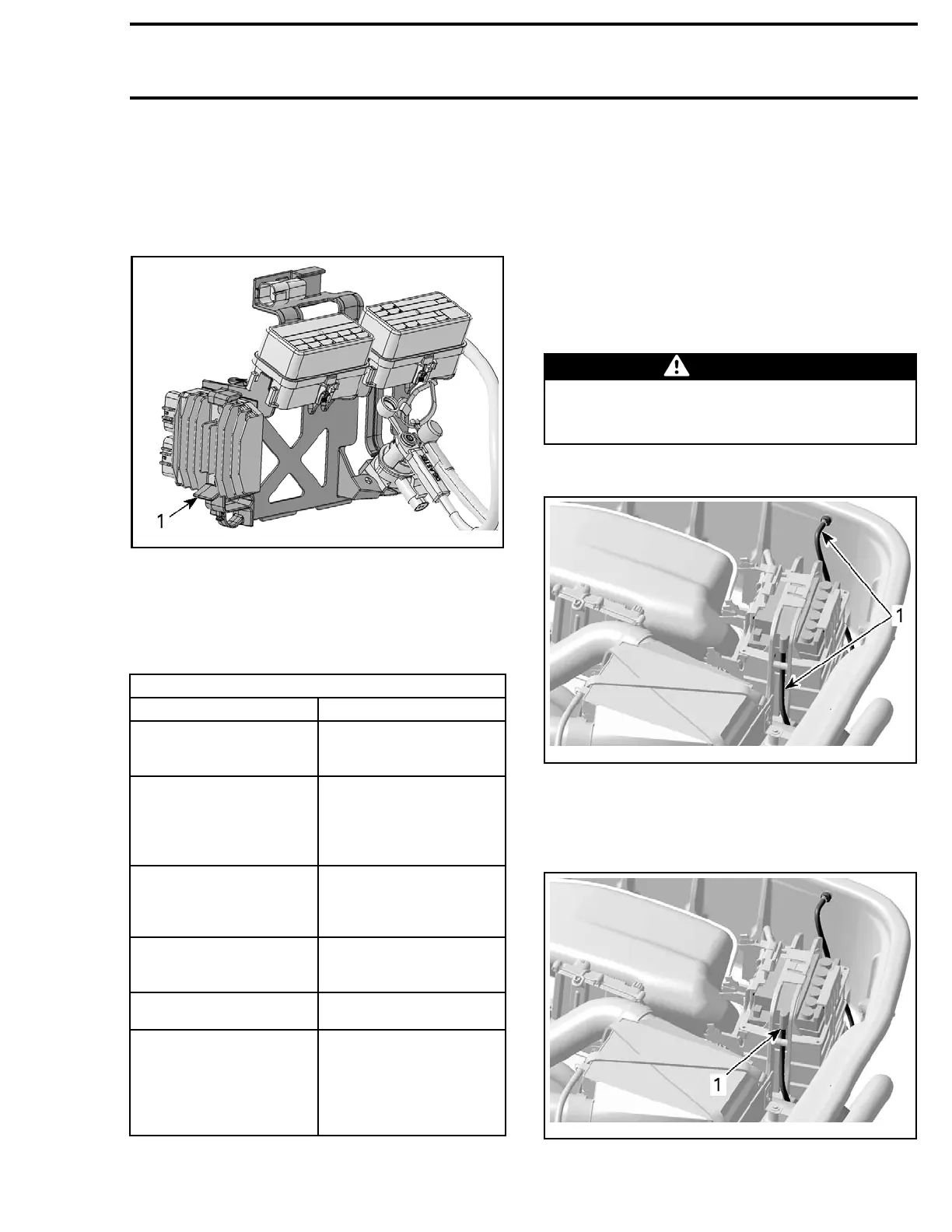

Voltage Regulator/Rectifier Installation
Installation is the reverse of removal procedure.
However, pay attention to the following.
Lock voltage regulator/rectifier in position. Wiggle
it to make sure it is safely locked.
smr2009-033-006_b
1. Locked he
re
Reinstall remaining removed components.
BATTERY
Troubleshooting
SYMPTOM: DISCHARGED OR WEAK BATTERY
CAUSE REMEDY
Battery posts and/or cable
terminal oxidized.
Clean battery terminals,
posts, an
dcoatwith
dielectric grease.
Loose or bad
connections.
Check for wiring and
connector tightness,
frayed o
rbrokenwires.
Repair or replace cables
or connectors.
Faulty battery (sulfated,
fretti
ng, shorted plates
or cell, damaged casing,
loose post).
Replace battery.
Burnt fuse(s) or faulty
rectifier.
First check fuse(s). If in
good c
ondition, check
voltage regulator/rectifier.
Fault
ystator.
Test stator and replace as
required.
Parasitic or “Key Off”
current loads.
Isolate, reduce or
elim
inate such loads,
recharge battery as
recommended if vehicle
is no
t used for extended
periods of time.
NOTE: “Key Off” or parasitic loads may be loads
due to installed accessories. Parasitic loads may
also be due to water infiltration in connectors, or
partial short circuits that slowly drain a battery
without causing a fuse to burn.
NOTE: A battery that continually necessitates the
addition of distilled water indicates an over voltage
situation. Carry out a
CHARGING SYSTEM VOLT-
AGE TEST
.
Battery Vent and Check Valve
WARNING
Battery caps do not have vent holes. Ensure
vent line is not obstructed and check valve is
functioning properly.
Check vent line condition.
smr2009
-033-009_b
1. Vent line
Make sure that grommet of check valve is not
plugged.
Disconnect vent hose from battery.
smr2009-033-009_a
1. Disconnect here
smr2009-033 301
